Specification
Brand : MAXZIQF
BulletPoint1 : Can support AC and DC input. Non-existent power supply polarity problems for 12 v-110 vac / 15-160 vc300 for brushless motor controller
BulletPoint2 : Can support AC and DC input. Non-existent power supply polarity problems for 12 v-110 vac / 15-160 vc300
BulletPoint3 : Can support AC and DC input. Non-existent power supply polarity problems
BulletPoint4 : Ultra-high voltage scope, support 15-160VDC Input, support 12-110VAC input
BulletPoint5 : Large heat sink with mounting holes
Color : G062 1KW
ExternallyAssignedProductIdentifier1 : 765613722793
ExternallyAssignedProductIdentifier2 : 0765613722793

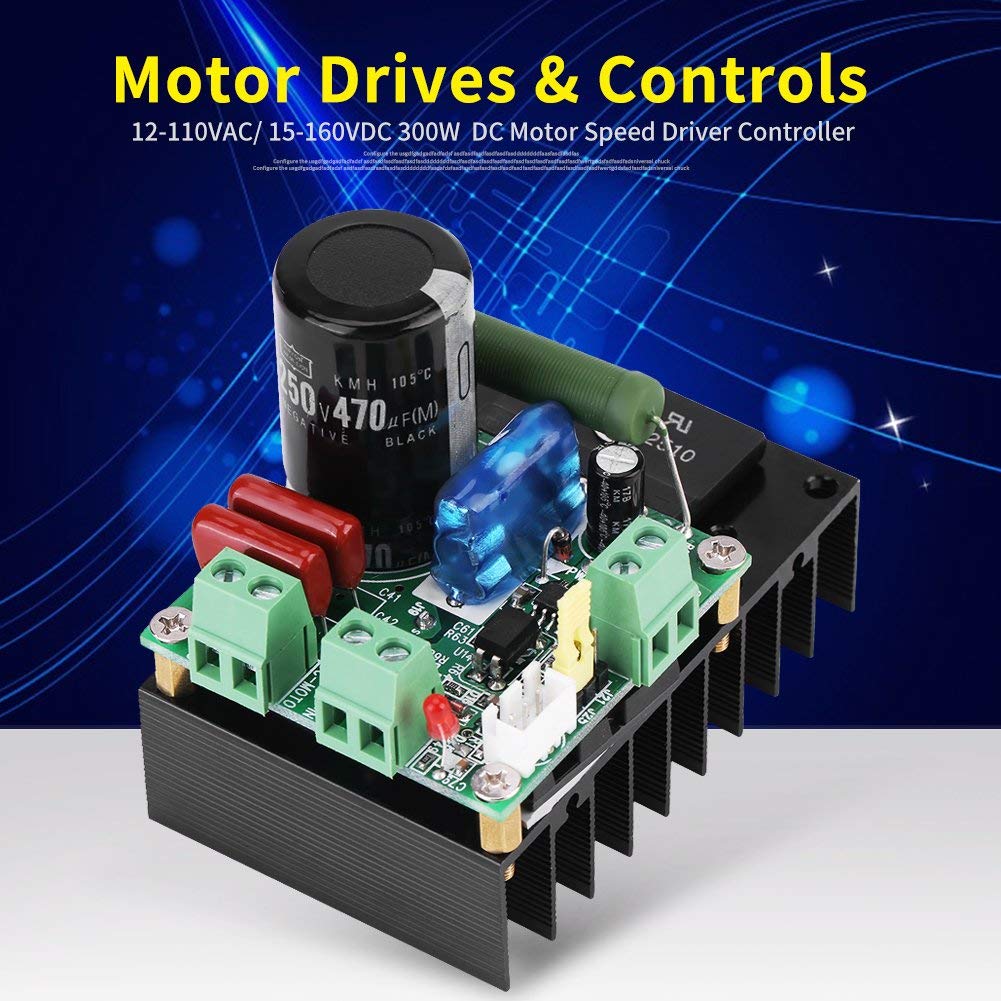

ItemName : Riuty DC Brushless Motor Controller, 15-160V DC 12-110V AC 5A Motor Regulator Control Module High Power Motor Controller Driver Board for 12 v-110v ac /15-160 vc
ItemPackageDimensions_Height : 16.002 centimeters
ItemPackageDimensions_Length : 6.2992 centimeters
ItemPackageDimensions_Width : 11.7094 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Riuty
Material : Metal
ModelNumber : Riuty09ih1kg4ma
OperatingTemperature : 60 degrees_celsius
PartNumber : Riuty09ih1kg4ma
ProductDescription : Descriptions:
This motor speed controller can support AC and DC input. Non-existent power supply polarity problems.Large heat sink with mounting holes. and with a wide range of support motor. It can be used to control most of the DC motor in the market

Features:
Can support AC and DC input. Non-existent power supply polarity problems. Ultra-high voltage scope, support 15-160VDC Input, support 12-110VAC input. Large heat sink with mounting holes. Ultra-high-power control. support 5A current.
Except the board inside a PWM speed control, can also support an external PWM input speed control, external PWM input requirements: level 3.5-12V VPP, the frequency of 1K-10KHZ, the duty ratio is 0% to 93%.
In particular apply in MCH3 spindle speed control. when with external PLC control, a 2K resistor is used. A wide range of support motor. It can be used to control most of the DC motor in the market. As long as the DC of the motor is > 2 Ohms DC .
The conversion rate is about 97%, and the power of the plate is different when the voltage is different. 160VDC,2A motor load, limit no more than 2W. This drive can't fit for the DC motor that DC is <2 Ohm
When the control board is equipped with DC Motor, following conditions must meet: current<5A, resistance>2R, Voltage <110V Equipped with a fuse protection and better performance. The high power limiting is adopted to reduce the heating of the whole module and improve the working stability.

Specifications:
Voltage input: 15-160VDC ,12-110VAC
Max current:5A current
Weight:135g

ProductSiteLaunchDate : 2019-06-16T07:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111500
Voltage : 110 volts
