Specification
Brand : Kuuleyn
BulletPoint : 5pcs Motor Controller Large Current 50A H-Bridge High-Power Single-Channel Motor Driver Module Uses a Full H-Bridge Driver Module Full-Bridge MOSFET Driver Chip
BulletPoint1 : ➤ N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the boostrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car
BulletPoint2 : ➤ The driver focus on current and efficiency, effectively motor power and battery life.Can withstand high current overload, the maximum current up to 30A
BulletPoint3 : ➤ This drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this feature
BulletPoint4 : ➤ The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components
BulletPoint5 : ➤ Completer two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization
ExternallyAssignedProductIdentifier : 9032654169056
ExternallyAssignedProductIdentifier1 : 0755752723829
ExternallyAssignedProductIdentifier2 : 755752723829
FinishType : Finish
IncludedComponents : inc

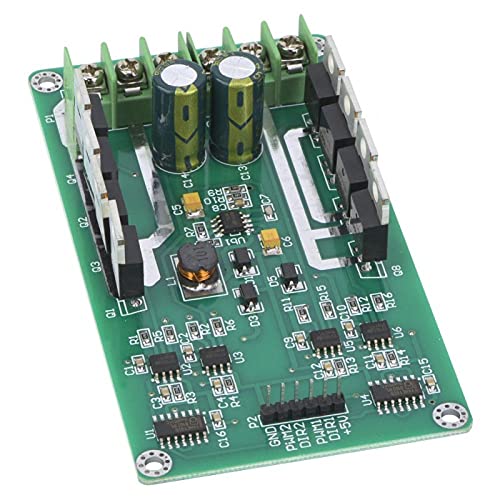

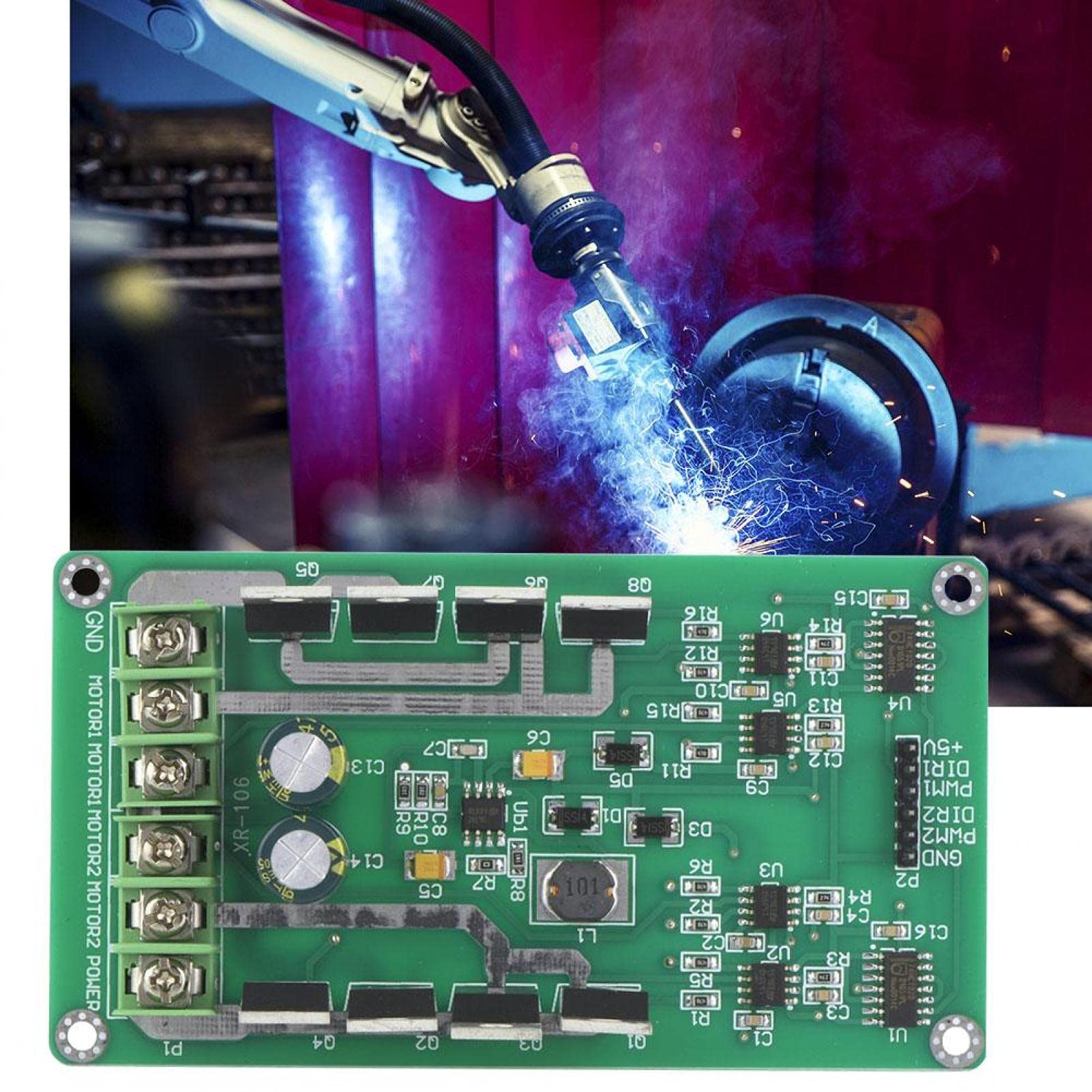

ItemName : Motor Drive Controller Board Module,DC 3-36V Peak 30A Dual Motor Driver Module Board with H-Bridge Driver Chip IRF3205 MOSFET
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Kuuleyn
Material : copper
MemorySlotsAvailable : 1
ModelName : Hilitandv2wn9870mx
ModelNumber : 9957
NumberOfItems : 1
PartNumber : Kuuleynf9e2tamgph
Platform : fly
PowerSourceType : PowerSource
ProductDescription :

Specifications:

Condition:100% Brand New

Motor forward: DIR = 1 PWM = PWM

Motor reversal: DIR = 0 PWM = PWM

Parking brake: DIR = X PWM = 0 (X is an arbitrary state)

Motor and power connections

POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2

Rated voltage: 3v-36v (can be customized according to the user)

Rated Current: 10A

Peak current: 30A

Size: Approx.108*58mm/4.3*2.3in(L*W)

Package List:

1*Dual Motor driver module board H-Bridge DC MOSFET IRF3205 3-36V 10A

ProductSiteLaunchDate : 2021-04-27T10:40:42.737Z
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 3
UnitCount : 1
UnspscCode : 43201513
