Specification
Brand : MECCANIXITY

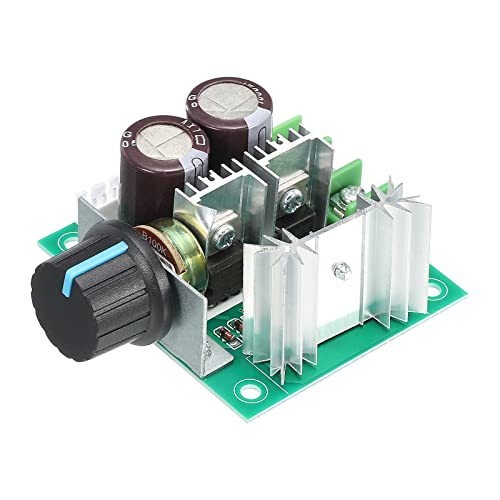

BulletPoint1 : The universal DC motor speed controller is suitable for DC 12V-40V 10A pulse width modulation. It can easily provide a continuous current of 10A to your DC motor or other DC load. Effective to use for speed adjustment.

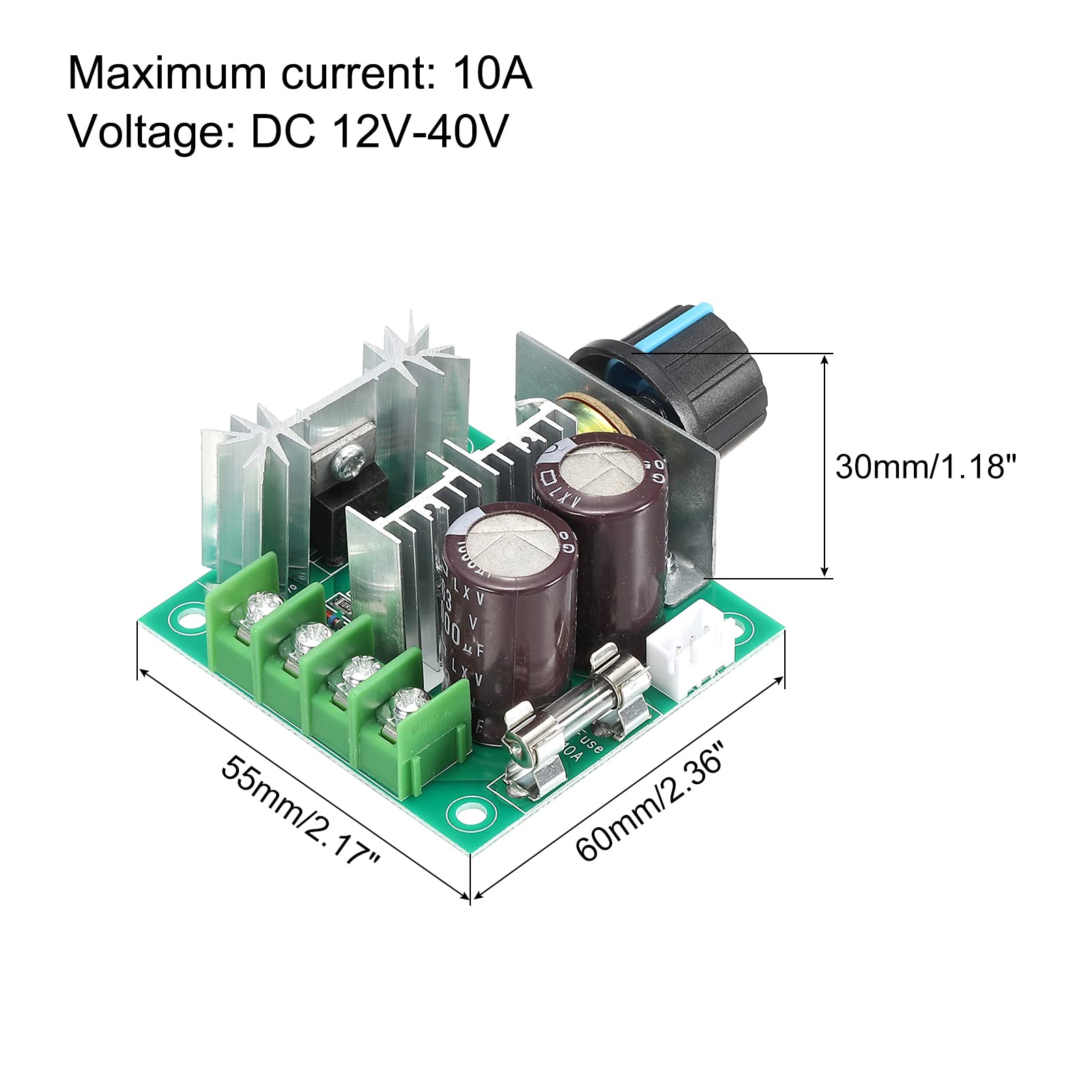

BulletPoint2 : Overall Dimensions: 60x55x30mm/2.36x2.17x1.18 inch(L*W*H); Voltage: DC 12V-40V; Maximum current: 10A; Potentiometer resistance: B100K; In the package of: 2 x DC motor speed controllers.
BulletPoint3 : Technology is extremely high efficiency, torque, small heating, has been upgraded for many times and widely used in industrial production.
BulletPoint4 : Adjust potentiometer knob can change speed output duty cycle, motor speed change wiring, the line must not touch heat sink. Potentiometer clockwise, the bigger the value.
BulletPoint5 : Do not exceed the rated voltage of the input voltage. Do not overload the output.
ItemName : MECCANIXITY DC 12V-40V 10A, Universal DC Motor Speed Controller, Pulse Width Modulation Regulator Pack of 2
ItemPackageDimensions_Height : 1.57 inches
ItemPackageDimensions_Length : 5.91 inches
ItemPackageDimensions_Width : 3.94 inches
ItemTypeKeyword : motor-speed-controllers
Manufacturer : MECCANIXITY
Material : Copper
ModelNumber : mea220303ee0174
NumberOfItems : 2
PartNumber : mea220303ee0174
ProductDescription : What is this?
The universal DC motor speed controller is suitable for DC 12V-40V 10A PWM. It can easily provide a continuous current of 10A to your DC motor or other DC load. Effective to use for speed adjustment.

What will I get?
Overall Dimensions: 60x55x30mm/2.36x2.17x1.18 inch(L*W*H);
Voltage: DC 12V-40V;
Maximum current: 10A;
Potentiometer resistance: B100K;
In the package of: 2 x DC motor speed controllers.

Are there any advantages of the product?
Technology is extremely high efficiency, torque, small heating, has been upgraded for many times and widely used in industrial production.

How to use it?
1. DC + (Power +): can be connected to a DC Power supply 12-40 v
2. DC - (Power): connect the negative DC Power supply
3. Motor +: connect the positive control Motor
4. Motor -: connect the negative control Motor
Adjust potentiometer knob can change speed output duty cycle, motor speed change wiring, the line must not touch heat sink. Potentiometer clockwise, the bigger the value.

What should I notice?
Do not exceed the rated voltage of the input voltage. Do not overload the output.
