Specification
Brand : Jeanoko
BulletPoint1 : Long Delay Time - The motor controller board has Number of Cycles: No cycle, 2-99 cycles, Cycle forever.Three Indicator Lights: Forward indicator light, reverse indicator light, stop indicator light
BulletPoint2 : Various Input Trigger Modes - The 30A 12V motor controller has two input trigger modes, low pulse trigger mode, low level trigger mode. And there are three input control ports: forward control, reverse control and stop control
BulletPoint3 : Advance Model - Through reasonable settings, many kinds of control functions can be derived. And the motor forward/reverse controller module has low pulse control mode making it more convenient to use
BulletPoint4 : Advantage - This is a 30A multi-function DC / AC motor forward and reverse controller. It has multiple control methods, high efficiency and stable performance
BulletPoint5 : Good Workmanship Circuit Board: The motor controller is made of FR-4 PCB board, aluminum electrolyte capacitor, high concentration tin, SMT components, high power transistor
ExternallyAssignedProductIdentifier1 : 0783335104543
ExternallyAssignedProductIdentifier2 : 783335104543
ItemName : Jeanoko 30A 12V Motor Controller Motor Forward/Reverse Controller Module Start-Stop Delay Limit Switch Relay Motor Driver
ItemPackageDimensions_Height : 14.9 centimeters
ItemPackageDimensions_Length : 5.4 centimeters
ItemPackageDimensions_Width : 8.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Jeanoko
Material : Metal
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
OperatingVoltage : 12 volts
PartNumber : ASIN
ProductDescription :

Specification:

Condition: 100% Brand New
Item Type: Motor Controller
Material: Metal
Color: As Pictures Shown
Working Voltage: DC 12V
Working Current: (Normal mode) standby current 22mA, working current 109mA;
(Energy saving mode) Standby current 7mA, working current 76mA.
There are three input control ports: forward control, reverse control and stop control.
Two input trigger modes, low pulse trigger mode, low level trigger mode
Delay Time: 0.1-999.9s, 1-9999s, 1-9999 minutes.
Number of Cycles: No cycle, 2-99 cycles, Cycle forever.Three Indicator Lights: Forward indicator light, reverse indicator light, stop indicator light.
6 functional modes
Relay Load Current: 30A 250VAC / 30VDC
Size: Approx. 97.5 x 56 x 24mm / 3.8 x 2.2 x 0.9in

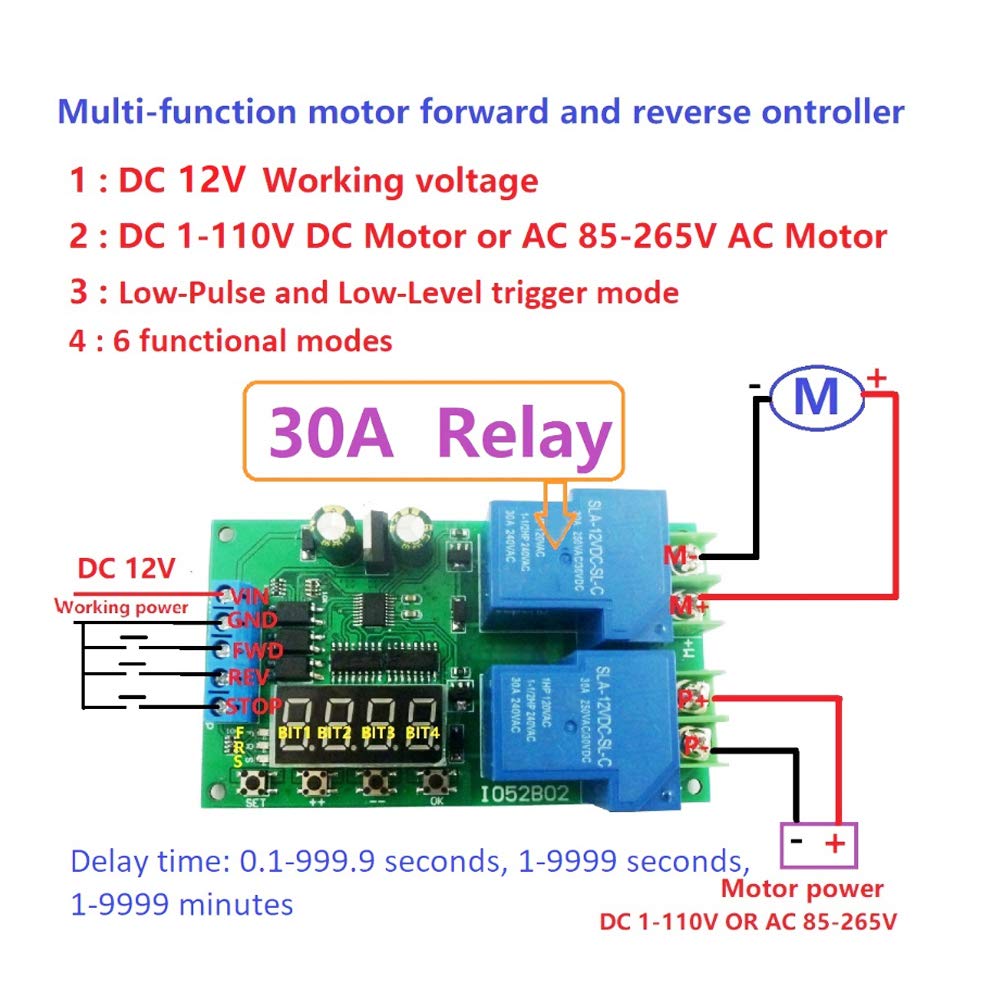

Port:
VIN: Positive power supply, DC 12V power supply
GND: Negative power supply
FWD: Forward rotation input control (some function modes are invalid)
: Reverse input control (some function modes are invalid)
STOP: Stop input control (some function modes are invalid)
M +: Motor positive
M-: Motor negative
P +: Positive pole of motor power supply
P-: Negative pole of motor power supply



Package List:

1 x Forward/Reverse Controller Module

ProductSiteLaunchDate : 2021-03-19T09:32:54.040Z
Speed : 250 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 39122300
Voltage1 : 110 volts
Voltage2 : 30 volts
