Specification
Brand : EVTSCAN
BulletPoint : ZK-PP2K PWM Signal Generator 3.3-30V 8A 12V 24V 1Hz-150KHz Motor Speed Controller Regulator LED Dimmer Adjustable
BulletPoint1 : The angle at which the potentiometer deviates from the midpoint is the speed of the motor. That is, the larger the deviation angle is, the faster the speed is, and the midpoint is stopped when it is adjusted.
BulletPoint2 : The product is equipped with a joystick potentiometer,which makes speed controller stop when at midpoint.
BulletPoint3 : The motor can be wired without distinguishing positive or negative. When the running direction is inconsistent with the expected direction, the running direction can be changed by adjusting the line.
BulletPoint4 : PWM speed controller,small effected by noise.
BulletPoint5 : Integrated with overcurrent protection,can protect the controller and motor well.
ExternallyAssignedProductIdentifier : 4862440117870
ExternallyAssignedProductIdentifier1 : 0826771025062
ExternallyAssignedProductIdentifier2 : 826771025062
GpsrSafetyAttestation : 1
Horsepower : 25 watts

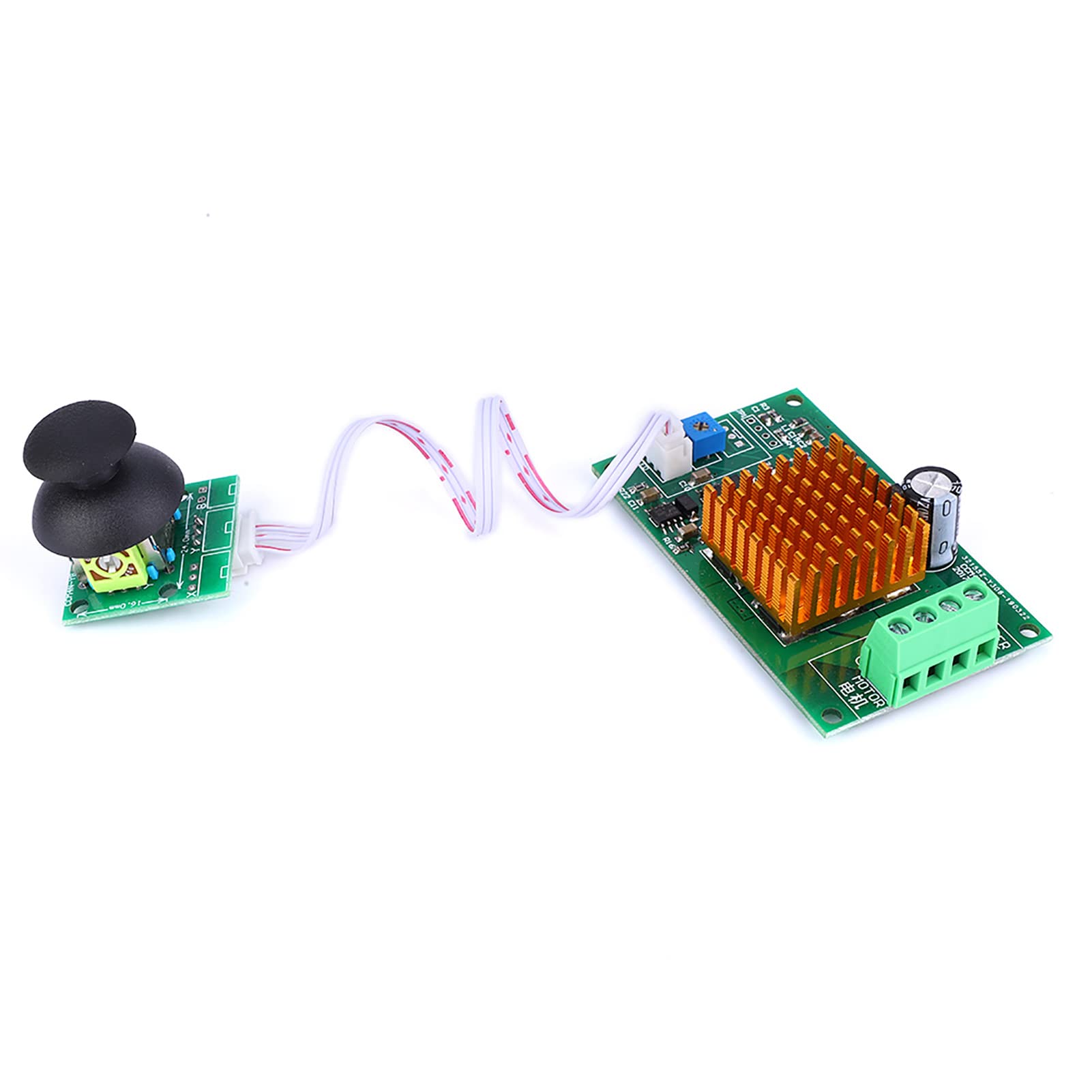

ItemName : CCM4N DC12~30V Motor Controller Joystick CW/CCW Motor Speed Regulator with Overcurrent Protection 3A (CCM4N)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : EVTSCAN
Material : Copper
ModelNumber : 150-C108NBR--HW
OutputWattage : 1000
PartNumber : EVTSCAN1c9yd53gpv-11
ProductDescription :

Specification: Item Type:Motor Speed Controller
Input Voltage: DC 12-30V
Rated Current: 3A
Maximum Current: 6A (With Hall Current Detection Chip, Stop Output When The Instantaneous Top Value Is Greater Than 6.4A)
Speed Range: 0%-100%
Applicable Power: Within 12V50W, Within 24V100W
Package List: 1 x Module
Note: 1. DC motor governor input is DC, not directly connected to AC power, otherwise it will burn out
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
3. The motor can be wired randomly without distinguish positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by the line adjustment sequence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
ProductSiteLaunchDate : 2021-11-30T10:42:08.787Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26111500
Voltage : 5 volts
