Specification
Brand : Agatige
BulletPoint1 : WIDE FREQUENCY RANGE: The speed regulator of Generator Control Panel has a wide frequency range and a maximum current output of 15A, a minimum current output of 0.5A, 12 or 24V DC battery systems, transient and reverse voltage protected
BulletPoint2 : STURDY AND STRONG MATERIALS: Brushless motor controller is made of sturdy and strong materials, moisture-proof, anti-vibration, and good oxidation resistance, with excellent resistance to conductivity, and high voltage for outstanding safety performance
BulletPoint3 : FAST AND ACCURATE: This electronic engine control for instantload changes, can control the engine speed with a fast and accurate response, when connected to the match and the implementation of e-speed magnetic sensor signals can be Control of a wide range of engines
BulletPoint4 : REMOTE CONTROL DESIGN: Engine speed controller comes with engine idle speed setting function, and equipped with control terminals for remote control, is a closed-loop control of the entire electronic design, can withstand the surrounding area within the range of electromagnetic interference
BulletPoint5 : SCOPE OF APPLICABLE: Speed controller can be applied to steam, diesel and natural gas engines with high sensitivity and small speed changes, auxiliary or multiple specialized machine inputs for transmission rate and adjustable idle to avoid battery reverse voltage, transient voltage pulses, etc
Color : As Shown
ConnectivityProtocol : X-10
ExternallyAssignedProductIdentifier1 : 0024822099264
ExternallyAssignedProductIdentifier2 : 024822099264
IncludedComponents : No

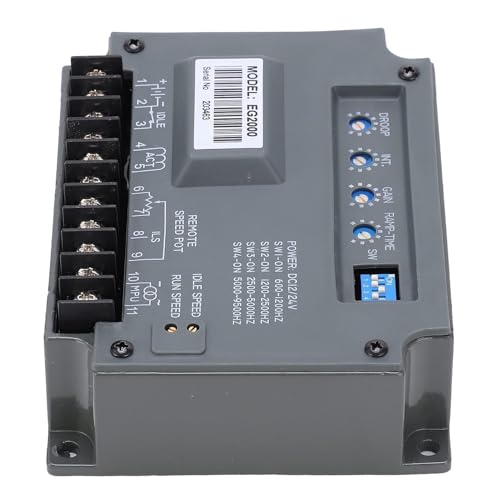

ItemName : Agatige EG2000 12V 24V Generator Control Panel, Electronic Engine Speed Controller Governor Diesel Generator Engine Speed Controller Genset Parts for Generator
ItemPackageDimensions_Height : 17.4 centimeters
ItemPackageDimensions_Length : 6.3 centimeters
ItemPackageDimensions_Width : 12.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Agatige
Material : Copper
ModelName : Jectseusdar2nkqc
ModelNumber : KBWA-22D
NumberOfItems : 1
OperatingTemperature : 60 degrees_celsius
PartNumber : Agatigekbr1fda9gi
ProductDescription : Specification:


Item Type: Engine Speed Controller
Working Voltage: 12/24VDC
Output Current: Minimum 0.5A maximum 15A
Operating Frequency Range: 600-9500Hz (MPU speed sensor signal)
Idle Frequency Range: 30-85% of operating frequency (adjustable)
Sensitivity: When the load is stable, the speed variation range is less than ±0.25%
Temperature Difference Stability: No more than ±0.5% between -40-+85℃
Remote Speed Adjustment Range (2 Groups): About ±5% adjustment range when using 5KΩ potentiometer
Speed Rise Time: 3-20 seconds (adjustable)
Operating Temperature: -40-+85℃
Storage Temperature: -40-+85℃
Relative Humidity: 95% or less
Vibration: 3G at 100Hz-2KHz
Parameter Adjustment Potentiometer:
DROOP: Adjust the rate of speed drop
GAIN: Adjust
ACT output gain loop
INT.: Integral loop stability adjustment
RAMP-TIME: Speed rise time
SPEED: Speed adjustment
IDLE: Idle speed with line
DIP Switch Description:
SW1: ON 600-1200 Hz
SW2: ON 1200-2500 Hz
SW3: ON 2500-5000 Hz
SW4: ON 5000-9500 Hz



Package List:1 x Engine Speed Controller 1 x User Manual
ProductSiteLaunchDate : 2022-11-15T02:51:21.569Z
Size : 79*43*26mm
Speed : 100 KHz
Style : Manual
SupplierDeclaredDgHzRegulation : other
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111500
Voltage : 26 volts
