Specification
Brand : Hilitand
BulletPoint1 : Simple Control Platform: Combine this controller with a stepper driver, motor, and dc power supply for an easy setup.
BulletPoint2 : Good Material: This stepping motor made of plastic, compact in size (38.6 x 58mm), ensuring long-lasting performance.
BulletPoint3 : High-speed Pulse Generation: Provide precise signals for stepper drivers, essential for controlling stepper motors effectively.
BulletPoint4 : Wide Frequency Range: Operates at high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz frequencies for versatile use.
BulletPoint5 : Versatile Port Functions: This stepping motor features pul and common cathode/anode ports, allowing flexible connections for different setups.
IncludedComponents : No

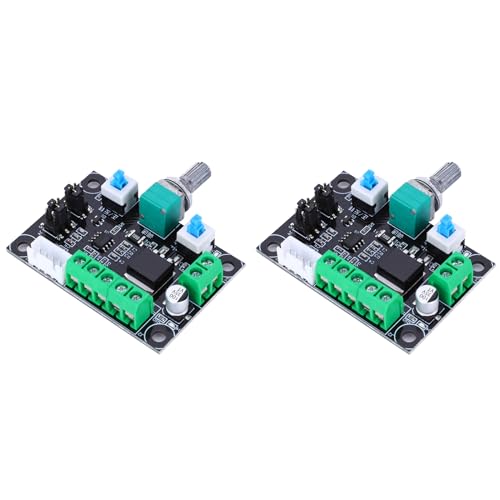

ItemName : 2PCS Stepper Motor Drive Controller DC Power Supply Signal Generator Pulse Measurement 160khz Frequency with Common Anode Cathode Port
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemTypeKeyword : motor-speed-controllers
Manufacturer : Hilitand
ModelName : Hilitand5aoxwtdg0s
ModelNumber : Hilitand5aoxwtdg0s
NumberOfItems : 1
PartNumber : Hilitand5aoxwtdg0s
PowerSourceType : ac/dc
ProductDescription : Specification:
Item Type: Stepping Motor Drive Controller
Material: Plastic
Size: Approx. 38.6 x 58 mm / 1.5 x 2.3 in
Different stepper motor drive port have different labels but the same function:
EN=ENA= enable
PUL=PULS=CLK pulse
DIR=CW=CWW direction
Common anode connection (connection B)
EN+ PUL+ DIR+ connected together to the common anode
EN- connects to EN
PUL- connects to CLK
DIR- connects to DIR
Common cathode connection (connection B)
EN- PUL- DIR- connected together to the common cathode
EN+ connects to EN
PUL+ connects to CLK
DIR+ connects to DIR

PackageList:
2 x Control Board
2 x Gasket
2 x Nut
ProductSiteLaunchDate : 2024-10-10T15:23:43.158Z
Size : 24V5 turn
Style : 15W
UnitCount : 1
