Specification
Brand : GalaxyElec
BulletPoint1 : BUNDLE CONTENT: 3 ITEMS – One (1) 30A 3 Pole Normally Open (NO) Contactor with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts; one (1) 7 Days, 24 Hours Programmable Timer and one (1) compatible Slotted Steel Zinc Plated 35mm x 150mm DIN Rail for immediate installation
BulletPoint2 : CONTACTOR APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans
BulletPoint3 : COIL VOLTAGE AND LOAD – Contactor IEC 660V. Coil Voltage 110/120VAC, 50/60 Hz; Coil load Inrush 70VA, Sealed 7.5VA. Inductive/Motor Load: 32Amp, Resistive/Incandescent Load: 50Amp. Compatible with 30 Amp, 32 Amp, 40 Amp and 50 Amp loads. Power Lug Terminal Capacity AWG # 4
BulletPoint4 : PROGRAMMABLE TIMER – 24/7 Electronic Programmable Timer with to-the-minute accuracy for more control. Digital time switch that features MAN-AUTO-OFF programmable timer mode, 3 year backup memory, 16 separate ON/OFF programmable settings and integrated battery backup. (Please, refer to product documentation below for operating instructions and details)
BulletPoint5 : DIN RAIL – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 34.9mm (1.375”) length 150mm (6") and thickness 5mm (0.2”)
ExternallyAssignedProductIdentifier : 5302611311168
ExternallyAssignedProductIdentifier1 : 0638455159990
ExternallyAssignedProductIdentifier2 : 638455159990
IncludedComponents : Replacement Part
ItemDisplayDimensions_Height : 3 inches
ItemDisplayDimensions_Length : 4 inches
ItemDisplayDimensions_Width : 2.5 inches
ItemDisplayWeight : 1.04 pounds

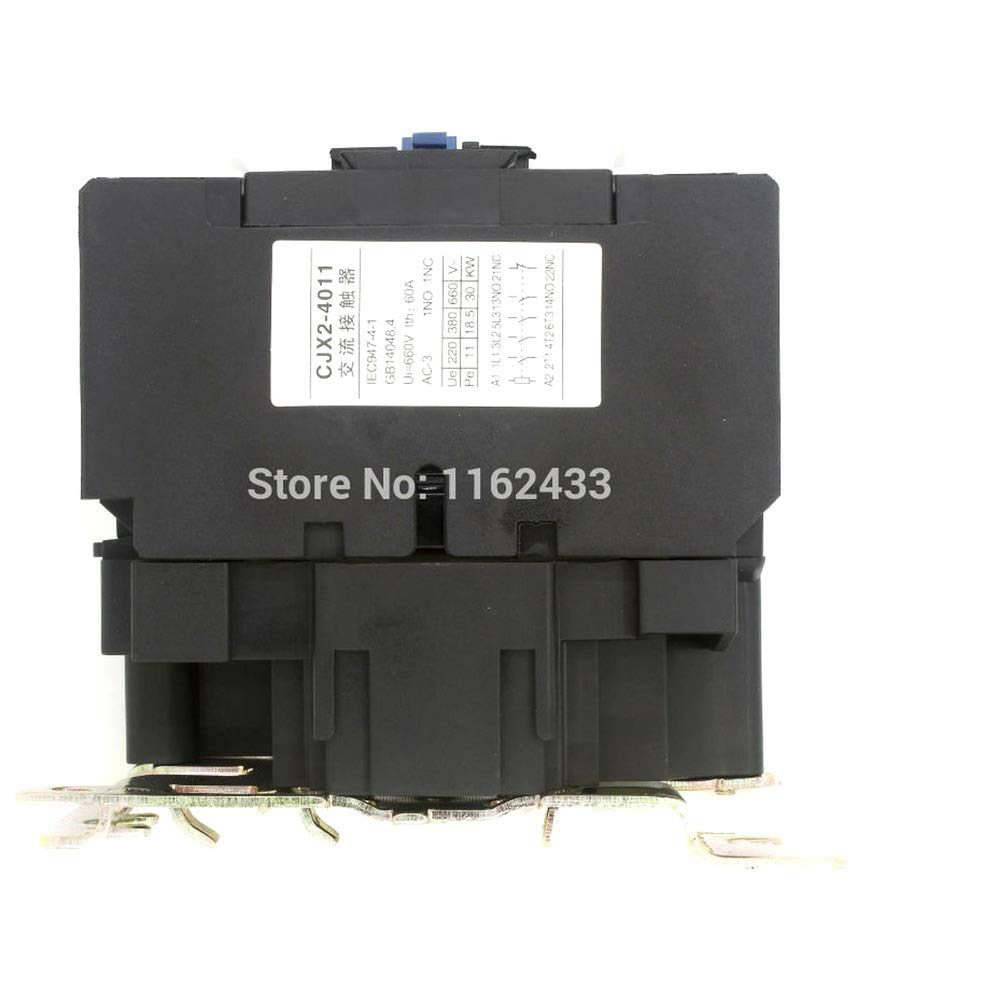

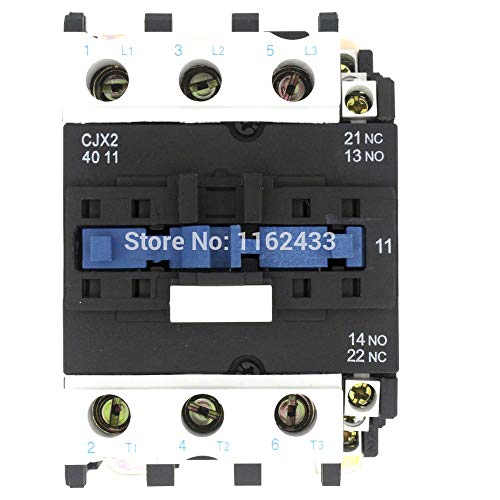

ItemName : CJX2-4011 40A AC 36V 3P NO + NC contactor CJX2-40 LC1-D40 Series 36VAC AC contactor
ItemPackageDimensions_Height : 18.288 centimeters
ItemPackageDimensions_Length : 9.144 centimeters
ItemPackageDimensions_Width : 14.224 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : motor-contactors
Manufacturer : GalaxyElec
Material : Copper
MaximumSwitchingVoltage : 230 volts
ModelNumber : 21245
NumberOfBoxes : 1
NumberOfItems : 2
OperationMode : Automatic
PartNumber : GEPluga_11541
PhaseType : 3p
ProductDescription : Coil voltage (3P+NO+NC):220, 380, 110, 48, 36, 24VAC380VAC110VAC48VAC36VAC24VACCJX2 (LC1-D) series AC contactorfinglaiModel number and parametersModel numberCJX2-09CJX2-12CJX2-18CJX2-25CJX2-32CJX2-40CJX2-50CJX2-65CJX2-80CJX2-95Same model numberLC1-D09LC1-D12LC1-D18LC1-D25LC1-D32LC1-D40LC1-D50LC1-D65LC1-D80LC1-D95Related productOrderOrderOrderOrderOrderVisiting...OrderOrderOrderOrderRated operational Current (AC-3) (A) at 380V9121825324050658095Rated operational Current (AC-3) (A) at 660V6.68.91218213439424955Rated thermal current (A)2020324050608080125125Maximum power (KW) at 220V2.2345.57.5111518.52225Maximum power (KW) at 380V45.57.5111518.522303745Maximum power (KW) at 660V5.57.591518.53033374555Mechanical life 104(ops)1000100010001000800800800800600600AC3 electrical life 104(ops)100100100100808060606060Maximum AC3 operations for 1 hour1200120012001200600600600600600600AC4 electrical life 104(ops)20202020201515151010Maximum AC4 operations for 1 hour300300300300300300300300300300Pick up (VA)707070110110220220220220220Sealed (VA)88811112020202020Matched fuseNT00-20NT00-20NT00-32NT00-40NT00-50NT00-63NT00-80NT00-80NT00-100NT00-125Cabling capacity-1 flexible wire size (mm2)2.52.54461016255050Cabling capacity-1 solid or stranded wire size (mm2)4466101625255050Cabling capacity-2 flexible wire size (mm2)2.52.54461016252525Cabling capacity-2 solid or stranded wire size (mm2)446610-----finglaiGeneralModel numberCJX2 (LC1-D) seriesRated coil voltage24, 36, 48, 110, 220, 380VacPick up voltage0.85 to 1.10UsDrop out voltage0.2 to 0.75UsRated operational voltage380V/660VRated Insulating voltage660VNumber of poles<40A: 3P+NO / 3P+NC; ≥40A: 3P+NO+NCOperating frequency limits50/60HzAuxiliary contacts rated thermal current10AAuxiliary contact electrical life (AC-15,360VA) (OPS)1x104Auxiliary contact electrical life (DC-13,33W) (OPS)1x104Auxiliary contact min. available load6V 10mAOperating altitude2000m maxOperating position (relative to normal mounting position)±
ProductSiteLaunchDate : 2019-09-22T18:10:37.313Z
Style : 4 Poles + Rail
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 39121400
Voltage : 24 volts
