Specification
Brand : ATO.COM
BulletPoint1 : Coil Rated Voltage: 12V, Contact Circuit Rated Load Current: 50A, Contact Form: 2NO and 2NC
BulletPoint2 : Made of high-quality stainless steel with heat resistance and aging resistance
BulletPoint3 : Long service life, mechanical Life: 300 thousand times, electric Life Continuous: 30000 times
BulletPoint4 : Widely used in auto electric winch, telecommunication equiment, engineering machinery and other electric control system
BulletPoint5 : Customer priority: If you have any issue about the product, please don't hesitate to email us. We will answer you winth 12h
CurrentRating : 50 amps
ExternallyAssignedProductIdentifier : 4802813351289
ExternallyAssignedProductIdentifier1 : 0783902770270
ExternallyAssignedProductIdentifier2 : 783902770270

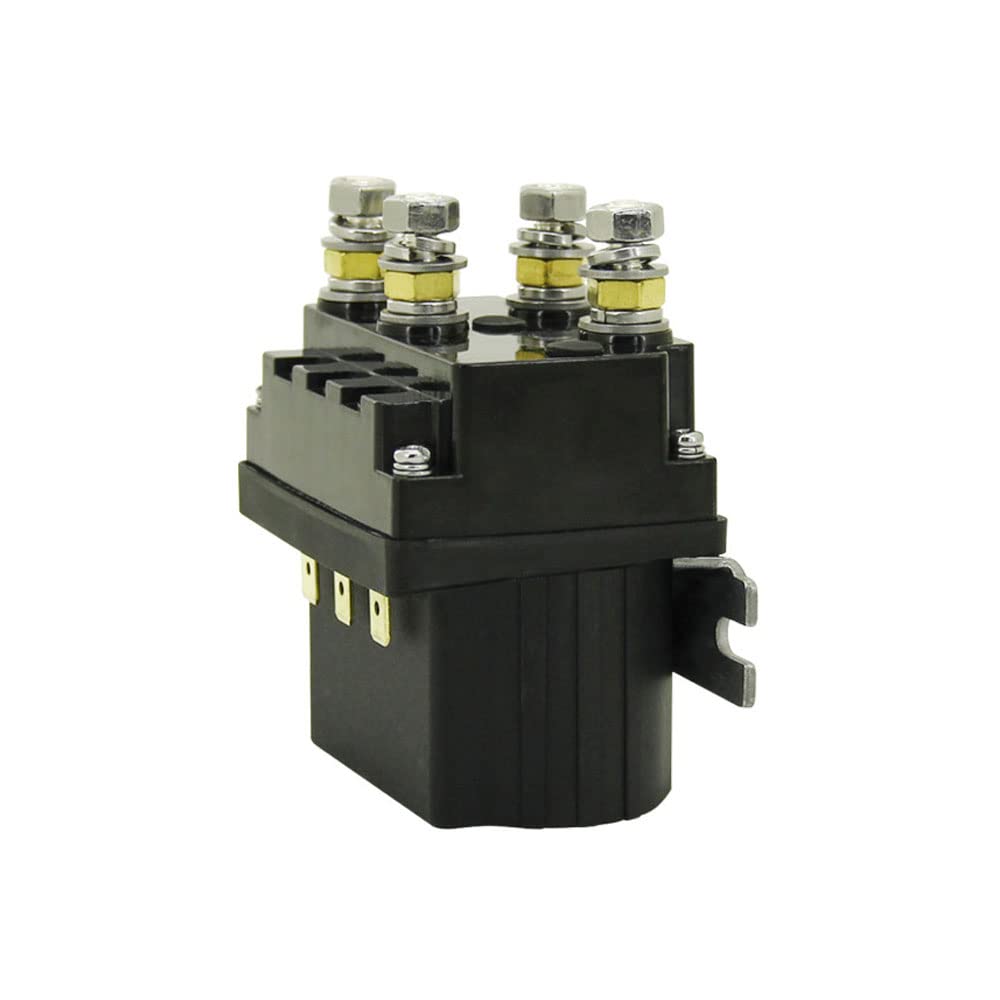

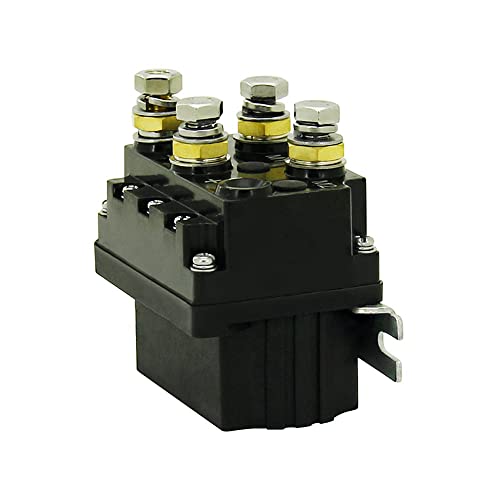

ItemName : ATO Solenoid Relay, 12V 50A Winch Relay Solenoid Replacement Contactor for Auto Electric Winch ATV UTV UT
ItemPackageQuantity : 1
ItemTypeKeyword : motor-contactors
Manufacturer : ATO
Material : cadmium
MaximumSwitchingCurrent : 50 amps
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
OperationMode : Automatic
PartNumber : DCCON-R50
ProductDescription :

ATO two pole DC reversing contacor with 2sets of switching contacts, 2NO and 2NC form, 50 amps rated load current ofcontact circuit, coil rated voltage with 12V/24V/48V DC for selection. Cheapprice and manufacturer direct sale.

ATO ADC50 reversing contactor with 2NO and2NC contact type, coil voltage available in 12 volt, 24 volt, 48 volt. It isused to change the direction of rotation in alternating current motors, startthem gently and to monitor their load. Widely used in auto electric winch,telecommunication equiment, engineering machinery and other electric controlsystem.



Specifications:

Basics :

Model      ATO-ADC50

Body Size 81*52*76mm

Weight     410g



Technical Parameters :

Coil Rated Voltage   12V

Contact Circuit Rated Load Current       50A

Contact Rated Load Voltage   12V~60V DC

Contact Form  2NO and 2NC

Starting Current       ≤4 A

Overload Current     ≤8 le

Coil Power        ≤8 W

Main Contact Voltage Drop at 50A Load        ≤80 mV

The Allowed Range of Coil Voltage ±20%

Pull-In Time (N/O Contacts to Open)      ≤20 ms

Drop-Out Time (N/O Contact to Close)   ≤10 ms

Insulation Resistance     ≥50 MΩ

Dielectric Withstanding Voltage    50Hz/60Hz 1500VAC/Min

Electric Life      Continuous 30000 times

Mechanical Life       300 thousand times



Environment  :

Operating Temperature  -40℃~85℃

Operating Humidity 5~95% RH

ProductSiteLaunchDate : 2020-06-30T06:17:40.692Z
SpecificationMet : Ms
UnspscCode : 39122300
Voltage : 24 volts
Wattage : 8 watts
