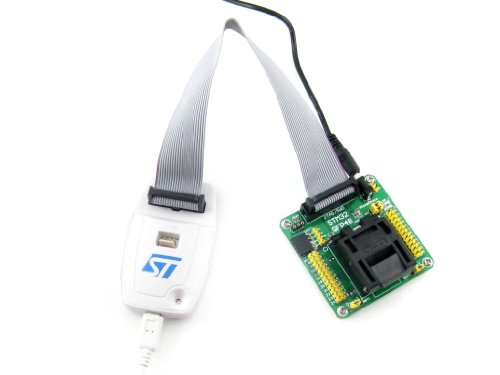

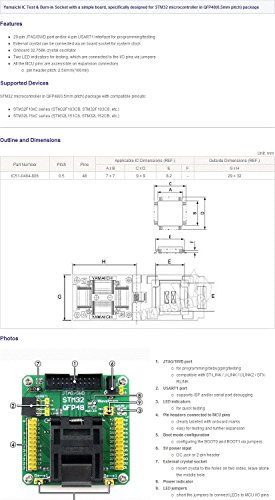

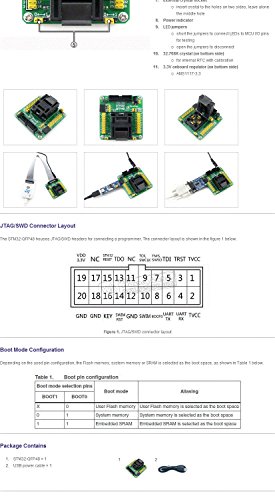

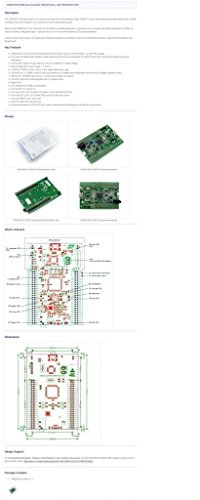

Yamaichi IC Test & Burn-in Socket with a simple board, specifically designed for STM32 microcontroller in QFP48(0.5mm pitch) packageFeatures20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testingExternal crystal can be connected via on board socket for system clockOnboard 32.768K crystal oscillatorTwo LED indicators for testing, which are connected to the I/O pins via jumpersAll the MCU pins are accessible on expansion connectors pin header pitch: 2.54mm(100mil)Supported DevicesSTM32 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts:STM32F10xC series (STM32F103CB, STM32F103C8, etc.)STM32L15xC series (STM32L151C6, STM32L152CB, etc.)Outline and DimensionsUnit: mm Part Number Pitch Pins Applicable IC Dimensions (REF.) Outside Dimensions (REF.) A x B C x D E F G x H IC51-0484-806 0.5 48 7 ¡Á 7 9 ¡Á 9 8.2 - 29 ¡Á 32 PhotosJTAG/SWD port for programming/debugging/testingcompatible with ST-LINK / J-LINK / ULINK2 / STX-RLINKUSART1 port supports ISP and/or serial port debuggingLED indicators for quick testingPin headers connected to MCU pins clearly labeled with onboard markseasy for testing and further expansionBoot mode configuration configuring the BOOT0 and BOOT1 via jumpers5V power input DC jack or 2-pin headerExternal crystal socket insert crystal to the holes on two sides, leave alone the middle hole

Features
1) STM32 MCU in QFP48
2) 0.5mm pitch
3) STM32F10xC, STM32L15xC series
4) JTAG/SWD/USART
5) LED indicators

Specification
Binding : Electronics
Brand : Waveshare-ST
EAN : 0700646945764
Label : WaveShare
Manufacturer : WaveShare
Model : STM32-QFP48
PackageDimensions_Weight : 0.11 pounds
PackageDimensions : L:7.09 X W:3.94 X H:3.54
ProductGroup : PC Accessory
ProductTypeName : COMPUTER_COMPONENT
Publisher : WaveShare
Studio : WaveShare
Title : Waveshare STM32-QFP48 STM32 Programming Adapter Test Socket for LQFP48 Package MCU 0.5mm Pitch
