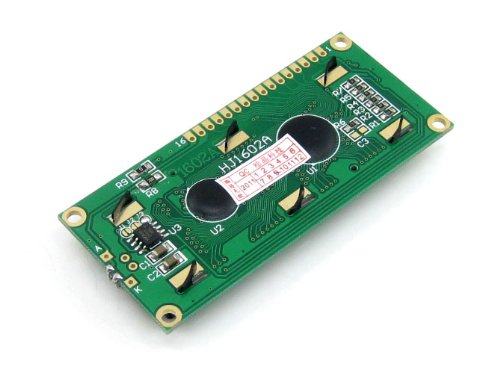

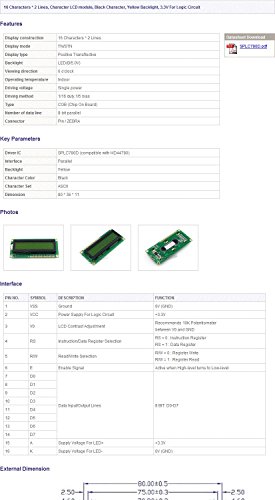

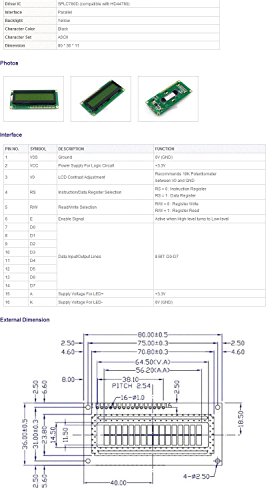

16 Characters * 2 Lines, Character LCD module, Black Character, Yellow Backlight, 3.3V For Logic CircuitFeaturesDatasheet DownloadSPLC780D.pdf Display construction 16 Characters * 2 Lines Display mode TN/STN Display type Positive Transflective Backlight LED(B/5.0V) Viewing direction 6 o'clock Operating temperature Indoor Driving voltage Single power Driving method 1/16 duty,1/5 bias Type COB (Chip On Board) Number of data line 8-bit parallel Connector Pin / ZEBRA Key Parameters Driver IC SPLC780D (compatible with HD44780) Interface Parallel Backlight Yellow Character Color Black Character Set ASCII Dimension 80 * 36 * 11 PhotosInterface PIN NO. SYMBOL DESCRIPTION FUNCTION 1 VSS Ground 0V (GND) 2 VCC Power Supply For Logic Circuit +3.3V 3 V0 LCD Contrast Adjustment Recommends 10K Potentiometer between V0 and GND 4 RS Instruction/Data Register Selection RS = 0 : Instruction Register RS = 1 : Data Register 5 R/W Read/Write Selection R/W = 0 : Register Write R/W = 1 : Register Read 6 E Enable Signal Active when High-level turns to Low-level 7 D0 Data Input/Output Lines 8 BIT: D0-D7 8 D1 9 D2 10 D3 11 D4 12 D5

Features
1) 16 Characters * 2 Lines
2) 3.3V
3) Yellow Backlight
4) Driver IC: SPLC780D
5) Character Set: ASCII
