Specification
Brand : DS18
BulletPoint1 : Exceptional Power Output - With an RMS power rating of up to 5600W, DS18's FRP-5K delivers jaw-dropping power to your car audio system, ensuring every beat hits hard and clear
BulletPoint2 : Efficiency Redefined - Its high-efficiency micro digital design maximizes power output while minimizing energy consumption, providing you with the best performance without draining your vehicle's battery
BulletPoint3 : Underrated Power Output - Despite its compact size, the FRP-5K delivers power beyond its rated specifications, ensuring a thrilling audio experience that surpasses expectations
BulletPoint4 : Versatile Sound Control - Featuring variable full crossover filters, the FRP-5K allows you to fine-tune your sound to perfection, whether you're focusing on bass, mids, or highs, giving you complete control over your audio experience
BulletPoint5 : Peace of Mind Protection - Equipped with power, protection, and clipping LED indicators, the FRP-5K provides real-time feedback on its status, while its comprehensive protection features safeguard both the amplifier and your vehicle from short circuits, thermal issues, DC offset, and high/low voltage, ensuring worry-free enjoyment of your music
Color : Titanium
ExternallyAssignedProductIdentifier : 5438084657523
ExternallyAssignedProductIdentifier1 : 810097264953
ExternallyAssignedProductIdentifier2 : 0810097264953
IncludedComponents : Remote Level Control Knob

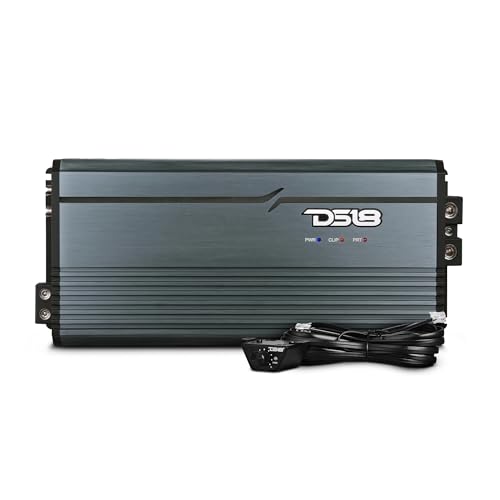

ItemName : DS18 FRP FRP-5K/TI 1-Channel Amplifier 5000 Watts RMS @ 1-Ohm, Certified Dyno, Compact Full-Range Class D, Monoblock Amplifier, Exceptional Efficiency, Remote Level Control Knob, Titanium
ItemPackageDimensions_Height : 43.9928 centimeters
ItemPackageDimensions_Length : 9.1948 centimeters
ItemPackageDimensions_Width : 17.8054 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-mono-subwoofer-amplifiers
Manufacturer : DS18
Material : Metal (aluminum or similar alloy)
MaximumSupplyVoltage : 12 volts
MinimumSupplyVoltage : 8 volts
ModelName : HMD1
ModelNumber : FRP-5K/TI
MountingType : Surface Mount
NumberOfChannels : 1
NumberOfItems : 1
OperatingTemperature : 140 degrees_fahrenheit
OutputPower : 5000 watts
PackageTypeName : box
PartNumber : FRP-5K/TI
ProductDescription :

SPECS

SKU FRP-5K/TI
RMS Power @ 4 ohms 1500W
RMS Power @ 2 ohms 2900W
RMS Power @ 1 ohm 5000W
MAX Power @ 1 ohm (Burst) 5600W

AUDIO

Frequency Response 10Hz-15KHz
Signal to Noise Ratio 83dB
Efficiency @ 4ohm 92%
Damping Factor 90
Input Impedance 10KΩ
Total Harmonic Distortion (THD) 0.5%
Low Level Input Range 400mv-3.6V
High Level Input No
Selectable X-Over Fixed Band-Pass
X-Over Filter Range HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range 0-12dB
Bass Boost Frequency 50Hz
Phase Selector No

FEATURES

Amplifier Class Digital
Amplifier Type Full-Range Monoblock
Number of Channels 1CH
Minimum Impedance 1Ω
Led Indicator Power / Protect / Clipping
Power Input Terminal Size 0GA
Fuse Size (Recommended) 500A
Remote Level Control Yes (Volmeter Optional)
Cooling Fan Yes (Smart Cooling x 2)
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes
Clipping Protection Yes
Body Color / Finish Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications Yes
Stable/Reliable Four Layers Traces PCB Design Yes
Surface Mount Component Technology Yes
Quality Control Verification using Audio Precision Instruments Yes
Tiffany RCA Terminal Yes
LED Clip Indicator Yes
Metal Knobs with Click Steps Yes
Remote Level Control with Clip Indicator Included
Remote Level Control with Clip Indicator and Voltmeter Optional

MEASUREMENT

Overall Length 12.2" / 310mm
Overall Width 5.5" / 140mm
Overall Height 2.36" / 60mm
Heatsink Length 11" / 278mm
Gross Single Unit Weight 3.3kg

ProductSiteLaunchDate : 2024-03-29T14:57:00.174Z
SpecificationMet : Compliant
SpecificationMet1 : FCC
SpecificationMet2 : CE
SpecificationMet3 : RoHS
SpecificationMet4 : WEEE
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 52161547
Voltage : 12 volts
