Specification
Brand : CUTLER HAMMER
BulletPoint : Miniature Circuit Breakers
BulletPoint1 : Circuit Breaker Panels
BulletPoint2 : Ground Fault Circuit Interrupters
BulletPoint3 : Package quantity: 1
BulletPoint4 : Package Dimensions: 11.5" L x 12.0" W x 12.0" H
CircuitBreakerType : Standard
Color : One Color
CurrentRating : 50 amps
ExternallyAssignedProductIdentifier : 9120019422424
ExternallyAssignedProductIdentifier1 : 785901362807
ExternallyAssignedProductIdentifier2 : 0785901362807
ExternallyAssignedProductIdentifier3 : 00785901362807
IncludedComponents : QOB125EPD

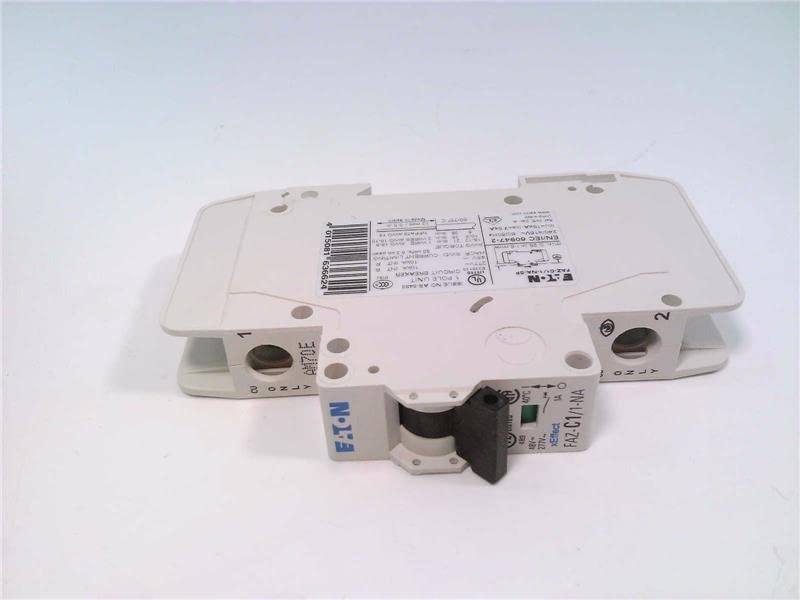

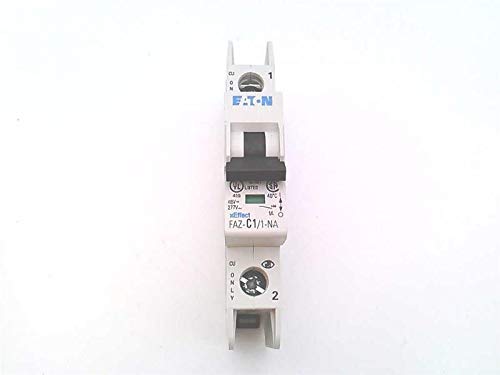

ItemName : CUTLER HAMMER FAZ-C1/1-NA-SP Screw TERMINALS, C Curve, Mini, Circuit Breaker, 1 Pole, Single PKG, 277/480 VAC, 1 AMP
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : miniature-circuit-breakers
Manufacturer : EATON CORPORATION
Material : iron
ModelNumber : FELEA
MountingType : DIN Rail Mount
NumberOfItems : 1
NumberOfPoles : 1
PartNumber : FAZ-C1/1-NA-SP
ProductDescription : Circuit Breaker Panels
Ground Fault Circuit Interrupters
Product Description
Technical dataCurrent rating range:5~30A
Input voltage rating:125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life :1,000 operations at 200% overload1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV Rated impulse withstand voltage 2.5kV Dielectric Strength:>
1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40
Mechanical/Environmental DataOperating Ambient Temperature: -10 to +60
Mounting: Various options. See Ordering Information and drawings
Termination: 250''(6.35mm)quick connects or solder terminals
Calibration(at25)100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip
200% of Rated Current: 5-30 sec Trip
150% ofRated Current: Trip Within 1 Hour
ApprovalApproval & File No Rated current Rated voltage
CUL UL E155159 350A 125250VAC; 50VDC
TUV SUD B15 09 58611 007 3-30A 125/250VAC; 32VDC
CCC 201101030752058 3-30A 125/250VAC.
VDE 40036160 3-16A 125/250VAC
CSA 102199 3-30A 125VAC
Typical applicationsTypical applicationsTarnsforms, Motors, Battery chargers, Power supplies
appliances, extra low voltage systems, machineryappliances, extra low voltage systems, machinery
Related Products
88 series
91 series
92 series
98 series
94N series
ProductSiteLaunchDate : 2016-01-01T00:00:00.000-08:00
Size : 10A
UnitCount : 0.0353
UnspscCode : 39121601
Voltage : 480 volts
