Specification
Brand : WAAZVXS

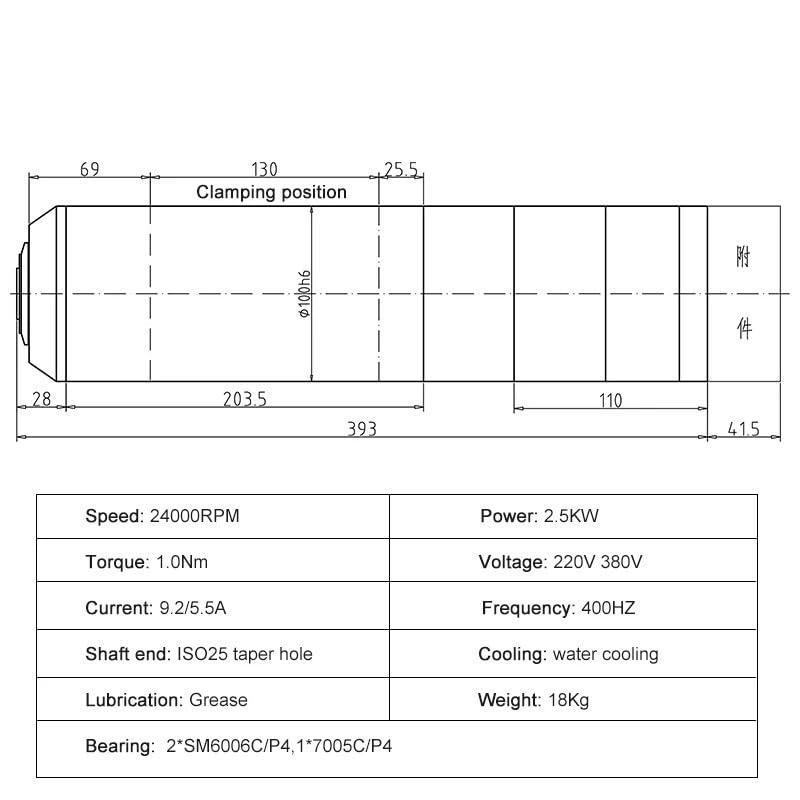

BulletPoint1 : Model: GDL100-25-24Z/2.5; Size: 100x434.5mm (body diameter: 100mm x length: 434.5mm)
BulletPoint2 : Speed regulation mode: The three-phase output inverter can change the spindle speed by changing the frequency of the inverter.
BulletPoint3 : Cooling method: water cooling; Power: 2.5kw; Voltage: 220V 380V; Current: 9.2A 5.5A
BulletPoint4 : Frequency:400Hz; Speed: 24000RPM; Diameter (mm): 100; Number of poles: 2P; Phase: 3 phase asynchronous driver
BulletPoint5 : Rotation: Seen from the shaft end, it rotates counterclockwise; Tool handle: IS025; Pull stud: IS020-15°
Color : 2.5kw 220V
ExternallyAssignedProductIdentifier : 7807792530998
ExternallyAssignedProductIdentifier1 : 840403770489
ExternallyAssignedProductIdentifier2 : 0840403770489
IncludedComponents : removable milling chuck, MT2-ER32 tapper accessory, R8 spindle taper

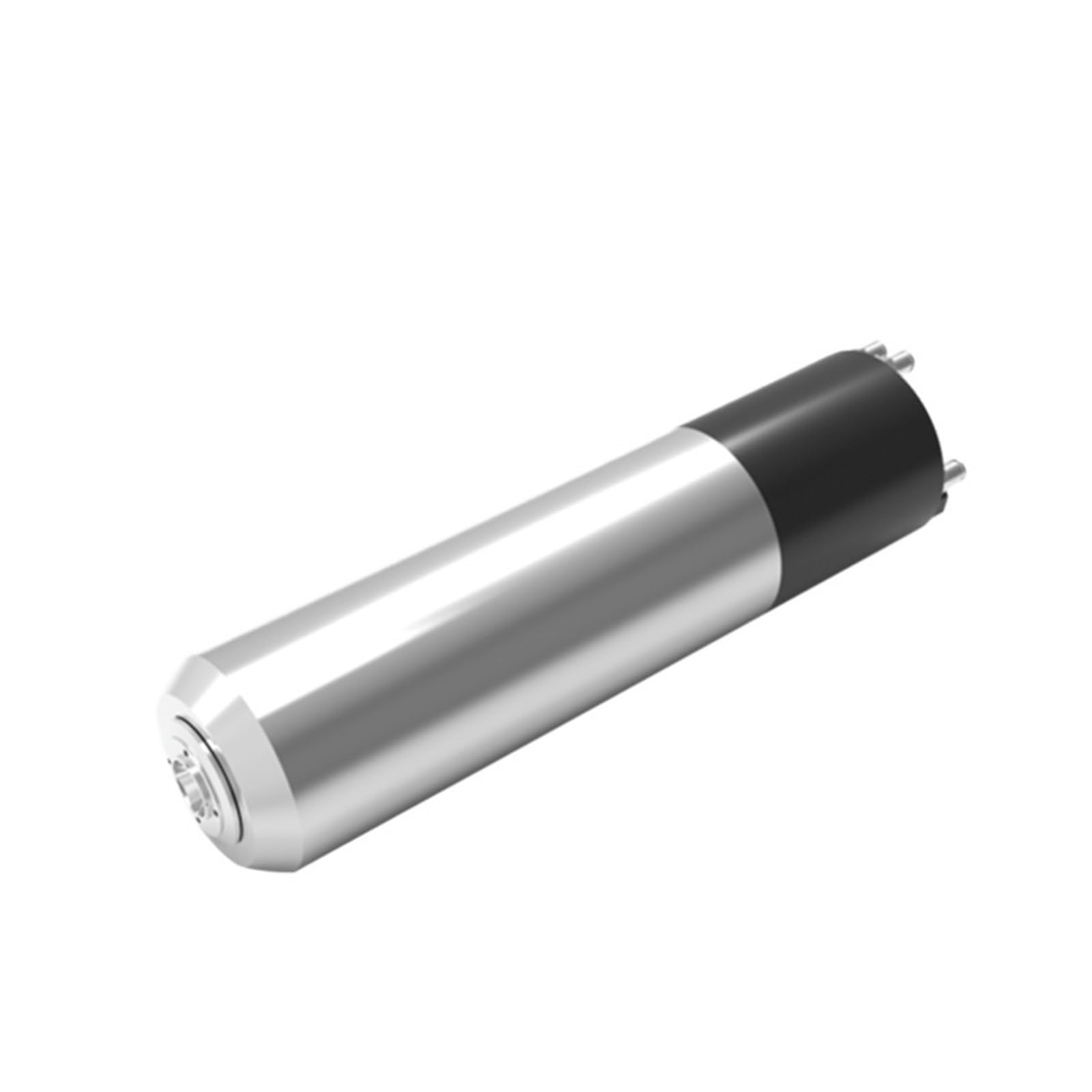

ItemName : WAAZVXS GDL100-25-24Z/2.5KW Water Cooled Spindle Motor 220V/380V Automatic Tool Changer Spindle for CNC Milling Machine (Color : 2.5kw 220V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : WEIWEIBEIER
Material : Metal
MaximumPower : 1300 watts
MaximumRotationalSpeed : 2250 rpm
ModelName : WWBR
ModelNumber : WWBR
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : WWBR
PowerSourceType : AC
ProductDescription : Grease lubricationMain use: Carving wood, PCB, PVC, plastic, two-color board (ABS) and other non-metals.sealing and air sealing structuredouble sealing air seal structure greatly improves the waterproof performance, widely used in copper, aluminum, steel and other gold is a carving and cutting and stone and CNC fine carving processing center field2.Equipped with standard ISO25 taper holesThe shaft ends are connected with standard ISO25 taper holes. The spindle adopts 4 imported high-precision P4 bearings, which effectively ensures the operation and machining accuracy of the spindleThe working environment temperature of the spindle is usually -1040.Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.The longer the length, the greater the torque and the greater the power.Careful assembly makes the spindle more precise.The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm1. Our main shaft uses 4 bearings.2. Bearings are resistant to high temperature and low heat3. Ceramic ball bearings have low friction, low noise and long service life.The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.1. The electric spindle must be installed in the clamping position, otherwise it is easy to cause damage to the bearing!2. The spindle mus
ProductSiteLaunchDate : 2024-05-13T08:19:46.271Z
Size : One Size
Speed : 2250 rpm
Style : RCOG-16V MT2
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 110 volts_of_alternating_current
Wattage : 600 watts
