Specification
Brand : WAAZVXS
BulletPoint1 : Model Number: GDK100-24Z/3.2
BulletPoint2 : Size: 100x295mm (diameter of middle body: 100mm x length: 295mm)
BulletPoint3 : Speed regulation mode: The spindle speed can be changed by three-phase output inverter and adjusting the frequency of the inverter.
BulletPoint4 : Cooling method: water cooling
BulletPoint5 : Power interface: Optional 4 pin waterproof air. The air labeled "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), 4 are connected to the inverter The device is grounded.
Color : 3.2kw 220V
ExternallyAssignedProductIdentifier : 7807792536587
Horsepower : 4 horsepower

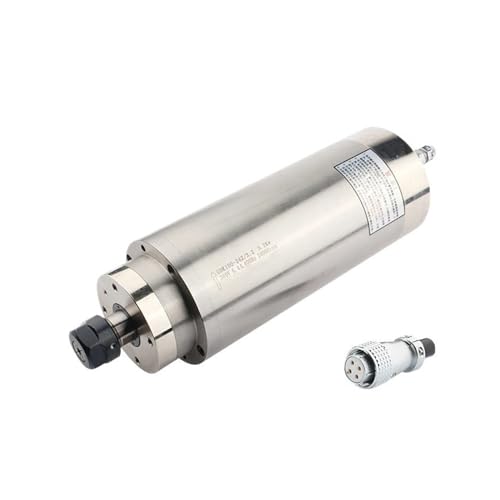

ItemName : WAAZVXS GDK100-24Z/3.2kw CNC Spindle 100mm Water Cooled Spindle Motor 220V/380V ER20 Chuck Nut for Router Metal Milling Tool (Color : 3.2kw 220V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : WEIWEIBEIER
Material : metal
MetalType : other
ModelName : WWBR
ModelNumber : WWBR
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : WWBR
ProductDescription : Power: 3.2kw
Voltage: 220V 380V
Current: 11A/6.4A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 100
4 fully sealed angular contact bearings
Chuck: ER20
Grease lubrication
Main Application: Engrave for wood,nPCB,PVC, plas-tic,duotone board(ABS)and etc nonmetal, also can engrave on gold,sil-ver.copper, aluminium,Pb etc soft metal surface working
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
ProductSiteLaunchDate : 2024-05-15T07:46:16.941Z
Size : One Size
Speed : 3000 rpm
UnitCount : 1
