Specification
Brand : WAAZVXS
BulletPoint1 : Model Number: JGD-125C-5.5KW
BulletPoint2 : Size: 125mm (diameter of middle body: 125mm x length: 405mm)
BulletPoint3 : Speed regulation mode: The spindle speed can be changed by three-phase output inverter and adjusting the frequency of the inverter.
BulletPoint4 : Cooling method: water cooling
BulletPoint5 : Power interface: Optional H20-4 pin waterproof air adapter. The air adapter labeled "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), 4 are connected to the inverter The device is grounded.
Color : 5.5kw 220V
ExternallyAssignedProductIdentifier : 7807792552761
Horsepower : 0.8 kilowatts

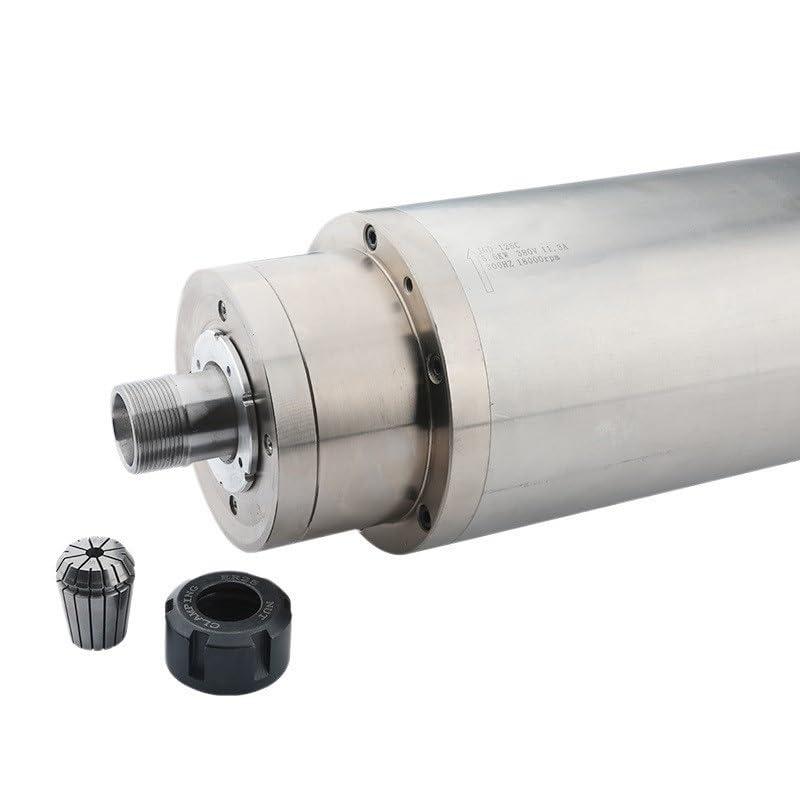

ItemName : WAAZVXS 125C-5.5KW Spindle Motor ER25 Woodworking Water Cooling Spindle 380v/220v Diameter 125mm for CNC Engraving Machine(Color:5.5kw 220V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : WEIWEIBEIER
Material : Metal
ModelName : WWBR
ModelNumber : WWBR
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : WWBR
ProductDescription : Power: 5.5kw
Voltage: 220v / 380v
Current: 11.3A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
Diameter (mm): 125
4 fully sealed angular contact bearings
Chuck: ER25
Clamping tool diameter: 13mm,12.7mm,12mm,11mm,10mm,9mm,8mm,7mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 6mm)
Water-cooled ER11 chuck
Grease lubrication
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
ProductSiteLaunchDate : 2024-05-23T07:07:41.236Z
Size : One Size
UnitCount : 1
