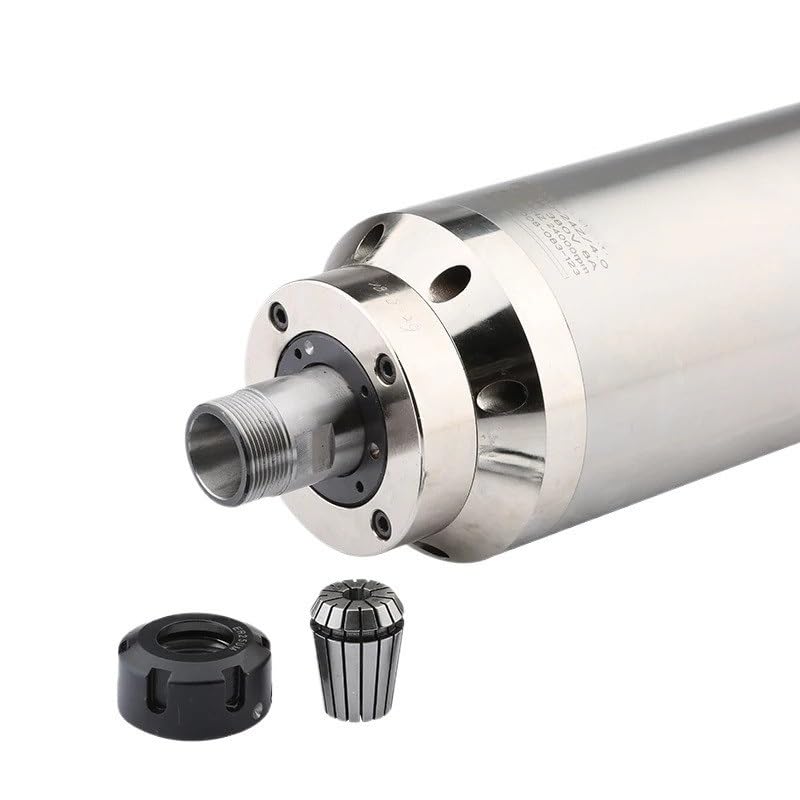

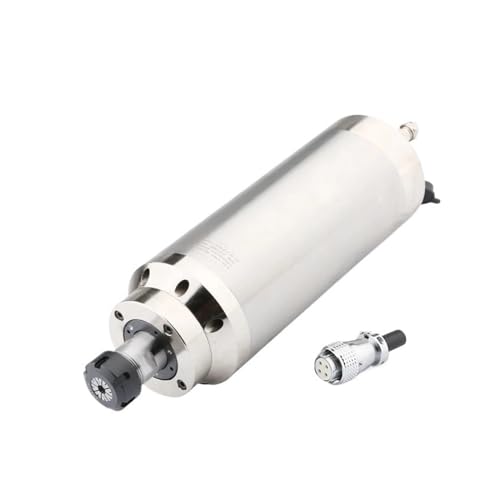

WAAZVXS 110-24Z/4.0kw ER25 Metal Processing Water-Cooled Spindle 380v Spindle Motor for CNC Router Stainless Steel Copper Steel

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 251100/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : WAAZVXS
BulletPoint1 : Model Number: 110-24Z/4.0kw
BulletPoint2 : Size: 110mm (diameter of the middle body: 110mm)
BulletPoint3 : Speed regulation mode: change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
BulletPoint4 : Cooling method: water cooling
BulletPoint5 : Power interface: YX20-4 pin waterproof aviation is optional. Aviation marked "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), and 4 is connected to the inverter land .
Color : 4.0kw 110mm 380V
ExternallyAssignedProductIdentifier : 7807792536600
Horsepower : 4 horsepower
ItemName : WAAZVXS 110-24Z/4.0kw ER25 Metal Processing Water-Cooled Spindle 380v Spindle Motor for CNC Router Stainless Steel Copper Steel
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : WEIWEIBEIER
Material : Metal
MetalType : other
ModelName : WWBR
ModelNumber : WWBR
NumberOfItems : 1
PartNumber : WWBR
ProductDescription : Power: 4.0kwVoltage: 380vCurrent: 8AFrequency: 400-800HzSpeed: 24000rpmNumber of strokes: 2Jump close: less than 0.01mmDiameter (mm): 1104pcs ceramic ball bearings (fully sealed angular contact bearings)Chuck: ER25Clamping tool diameter: 16mm, 15mm, 14mm, 13mm, 12.7mm, 12mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3.0mm, 2, 5mm, 2.5mm 1mm (Standard 4mm)Water-cooled ER25 chuck holderGrease lubricationMain purpose: engraving iron, steel, stainless steel, aluminum, hardwood, etc. (this is a high-precision, high-torque professional metal spindle)The working environment temperature of the spindle is usually -1040.Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.P4 fully sealed angular ceramic bearings can extend the life of the spindle.The longer the length, the greater the torque and the greater the power.Careful assembly makes the spindle more precise.Accuracy is 0.01mm, coaxial cable is less than 0.0025mm1. Our main shaft uses 4 bearings.2. The bearing is resistant to high temperature and low temperature3. The ball bearing has low friction, low noise and long service life.When the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter setting of the inverter match the spindle parameters.To connect the inverter main shaft, the three-phase inverter power cord should be welded to the plug 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4. After turning on the power, observe whether the spindle rotation axis always shows the direction. If it is inconsistent, turn it off immediately, and replace the two w
ProductSiteLaunchDate : 2024-05-15T07:46:29.266Z
Size : One Size
Speed : 3000 rpm
UnitCount : 1
