Specification
Brand : HY HUANYANG
BulletPoint : Bridgeport Mill Part Milling Machine Quill Stop Micro Screw And Nut Assembly
BulletPoint1 : NOTE:spindle need to be equipped with this vfd to use.Rated frequency of spindle is 400 Hz,If you input 220v/110v voltage at 50hz or 60hz, it will damage the spindle and vfd DOES NOT support external resistor.Fan runs all the time even though the motor isn't (fan functions need to be customized).
BulletPoint2 : Package includes： 1 x 220V-2.2KW VFD, 1 x 220V-2.2KW Φ80mm 4bearings 24000RPM ER20 collet Water Cooled Spindle Motor, 1 x 220V-75W Water Pump .1 x 80mm motor clamp mount 1 x 5m Water Pipe+13 pcs collet
BulletPoint3 : This VFD can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.This item use Sine wave PWN(SPWM) for the control system.work well with the Mach 3 controller
BulletPoint4 : The spindle motor applied to: wood carving/engraving machine, advertisement engraving machine,CNC machine, small sized processing center, high speed centrifuge etc.
BulletPoint5 : If there are problems in use after you receive,please don't give us negative or natural feedback,and your return will be a great loss to us.Due to the VFD is a flexibly configurable device, please be sure to contact us and we will give you a satisfactory solution.
ExteriorFinish : Black
ExternallyAssignedProductIdentifier1 : 0724509859739
ExternallyAssignedProductIdentifier2 : 724509859739
FinishType : [INFERRED: Black Oxide]
Horsepower : 3 horsepower
IncludedComponents : 1x 220V-2.2KW VFD, 1x 220v-2.2Kw Water cooled spindle
ItemName : VFD CNC Spindle Motor Kits：220V 2.2KW VFD+220V 2.2KW 400hz Spindle Motor+220V 75W Water Pump+80mm Motor Clamp Mount+13pcs ER20 Collet+5m Water Pipe
ItemPackageDimensions_Height : 23.5 centimeters
ItemPackageDimensions_Length : 34 centimeters
ItemPackageDimensions_Width : 32 centimeters
ItemPackageQuantity : 6
ItemTypeKeyword : power-milling-machines
Manufacturer : Huanyang Electrical
Material : Metal
ModelName : MQL
ModelNumber : 48-MOGL-PJTW
NumberOfBoxes : 1
NumberOfPieces : 4
PartNumber : xichuang12A3001
PeakOutputPowerWatts : 2200
PowerSourceType : Battery Powered
ProductDescription : This package includes：
●1 x 220V-2.2KW VFD
●1 x 220V-2.2KW ER20 4bearings Water Cooled Spindle Motor
●1 x 220V-75W Water Pump
●1 x 80mm Motor clamp mount
●1 x 5m Water Pipe.
●13 pcs collet

ER20 Collet Set:
Gripping Range:1mm,2mm,3.75mm,4mm,5mm,6.35mm,7mm,8mm,9mm,10mm,11mm,12.7mm,13mm

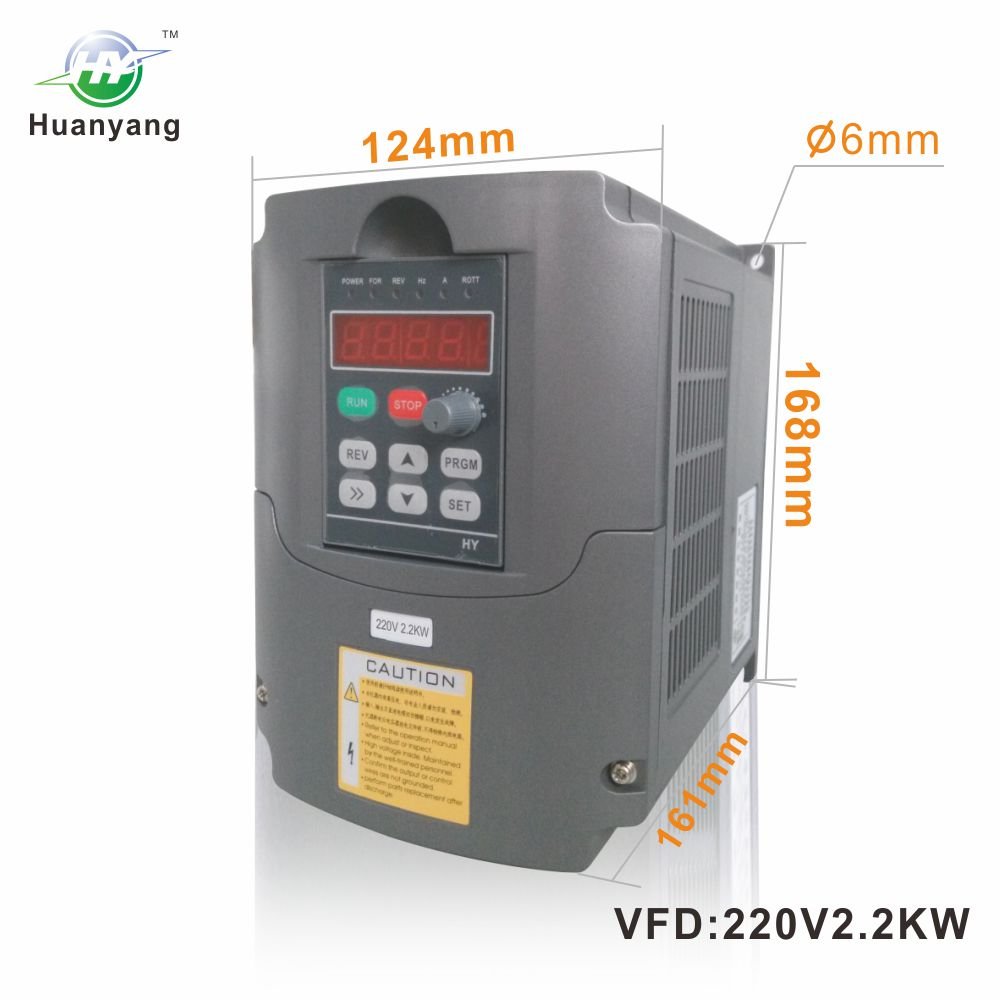

VFD specification:
modle:HY02D223B
power:2.2KW
horsepower:3HP
Input voltage：single-phase or three-phase 220V + -15% 50Hz / 60Hz
Output voltage：220V three-phase
Maximum output frequency:0 to 400hz
Input Frequency: 47-63Hz
the VFD can work with 220V single phase input and 220V three phase input.you can just connected L1/L2 to any two of VFD input R/S/T

spindle motor specification:
●Material: The cover is made of stainless steel, and the water jacket is high compression casting aluminum tube, red copper coil.
●Bearing: 7005 (2pcs)and 7002(2pc) bearings
● Voltage and rated current: AC 220V, 5A
● Max Rotation Speed:24,000 RPM
●Radial runout: 0.01mm
●Coaxality: 0.025mm (2.5 microns)
● Frequencies: 400Hz
●Size:80*213 (mm)
●Collet: ER20 collet, 6mm is standard
●Nut model: ER20-A(B)
●Cooling way: water cycling cooling way
●Lubrication way: high temperature resistance grease lubrication
●Power interface: GX16 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 inter-faces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire
ProductSiteLaunchDate : 2018-10-09T07:00:00.000Z
RecommendedUsesForProduct : Grinding
RecommendedUsesForProduct1 : CNC router
RecommendedUsesForProduct2 : Spindle motor
RecommendedUsesForProduct3 : Workshop
RecommendedUsesForProduct4 : Small electronics
RecommendedUsesForProduct5 : Centrifuger
Size : 3mm
Speed : 24000 rpm
Style : 220v-2.2kw spijndle-vfd packge
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 220 volts
Wattage : 2.2 kilowatts
