Specification
AgeRangeDescription : adult
Brand : ACNAO
BulletPoint1 : 【Sprayable Medium】Water,coolant, engine oil, kerosene, edible oil.
BulletPoint2 : 【High Efficiency】Improves the machining cutting speed and saves time, reduces the machining cost and tool wear.
BulletPoint3 : 【Good Effect】 The processing coolant can be saved by more than 80%, and the cooling effect is no less than conventional water cooling.
BulletPoint4 : 【Easy to Use】No water pressure, 1kg air pressure can be sprayed.
BulletPoint5 : 【Packing Include】Pneumatic cooling spray*2; Solenoid valve*1; Air filter*1.
Color : Vfd
ExternallyAssignedProductIdentifier : 7614569834483
IncludedComponents : Pneumatic cooling spray*2 Solenoid valve*1 Air filter*1
ItemName : Mist Coolant Spray Pump Kit, Mist Coolant Lubrication Spray System with 2 Pneumatic Cooling Spray, Cooling Sprayer Machine Cooling Spray Pump for CNC Lathe Milling Drilling Machine (YS-BPV-3000)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : ACNAO
Material : resin material，A3 iron
ModelName : Mist Coolant Spray Pump Kit
ModelNumber : Mist Coolant Spray Pump Kit
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Mist Coolant Spray Pump Kit
PowerSourceType : hand_powered
ProductDescription :

Product parameter：

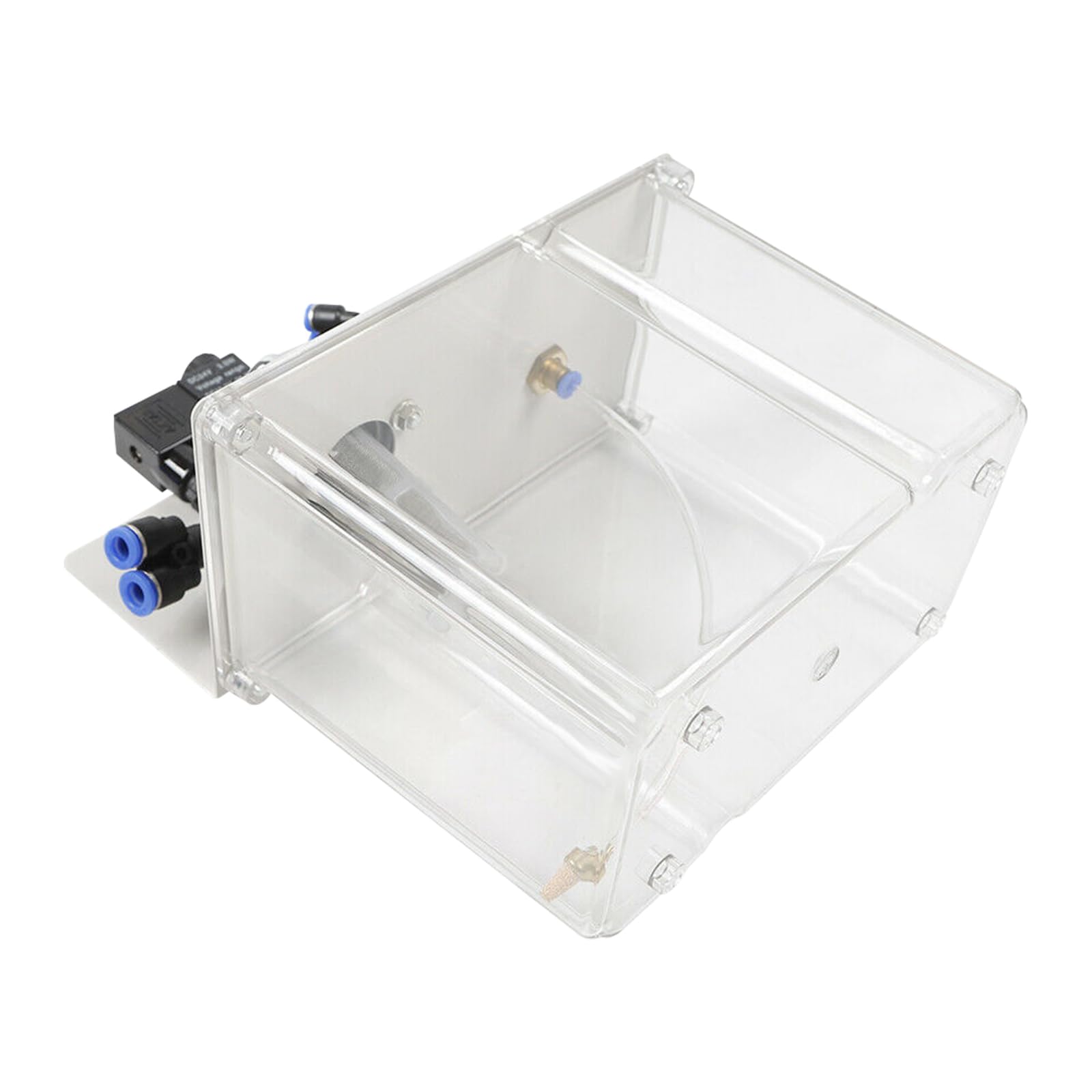

Size：tank：24.1*19.5*12.5cm（9.49*7.68*4.92inch）

The electromagnetic valve：11.8cm（4.65in）

Air filter：19.5cm（7.68in）

Weight：2.45kg（5.4lb）

Material：Fuel tank: resin material

Fuel tank cover: A3 iron

Sprayer, solenoid valve: aluminum alloy

Air filter: iron shell + engineering plastic

Customers need to prepare their own air compressor (air pressure 2KG-8kg) connection for use;

How to use:

1.   The gas pipe of the air pump intakes air from the air inlet marked IN the air filter.   Air is released from the OUT outlet, and then connected to the solenoid valve with two copper mufflers on the end of the intake.

2.   The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug.   One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.

3.   Machine tool PLC access to the solenoid valve coil, using PLC program to control the opening and closing of the solenoid valve.   Solenoid valve open, on the ventilation spray;   The solenoid valve is closed, and the gas is not sprayed.

(If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve:

The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative.   A separate contact on the side is grounded to prevent static electricity.

Product features：

1.  Sprayable medium: water,coolant, engine oil, kerosene, cooking oil.

2.  No water pressure required, 1KG air pressure can be sprayed.

Packing list：

Pneumatic cooling spray*2

Solenoid valve*1

Air filter*1

ProductSiteLaunchDate : 2024-05-28T09:16:14.366Z
RegulatoryComplianceCertification1 : Q-09-001A
RegulatoryComplianceCertification2 : PSDOS.0565GA-006
Size : 220V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 23240000
