Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 220v Connctor
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 7624570094349
ExternallyAssignedProductIdentifier1 : 194286227791
ExternallyAssignedProductIdentifier2 : 0194286227791
IncludedComponents : Double Ended Spanner x 2

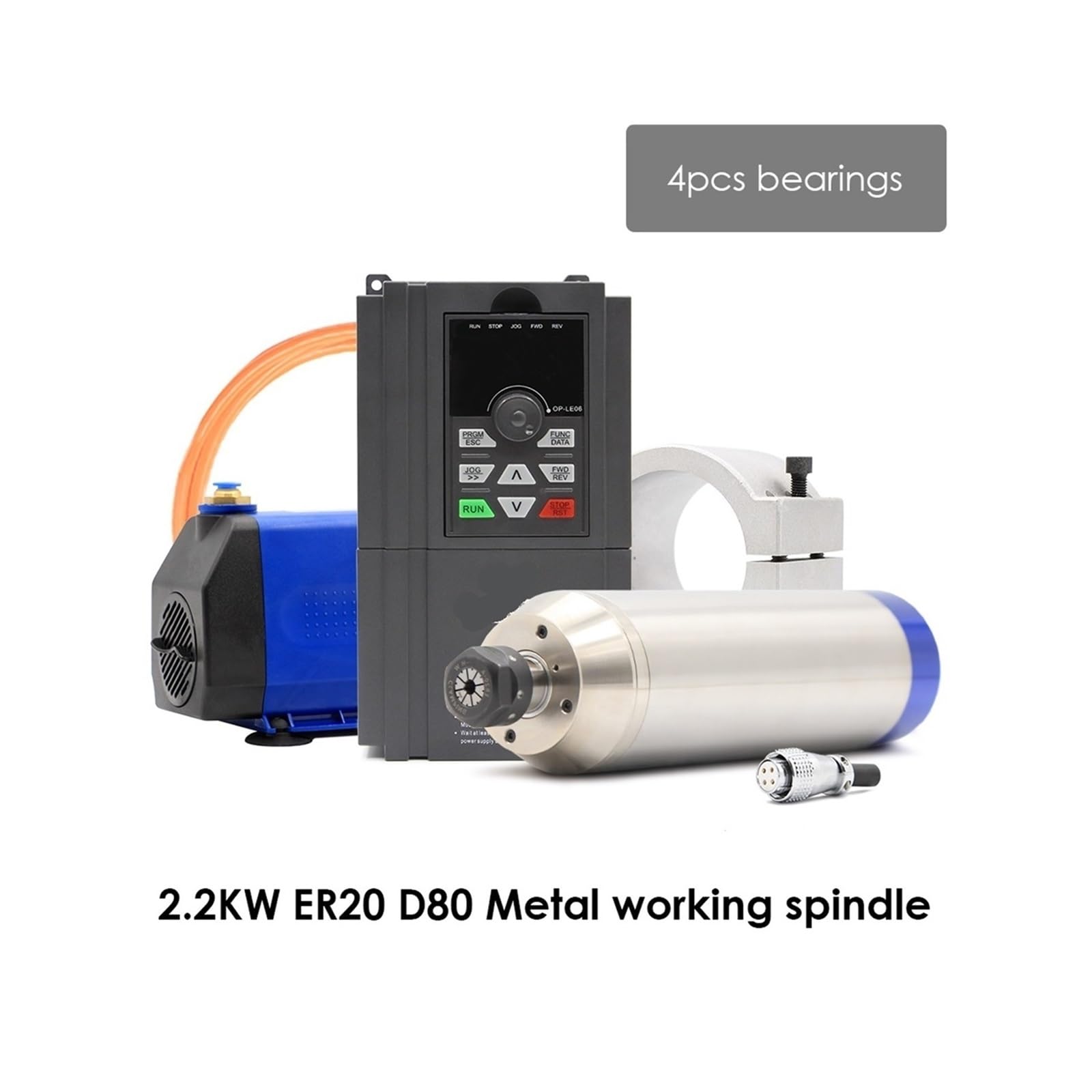

ItemName : KACOME Water-Cooled Spindle Motor kit 220v 380v 2.2KW4 Ceramic Bearing 2/4 Pole Metal Processing 2.2KW BD600 Inverter(400Hz-24000rpm,220v Connctor)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
Material1 : Metal
Material2 : Plastic
MaximumRotationalSpeed : 25000 rpm
MinimumSpeed : 25000 rpm
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : KACOME
PowerSourceType : Pneumatic
ProductDescription : 1&220VAC 22kw metal processing spindle motor water cooling 400Hz800Hz pole 24 diameter 80mm
122KW BD600 inverter
180mm spindle bracket
175W water pump AS

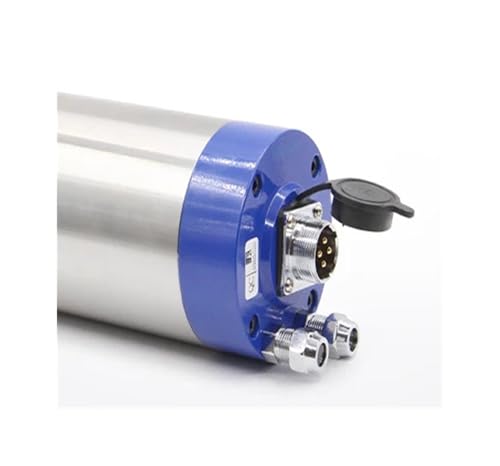

Size 80x247mm, center body diameter 80mm x length 247mm. The speed regulation method adopts a three-phase output inverter, and adjusts the frequency of the inverter to change the spindle speed.
Cooling method: water cooling
Power: 2.2kw
Voltage: 220v/380v
Current: 10A/5.5A
Frequency: 400Hz/800Hz
Speed: 24000rpm
Number of poles: 2 / 4
Runout: less than 0.01mm
Diameter (mm): 80
Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT
4 ceramic ball bearings full angular contact bearings
Chuck ER20
Diameter 13mm, 12mm, 127mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water-cooled ER16 cylinder clamp block
Input voltage: 220v (+/-15%)
Input frequency: 50/60Hz
Input phase number: 1 phase or 3 phases
Output voltage: 220VAC
Output frequency: 0-1000Hz
Output current: 10A
Number of output phases: three phases
Two speed control methods: PG-free vector control (SVC), V/F control
PG-free vector control (SVC): starting torque 0.5 Hz up to 150%
8-segment simple PLC function, multi-segment speed control and PID control
Maximum lift: 3.2m;
Power: 75w;
Maximum flow: 3200L/H
Voltage: 220V;
Frequency: 50 Hz
Outlet size: 4mm and 6mm;
Size: 145*110*90mm
Certification: CE
Drive mode: motor
Maximum torque: 0.85Nm
Working speed: 12000-24000rpm
Model: 2.2kw ER20 metal spindle
Size: 80*318mm
Voltage: 220v/380v
Current: 10A/5.5A
Power: 2.2kw (1HP=735w)
Cooling: water cooling
Bearing Type: 2X 7005 P4 DT & 2X 7002 P4 DT
Chuck: ER20
Frequency: 400Hz/800Hz
Number of poles: 2 poles/4 poles
Chuck range: 1-13mm (including 1/4, 1/8, 1/2)
Inverter model: 2.2KW BD600
ProductSiteLaunchDate : 2024-10-30T02:20:29.471Z
RecommendedUsesForProduct : Grinding
Size : 400Hz-24000rpm
Style : Pencil
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26101200
