Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 220v
ExternallyAssignedProductIdentifier : 7624570094288

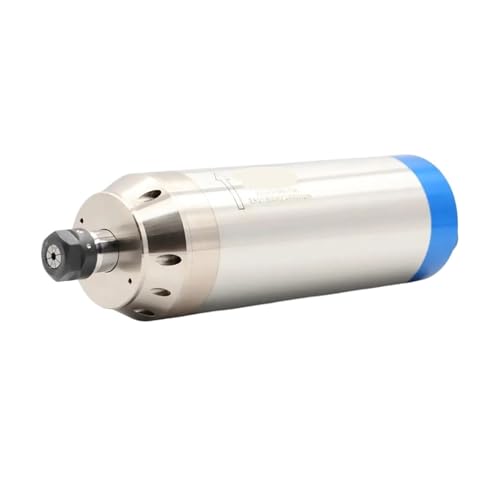

ItemName : KACOME Metal Processing Spindle 3.5KW ER20 Water-Cooled Spindle Motor Pole Number = 4 800Hz Used for Processing Metal Copper, Iron, Stainless Steel, etc.(220v)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220VAC 35kw metal processing spindle motor water cooling 800Hz pole 4 diameter 100mm
Size: 100x250mm (mid body diameter: 100mmx length: 250mm)
Speed ​​regulation method: Through the three-phase output frequency converter, adjust the frequency of the frequency converter to change the spindle speed.
Cooling method: water cooling
Power: 3.5kw
Voltage: 220v/380v
Current: 15A/8A
Frequency: 800Hz
Speed: 12000-24000rpm
Score: 4
Runout: less than 0.01mm
Diameter (mm): 100
Bearing type: 2 x7006 P4 DB&2 x 7004 P4 DB
4 ceramic ball bearings full angular contact bearings
Chuck ER20
Milling disc diameter 13mm, 12mm, 12.7mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water-cooled ER20 collet block
Grease lubrication
Certification: CE
Drive mode: motor
Maximum torque: 1.59Nm
Working speed: 12000-24000rpm
Model: 3.5kw ER20 metal spindle
Application: Milling
Size: 100x250mm
Voltage: 220v
Power: 3.5kw (1HP=735w)
Current: 15A
Cooling: water cooling
Bearing Type: 2X 7006 P4 DB and 2X 7004 P4 DB
Chuck: ER20
Frequency: 800Hz
Rod: 4
Chuck range: 1-13mm (including 1/4, 1/8, 1/2)
ProductSiteLaunchDate : 2024-10-30T02:20:25.873Z
Size : Ceramic Ball Bearing
UnitCount : 1
UnspscCode : 26101200
