Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 220v
ExternallyAssignedProductIdentifier : 7614569819640

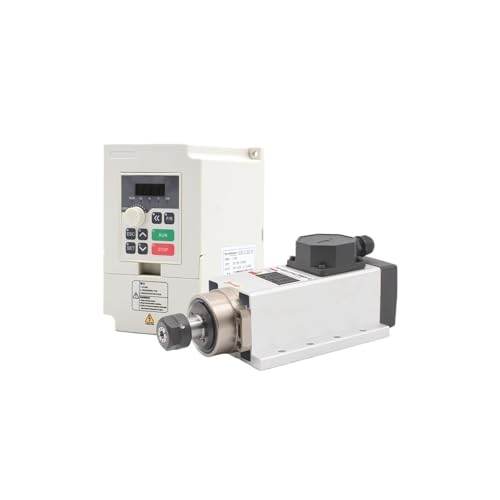

ItemName : KACOME CNC Spindle Motor Air-Cooled 220v 2.2kw ER20 Air-Cooled Spindle 2.2KW Inverter 400Hz 4 Ceramic Ball Bearing(Steel Bearings)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220v 22kw ER20 air-cooled spindle motor 4 bearings 024000rpm 018000rpm
1 220v 22kw Inverter VFD

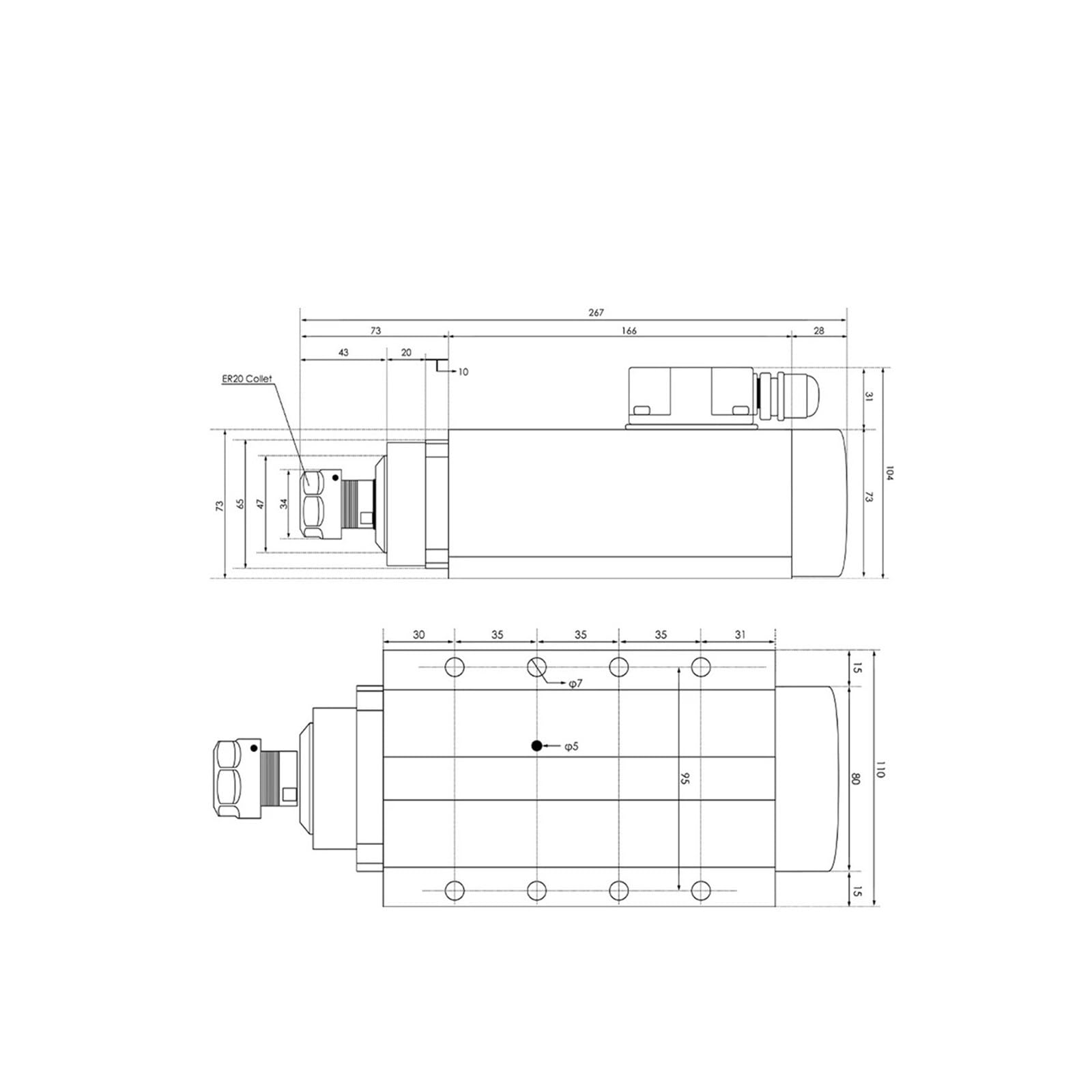

Dimensions 166x73x95mm 173x95x110mm with mounting flange
Speed regulating method through three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: air-cooled
Power: 2.2 kW (1HP = 0.735 kW)
Voltage: 220V
Current: 8.5A
Frequency: 0-400 Hz
Speed: 0-24000 rpm
Runout: less than 0.01 mm
Bearing type: 2x7005 C P4 DT and 2x7002 C P4 DT
Collet ER20
Power: 2.2 kW
Input voltage: 220 V (±20%)
Input phase: single phase or three phase
Input Frequency: 50-60 Hz (±5 Hz)
Output voltage: 220 V
Output phase 3-phase
Output Current: 11A
Output Frequency: 0-1000Hz
Control mode: V/F control V/F control; open-loop flux vector control
Certification: CE
Driving device: motor
Maximum torque: 1.17Nm
Operating speed: 0-18000rpm/0-24000rpm
Model: 220V 2.2 kW ER20 air-cooled spindle
Application: Milling
Spindle dimensions: 173x82x95 mm
Spindle voltage: 220V
Spindle current: 8.5A
Spindle power: 2.2 kW
Spindle cooling: air-cooled
Spindle bearing type: 2x7005C P4 DB & 2x7002C P4 DT
Spindle collet: ER20
Spindle frequency: 300Hz/400Hz
Spindle lubrication: Grease
Spindle chuck range: 1-13mm (including 1/4,1/8,1/2)
Inverter parameters: 220V 2.2
ProductSiteLaunchDate : 2024-10-25T08:46:59.832Z
Size : Steel Bearings
UnitCount : 1
UnspscCode : 52140000
