Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 220v
ExternallyAssignedProductIdentifier : 7614569819770
ItemName : KACOME CNC Spindle Motor Air Cooling 220v 2.2kw ER20 Air Cooled Spindle 400Hz 4pcs Ceramic Ball bearigs(Ceramic Bearings,220V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1pcs& 22kw ER20 air-cooled spindle motor square 4 bearings

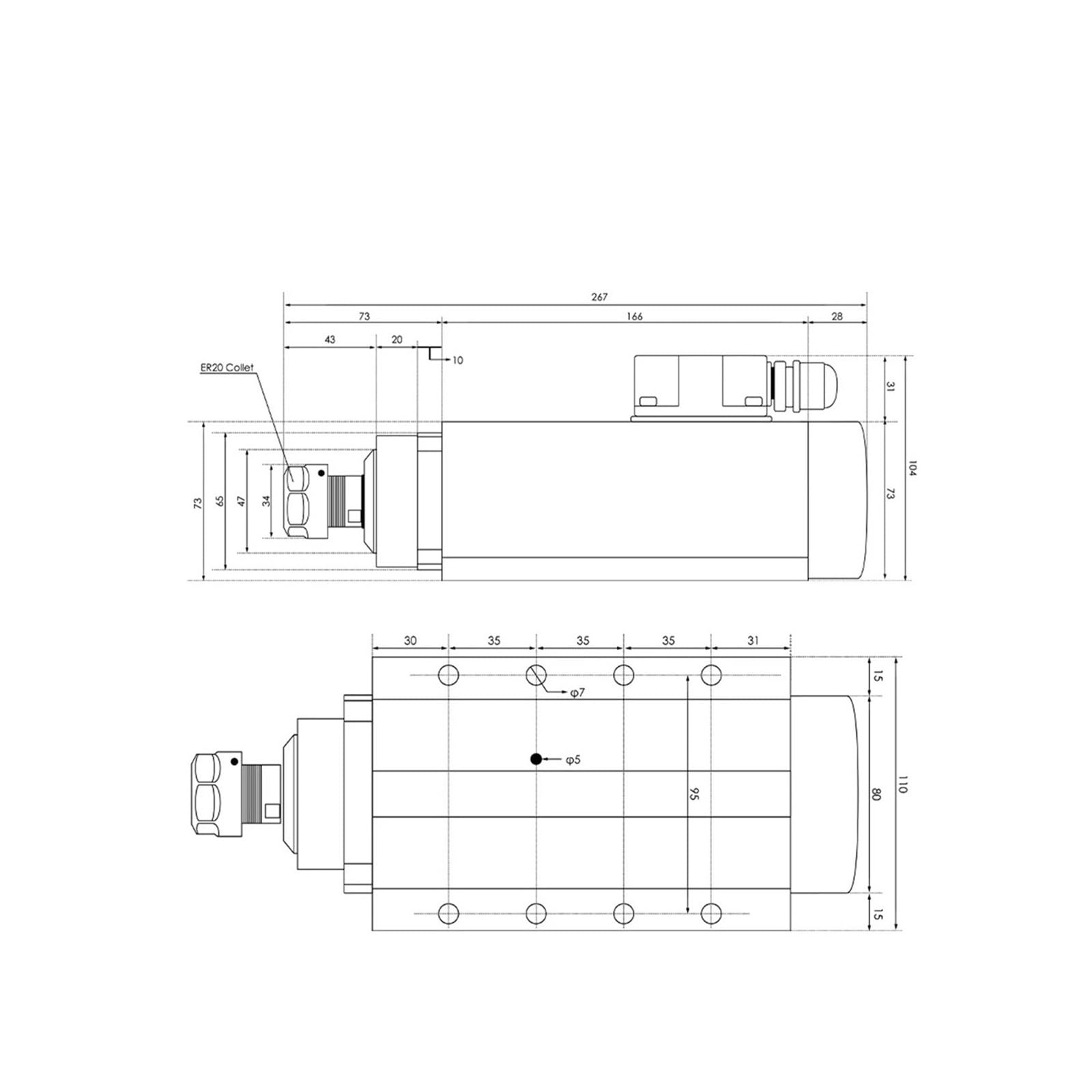

Dimensions 166x73x95mm 173x95x110mm with mounting flange.
Speed control mode through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: air-cooled
Power: 2.2 kW (1HP = 0.735 kW)
Voltage: 220V
Current: 8.5A
Frequency: 0-400 Hz
Speed: 0-24000 rpm
Runout: less than 0.01 mm
Bearing type: 2x7005 C P4 DT and 2x7002 C P4 DT
Collet ER20
========== Certification: CE
Drive : Motor
Maximum torque : 1.17Nm
Running Speed : 0-24000rpm
Model : 220v 2.2kw ER20 air-cooled spindle
Application : Milling
Spindle size : 173x82x95 mm
Spindle voltage : 220V
Spindle current: 8.5A
Spindle power: 2.2 kW
Spindle cooling: air-cooled
Spindle bearing type: 2x7005C P4 DB & 2x7002C P4 DT
Spindle collet: ER20
Spindle frequency: 400Hz
Spindle lubrication: grease
ProductSiteLaunchDate : 2024-10-25T08:47:06.989Z
Size : Ceramic Bearings
UnitCount : 1
UnspscCode : 26100000
