Specification
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 380v
ExternallyAssignedProductIdentifier : 7624570095025

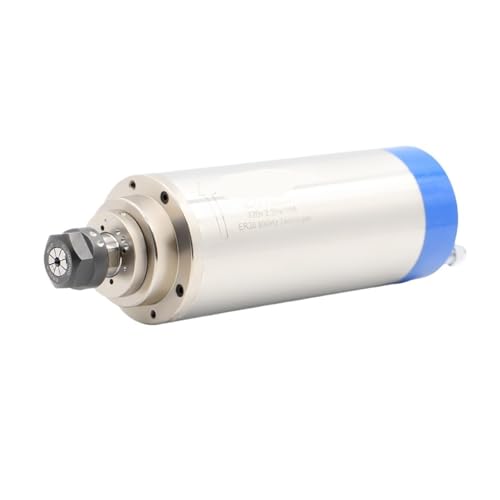

ItemName : KACOME CNC Spindle Motor 2.2kw ER20 Water-Cooled Metal Spindle 800Hz Number of Poles = 4 Water-Cooled for Metal, Iron, Stainless Steel(380v)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220vAC 22kw metal working spindle motor water cooled 800Hz pole 4 diameter 85mm

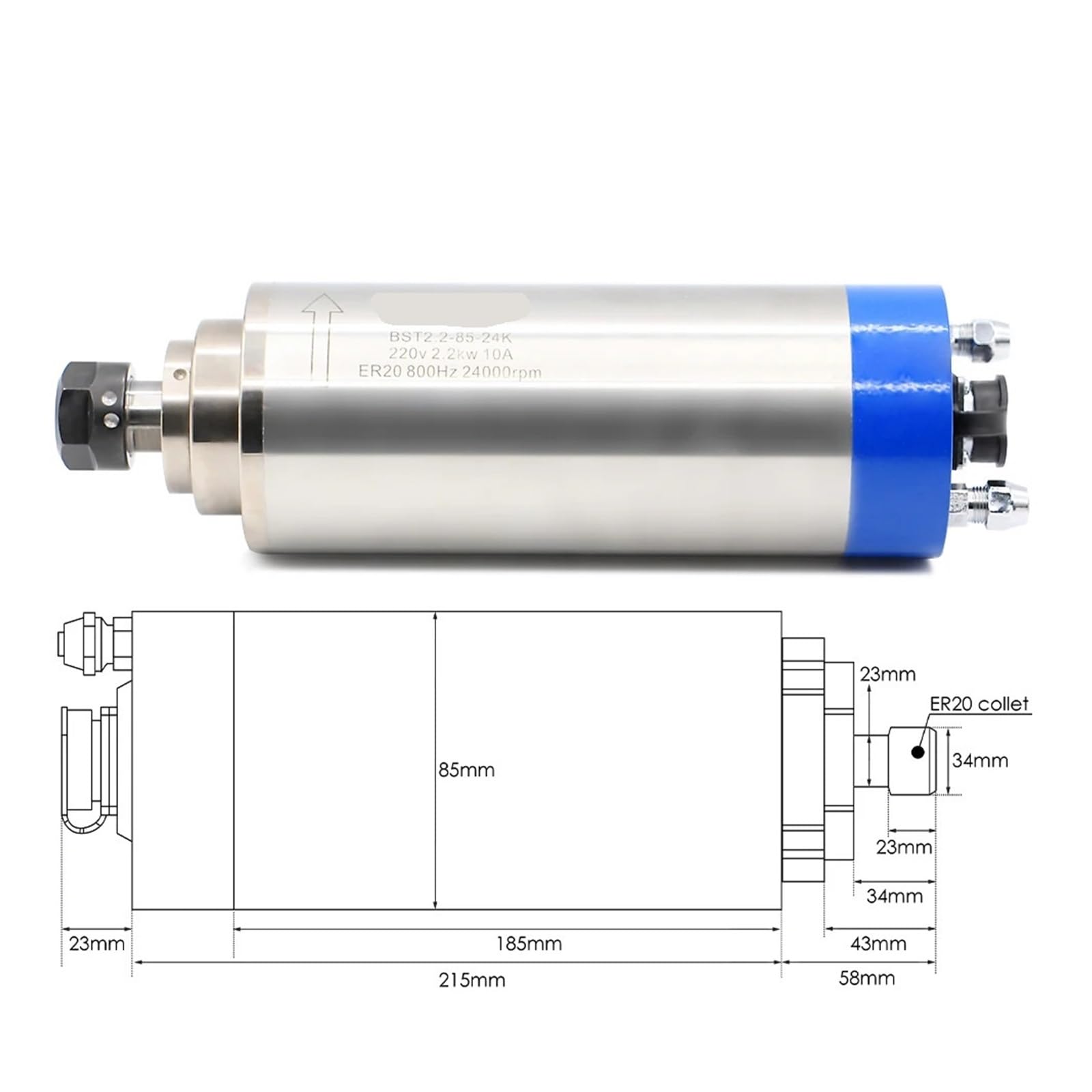

Size 85x215mm center body diameter 85mmx length:215mm)
Speed regulation mode: through the three-phase output frequency converter, adjust the frequency converter to change the spindle speed.
Cooling method: water cooling
Power: 2.2 kW
Voltage: 220V
Current: 10A
Frequency: 800 Hz
Speed: 12000-24000 rpm
Number of poles: 4
Runout deviation: less than 0.01 mm
Diameter (mm): 85
Bearing type: 2 x 7005 P4 DT & 2 x 7003 P4 DT
==========
Certification : CE
Drive : Electric motor
Maximum torque : 1.0N.m
Running Speed : 12000-24000rpm
Model : 2.2kw ER20 Metal Spindle
Application : Milling
Dimensions : 85x215 mm
Voltage : 220V
Current : 10A
Power : 2.2kw (1HP=735W)
Cooling: Water-cooled
Bearing type: 2 X 7005C P4 DT and 2X 7003C P4 DT
Collet: ER20
Frequency: 800 Hz
Number of poles: 4
Collet range: 1-13 mm (including 1/4, 1/8, 1/2)
ProductSiteLaunchDate : 2024-10-30T02:20:29.894Z
Size : Ceramic Ball Bearing
UnitCount : 1
UnspscCode : 26101200
