Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Rotation: Spindle motors provide high speed stable rotation.
BulletPoint2 : Machining: The accuracy of the spindle motor directly affects the accuracy of the machined workpiece
BulletPoint3 : Application: Adapt to a variety of application scenarios
BulletPoint4 : Features: all size light weight
BulletPoint5 : Installation: Simple installation easy operation
Color : 380v
ExternallyAssignedProductIdentifier : 7614569819947

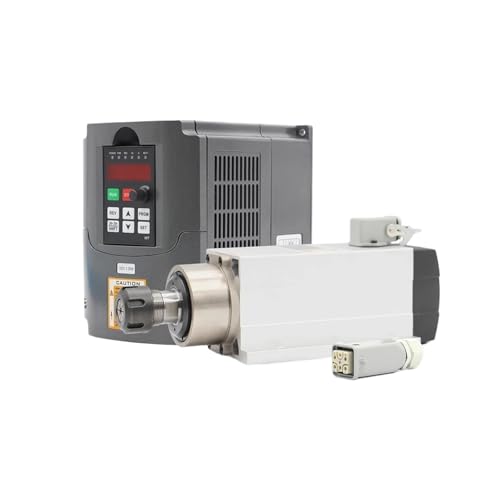

ItemName : KACOME Air-Cooled Spindle 2.2kw ER25 4 Bearings 220v/380v Flange Ceramic Ball Bearing 2.2kw Frequency Converter VFD(Ceramic Ball Bearing,380V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME
ProductDescription : 1&220v380v 22kw ER25 air-cooled spindle motor with mounting flange 4 ceramic ball bearings
1 220v 22kw frequency converter VFD

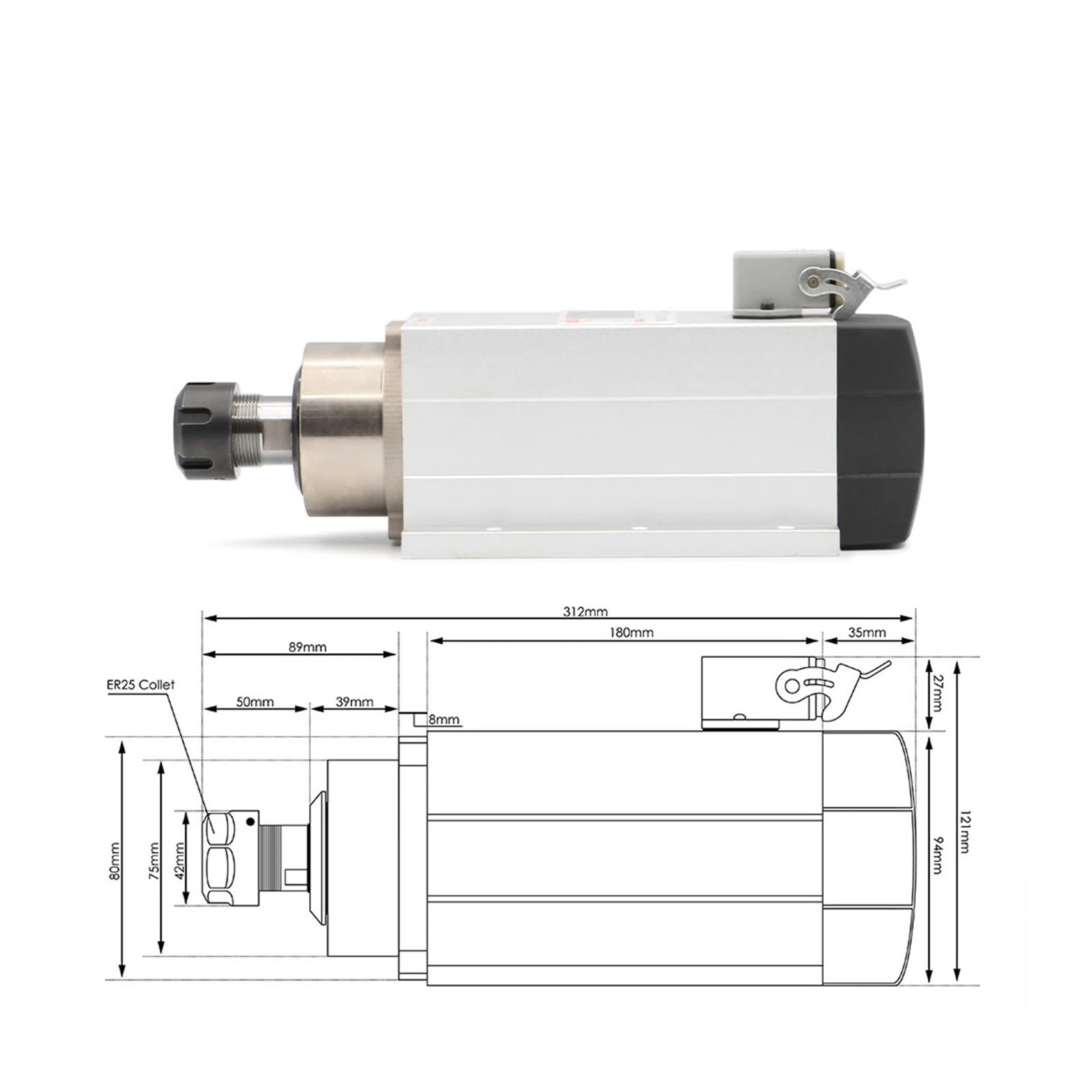

Dimensions 180x82x94 mm
The speed is adjusted through the three-phase output frequency converter, and the frequency converter is adjusted to change the spindle speed.
Cooling method air cooling
Power: 2.2kw (1HP=0.735w)
Voltage: 220V
Current: 8.5A
Frequency: 0-300 Hz
Speed: 0-18000 rpm
Runout: less than 0.01mm
Bearing type: 2x7007C P4 DB (ceramic ball bearing) and 2x7002C P4 DT
Chuck ER25
Milling pins: 1mm2mm3mm3175mm18),4mm,5mm,6mm,6.35mm(1/4),7mm,8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm,14mm,15mm,16mm
Grease lubrication
Inverter type: 220v 2.2KW
Input voltage: 220v (+/-15%)
Output voltage: 220v AC
Input frequency: 0-400Hz
Input phase number: 1 phase or 3 phases
Number of output phases: 3 phases
=========
Certification: CE
Drive mode: motor
Maximum torque: 1.21Nm
Running speed: 0-18000rpm
Model: 220v
ProductSiteLaunchDate : 2024-10-25T08:47:10.915Z
Size : Ceramic Ball Bearing
UnitCount : 1
UnspscCode : 52140000
