Specification
Brand : INTSUPERMAI
BulletPoint : Bridgeport Milling Machine CNC Parts Table Lock Handle Silver 1/2 Thread Set
BulletPoint1 : 【Milling and Drilling Machine Parameter】: With Metric Scale.Spindle taper:R8-ER32(milling chuck accessories),Distance from spindle to table:,X axis stroke:18.9"(480mm),Y axis stroke:6.9",Z axis stroke:11,Table size:27.2"*7.1"(690mm*180mm).The operation is more conwenient.Forward and reverse switch and with emergency stop switch, which is more safe.
BulletPoint2 : 【Milling and Drilling Machine Parameter】: With Metric Scale.Spindle taper:R8-ER32(milling chuck accessories),Distance from spindle to table:,X axis stroke:18.9"(480mm),Y axis stroke:6.9",Z axis stroke:11,Table size:27.2"*7.1"(690mm*180mm).The operation is more conwenient.Forward and reverse switch and with emergency stop switch, which is more safe.
BulletPoint3 : 【Removable Milling Chuck】:RCOG-25V comes with a set of removable milling chuck, which is convenient for clamping objects, while giving a set of MT3-ER32 milling chuck accessories, without additional purchase.
BulletPoint4 : 【Removable Milling Chuck】:RCOG-25V comes with a set of removable milling chuck, which is convenient for clamping objects, while giving a set of MT3-ER32 milling chuck accessories, without additional purchase.
BulletPoint5 : 【Scale】: Integrated cross worktable, width is widened, with high precision positioning adjustment scale, which can be moved from front to back, left and right, spray paint at the bottom, which is durable. Can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model.Benchtop metal lathe use all metal gears, metal shell, metal hand wheel without any plastic parts.
BulletPoint6 : 【AFTER SALES SERVICE】 If you get stuck, Contact us with any questions that arise. Our customer service team is always ready to assist with any questions you may have.
Color : Blue
ExternallyAssignedProductIdentifier : 7066230330778
ExternallyAssignedProductIdentifier1 : 0760714623833
ExternallyAssignedProductIdentifier2 : 760714623833
Hazmat1 : UN1950
IncludedComponents : Drilling and milling machine ×1 , Axis X power feed ×1, Grating ruler ×1, Chucks set x1 , Support base ×1, Drill chuck ×1, Drill chuck retaining pin ×1, Bench clamp ×1, Fork wrench ×2, Drill chuck wrench ×1, Oil can ×1, Cross screwdriver ×1, Straight screwdriver ×1 , Hexagon wrench ×4 , Manual ×1
IncludedComponents1 : sliding bearing block
IncludedComponents2 : M4 screws
IncludedComponents3 : T8 nuts
IncludedComponents4 : M4 Sliding nuts

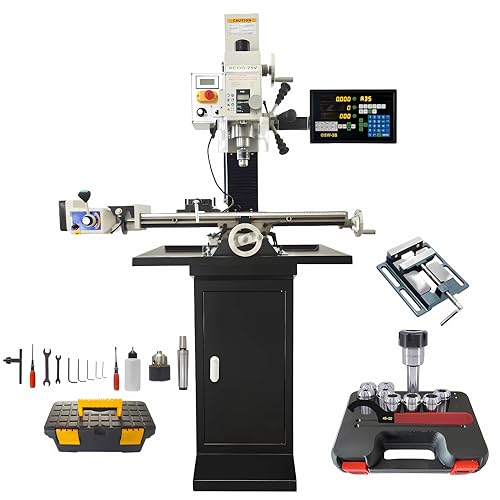

ItemName : INTSUPERMAI Vertical Milling Drilling Machine7"X27" Mini Mill Drill Machine R8 Spindle Taper Set with Axis X Power Feed and Three - axis Grating Ruler 20-2250rpm Variable Speed 110V
ItemPackageDimensions_Height : 37.4 inches
ItemPackageDimensions_Length : 35.43 inches
ItemPackageDimensions_Width : 22.44 inches
ItemPackageQuantity : 2
ItemTypeKeyword : power-milling-machines
Manufacturer : INTSUPERMAI
Material : Metal
Material1 : metal
Material2 : aluminum
Material3 : iron
ModelName : YS-BPV-3000 Coolant Cooling Spray Pump
ModelNumber : BI-MLLCR-1077-US-HUMuu
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : S056765
PowerSourceType : dc
ProductDescription : Milling Machine Parameters
Model: RCOG-25V
Voltage: AC110V/60Hz
Motor power: 1100W brushless motor
X axis stroke: 18.9"(480mm)
Y axis stroke: 6.9"(175mm)
Z axis stroke: 11"(280mm)
Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)
Max. drilling diameter: 0.9"(25mm)
Max. Face screening capacity: 2.5"(63mm)
Max. vertical milling capacity: 0.79"(20mm)
Distance from spindle to table: 13.8"(350mm
) Spindle taper: R8
Spindle stroke: 2"(52mm)
The Range of spindle speeds: 20-2250rpm
Table size: 27.2"*7.1"(690mm*180mm)
T groove width: 0.47"(12mm)
Net weight/Gross weight: Milling machine:276.7LB(125.5kg)/342.8LB(155.5kg)
Supporting base:17.6LB(8kg)/22.0LB(10kg)
Axis X power feed voltage: AC110V 50/60Hz
Axis X power feed Power: 95W
Axis X power feed speed range: 0-200rpm
Grating ruler voltage: AC110V-220V 50/60Hz
Grating ruler power: 10W
Precision of grating ruler: 0.005mm
ProductSiteLaunchDate : 2023-05-24T01:47:57.024Z
RecommendedUsesForProduct1 : Engraving
RecommendedUsesForProduct2 : Cutting
RecommendedUsesForProduct3 : Grinding
RecommendedUsesForProduct4 : Polishing
RecommendedUsesForProduct5 : Sanding
SafetyDataSheetUrl : http://www.yhjm.com
Size : M
Style : Fashion
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 110 volts
Wattage : 1100 watts
