Brand : INTSUPERMAI
BulletPoint1 : [Application] Aluminum-plastic door and window end milling machine, suitable for aluminum-plastic profile end step surface, rectangular groove and processing of tenon and profile end processing. The machine has advanced technology, reliable and safe performance, compact structure and simple operation; the use of cylinder pressing, cylinder machining makes the milling cutter feed smooth, profile processing effect is good, the machine is easy to maintain.
BulletPoint2 : [Parameter] Motor power: 220V, Milling shaft speed: 2800r/min, Milling cutter shaft diameter: Φ32mm, Milling cutter diameter: Φ110 ~ 200mm, Max tenon: 200×70×45(length × width × height), Rotation Angle of positioning module: -55 °∽ +55°, Cutting width: max 200mm, Air source working pressure: 0.5-0.8Mpa
BulletPoint3 : [Electric Chassis] Mainly composed of box, box cover and motor protective cover, guide shaft, motor base and other parts, in addition, the spray system is installed outside the protective cover, the electrical chassis can move horizontally along the horizontal guide shaft. The shield acts as a safety shield and the spray system cools the milling cutter.
BulletPoint4 : [Workbench] It is composed of main parts such as support box, platform panel, positioning adjustment block, etc. It can move around along horizontal guide rail. Fuselage: consists of a support box and an adjustment level seat.
BulletPoint5 : [Cylinder] The working cylinder is located in the chassis slot at the lower side of the electric chassis and pushes the chassis to move from left to right in feed range: 0 to 300mm. Two compression cylinders are located on the upper panel.
Color : 0.005mm Complete Set
ExternallyAssignedProductIdentifier : 7502974389905
ExternallyAssignedProductIdentifier1 : 0198462463911
ExternallyAssignedProductIdentifier2 : 198462463911

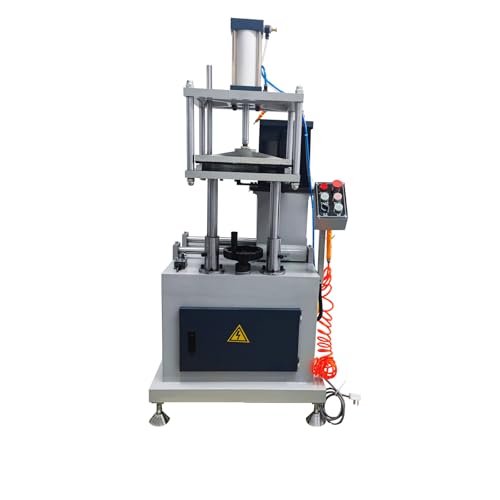

ItemName : INTSUPERMAI Aluminum Window Making Machine Aluminum Profile End Milling Machine for Aluminum-plastic Profile End Step Surface Rectangular Groove Profile End Processing End Milling Machine 220V
ItemPackageDimensions_Height : 71.65 inches
ItemPackageDimensions_Length : 35.83 inches
ItemPackageDimensions_Width : 31.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : INTSUPERMAI
ModelName : 1005005831365373
ModelNumber : 1005005994372060
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Y033251
ProductDescription : Main use and scope of application
Aluminum-plastic door and window end milling machine, suitable for aluminum-plastic profile end step surface, rectangular groove and processing of tenon and profile end processing.

Parameters:
Motor power: 220V
Milling shaft speed: 2800r/min
Milling cutter shaft diameter: Φ32mm
Milling cutter diameter: Φ110 ~ 200mm
Max tenon: 200×70×45(length × width × height)
Rotation Angle of positioning module: -55 °∽ +55°
Cutting width: max 200mm
Air source working pressure: 0.5-0.8Mpa

Structural Characteristics：
The machine has advanced technology, reliable and safe performance, compact structure and simple operation; the use of cylinder pressing, cylinder machining makes the milling cutter feed smooth, profile processing effect is good, the machine is easy to maintain.

Item included:
1*Aluminum Window Making Machine Aluminum Profile End Milling 220V (033251)

ProductSiteLaunchDate : 2024-12-26T07:48:15.508Z
Size : 1
UnitCount : 1
UnspscCode : 27112700
