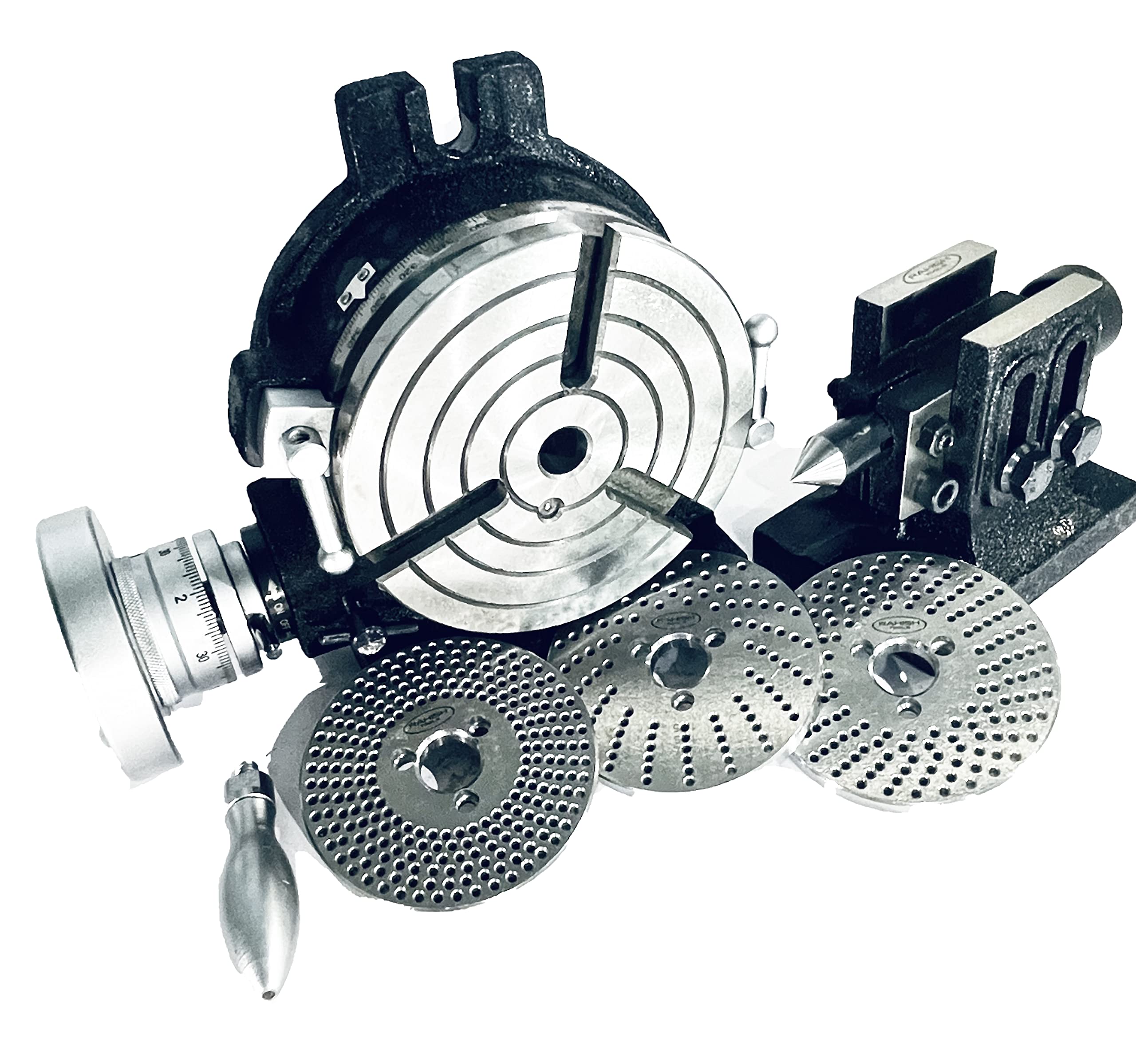

HV6 3 Slots / 6" inches (150mm) Rotary Table with Steel Dividing Plates Set along with doulble bolt tailstock for Quality Engineering Accessories, Milling Vice Vise Machine Tools

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 57700/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
BaseType : Fixed
Brand : RAHISH TOOLS
BulletPoint : Quill Feed Handwheel & Forward Feed Reverse Knob For Bridgeport Milling Machine
BulletPoint1 : A great combo of HV6 3 slots Rotary table with double bolt tailstock and dividing plates For Milling Machine
BulletPoint2 : HV6 Rotary Table: HV6 Rotary Table Diameter :150 mm (6"") Overall Height : 80 mm ( 3-1/4"") Centre Height in Vertical Position: 105 mm Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4 Degrees. Table Graduated 360 Degrees, Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds || Centre Bore of the Table: 2 MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position.
BulletPoint3 : A set of Steel Dividing Plates for Indexing with all required Accessories || Designed to Fit our HV4 & HV6 Rotary Tables. (Worm-Gear Ratio-90: 1) || Designed to Fit our HV4 & HV6 Rotary Tables. (Worm-Gear Ratio-90: 1) || Diameter of the Plates is 100 mm. Centre Hole of the Plate is 21 mm. Thickness 7 mm
BulletPoint4 : Its made of good Quality of Cast Iron. || Height is adjustable from 80 mm to 110 mm || It is used on our HV4 HV6 Rotary Table.
BulletPoint5 : It is used when between centre work is required. || These are adjustable for different heights Having fine feed centre point and the centre tip is hardened and Ground.
Color : Black
ExternallyAssignedProductIdentifier1 : 0764769486870
ExternallyAssignedProductIdentifier2 : 764769486870
Horsepower : 1.5 kilowatts
IncludedComponents : 1
ItemName : HV6 3 Slots / 6" inches (150mm) Rotary Table with Steel Dividing Plates Set along with doulble bolt tailstock for Quality Engineering Accessories, Milling Vice Vise Machine Tools
ItemPackageDimensions_Height : 67.818 centimeters
ItemPackageDimensions_Length : 22.86 centimeters
ItemPackageDimensions_Width : 50.8 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : power-milling-machines
Manufacturer : RAHISH TOOLS
Material : Cast Iron
Material1 : Aluminum
Material2 : Metal
MaximumRotationalSpeed : 10000 rpm
ModelName : RAHISH TOOLS HV6-3 Slots Rotary Table, Steel Dividing Plates Set & Tailstock with Free Manual
ModelNumber : HV6ROTARY3SET1
NumberOfItems : 1
PartNumber : HV6ROTARY3SET1
PowerSourceType : Manual
ProductDescription : "A great combo of HV6 3 slots Rotary table with double bolt tailstock and dividing plates For Milling Machine: HV6 Rotary Table: 1. HV6 Rotary Table Diameter :150 mm (6"") Overall Height : 80 mm ( 3-1/4"") Centre Height in Vertical Position: 105 mm Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4 Degrees. Table Graduated 360 Degrees, Resettable Dial & Handwheel graduated in seconds. Vernier scale is caliberated to 10 seconds 2. Centre Bore of the Table: 2 MT 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Can be clamped in Horizontal as well Vertical Position. Steel Dividing Plates: 1. A set of Steel Dividing Plates for Indexing with all required Accessories 2. Designed to Fit our HV4 & HV6 Rotary Tables. (Worm-Gear Ratio-90: 1) 3. Diameter of the Plates is 100 mm. Centre Hole of the Plate is 21 mm .Thickness 7 mm Double Bolt Tailstock: 1. Its made of good Quality of Cast Iron. 2. Height is adjustable from 80 mm to 110 mm, 3. It is used on our HV4 HV6 Rotary Table. 4. It is used when between centre work is required. 5. These are adjustable for different heights Having fine feed centre point and the centre tip is hardened and Ground."
ProductSiteLaunchDate : 2022-08-09T13:03:13.146Z
Size : Large
Speed : 24000 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
ToleranceHeld : Precision
UnitCount : 16
Voltage : 110 volts_of_alternating_current
Wattage : 1500 watts
