Specification
BaseType : Fixed
Brand : Futchoy
BulletPoint1 : This 6040T machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
BulletPoint2 : It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.
BulletPoint3 : It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
BulletPoint4 : The mini router Frame is movable. The machine can connect with computer as other external device such as printer, scanner.
BulletPoint5 : With the assist of the ROUTER 6040T, your design idea will be real-time display.
BulletPoint6 : Attention:We only sell the machine, not include the software.
Color : Style 1
ExternallyAssignedProductIdentifier1 : 0712004870151
ExternallyAssignedProductIdentifier2 : 712004870151

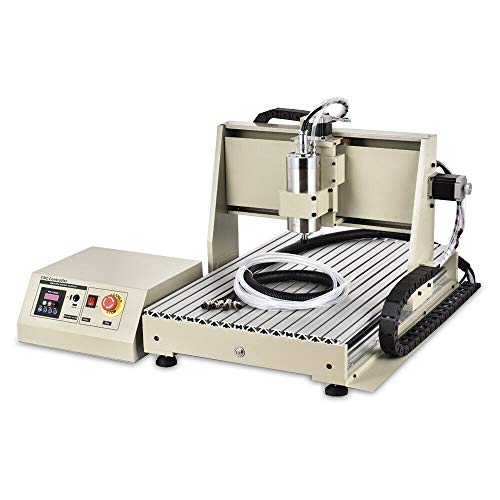

ItemName : Futchoy 4-Axis USB CNC 6040 Router Engraving Machine PCB Milling Machine With Controller 110V 1.5KW VFD Water-Cooled Router Engraving Machine For Metal, Wood, Glass And Plastic
ItemPackageDimensions_Height : 25.4 centimeters
ItemPackageDimensions_Length : 12.7 centimeters
ItemPackageDimensions_Width : 24.13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : Naratop
Material : Aluminum
MaximumRotationalSpeed : 24000 rpm
ModelName : ROTARY TABLE
ModelNumber : 43565
NumberOfItems : 1
PartNumber : Naratop-6040
PowerSourceType : Corded Electric
ProductDescription :

Engraving machine parameters:

 X, Y, Z Working Area: 600(Y)390（X）120(Z)mm

 Outside dimension: 865680570mm（LWH）

 Table size: 770（Y）490（X）mm

 Lathe structure: 6061/6063 Aluminium alloy

 Max. Feeding height: ≤100mm

Spindle motor

Tips

The spindle motor must connect with the VFD.



It cannot directly connect with the supply voltage (AC110V/220V).



Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.



 Outside dimension: 65158mm



 Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket



 VOLTS, current, power: AC110V, 60Hz, 5A, 1.5 KW VFD



Spindle motor: 1.5 KW Water Cooled



 Spindle speed: 24000 rpm



 Max working frequency: 400Hz



 Principal axis collet: ER11collet, Standard configuration :6mm



 Nut Model: ER11-A



 Cooling: Water-cooling



 Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM



 Lubrication way: lubricated by high grease



 Repeat accuracy: 0.05mm



 Spindle precision: radial beat acuities 0.03mm



 Carving Instructions: G code / TAB files / nc file / NCC files



 Communication interface: through USB connection with computer



 Software environment: windows XP / win7 32bits system



 Working Speed: 50-1500mm / min (different material with different speed settings)



Maximum Idle speed: 0-1500mm/min



ProductSiteLaunchDate : 2021-07-08T09:41:48.789Z
Size : 3'' Inches (75 ) mm 4 slot rotary table
Style : Genmitsu 3018-PROVer V2 CNC Machine with MPG Handwheel
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
Voltage : 110 volts
