Specification
Brand : MaldHau
BulletPoint1 : 【Good Effect】 The processing coolant can be saved by more than 80%, and the cooling effect is no less than conventional water cooling.
BulletPoint2 : 【Sprayable Medium】Water, alcohol, coolant, engine oil, kerosene, cooking oil.
BulletPoint3 : 【Product Features】No water pressure required, 1KG air pressure can be sprayed.
BulletPoint4 : 【Packing List】Pneumatic cooling spray*2+ Solenoid valve*1+ Air filter*1
BulletPoint5 : 【Note】Customers need to prepare their own air compressor (air pressure 2KG-8kg) connection for use.
Color : Blue
ExternallyAssignedProductIdentifier1 : 0785869979499
ExternallyAssignedProductIdentifier2 : 785869979499
IncludedComponents : 2 sprayers + solenoid valve + filter
ItemName : Cutting Cooling Spray Pump, Self-priming Micro-mist Machine for Air Pipe CNC Lathe Milling Dril, Mist Coolant Lubrication Spray System with Solenoid Valve &Filter
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : MaldHau
Material : mental
ModelName : Cutting Cooling Spray Pump
ModelNumber : CR-10
NumberOfItems : 1
PartNumber : E239549
PowerSourceType : hydraulic_powered
ProductDescription :

Note：Customers need to prepare their own air compressor (air pressure 2KG-8kg) connection for use

How to use:

1. The gas pipe of the air pump intakes air from the air inlet marked IN the air filter. Air is released from the OUT outlet, and then connected to the solenoid valve with two copper mufflers on the end of the intake.

2. The complimentary blue gas pipe should be plugged into the AIR inlet connected to the sprayer from the end of the solenoid valve with a plug. One end of the complimentary transparent tubing is connected to the check valve on the tank and the other end is inserted directly into the OIL suction port of the sprayer.

3. Machine tool PLC access to the solenoid valve coil, using PLC program to control the opening and closing of the solenoid valve. Solenoid valve open, on the ventilation spray; The solenoid valve is closed, and the gas is not sprayed.

(If you want the power supply to work, you need to connect the PLC equipment or automatic signals to the solenoid valve:

The connection method is two parallel in the solenoid valve coil, is connected to the positive and negative poles, the two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.

Product parameter：

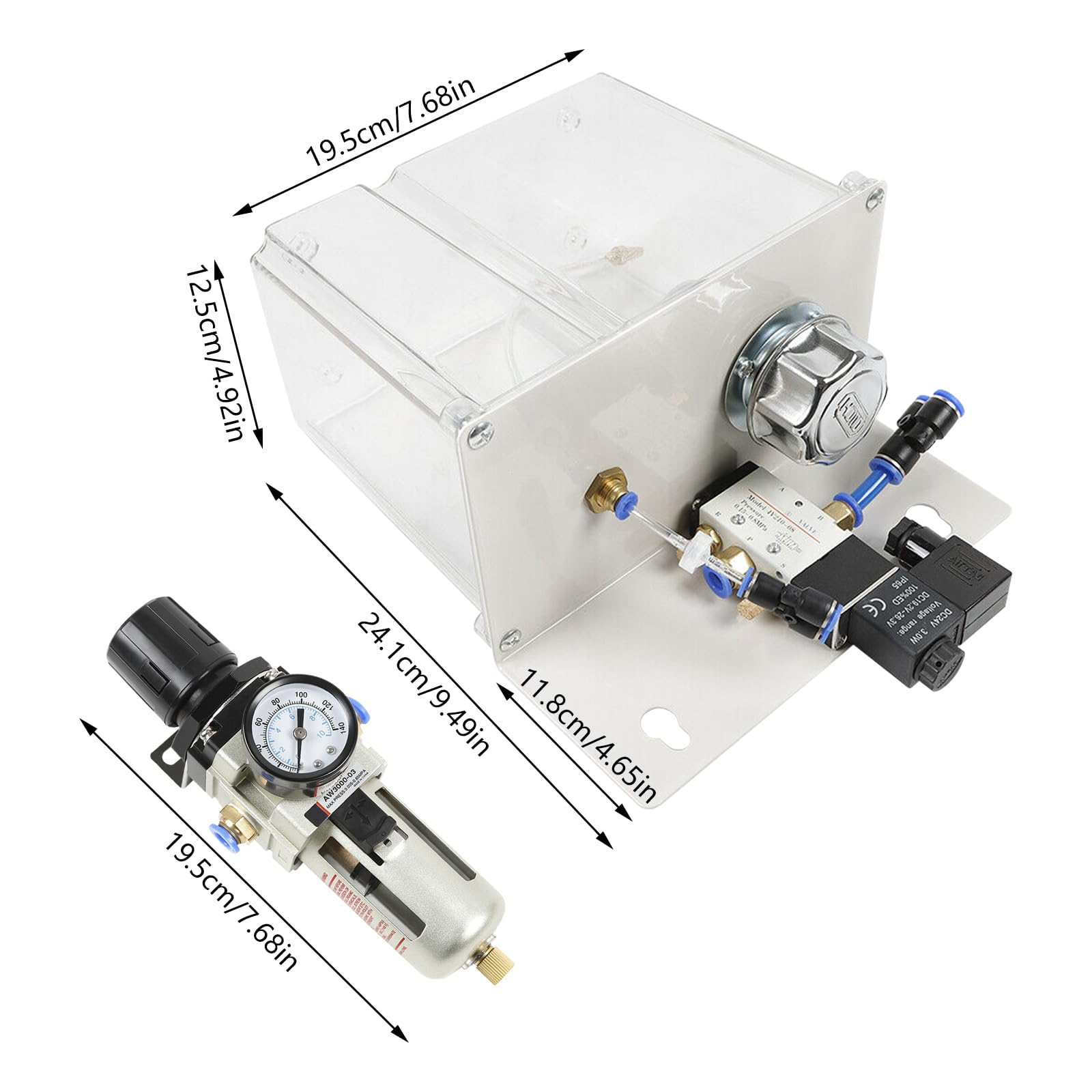

Size：tank：24.1*19.5*12.5cm（9.49*7.68*4.92inch）

The electromagnetic valve：11.8cm（4.65in）

air filter：19.5cm（7.68in）

Weight：2.45kg（5.4lb）

Material：Fuel tank: resin material

Fuel tank cover: A3 iron

Sprayer, solenoid valve: aluminum alloy

Air filter: iron shell + engineering plastic

packing list：

Pneumatic cooling spray*2

Solenoid valve*1

Air filter*1

ProductSiteLaunchDate : 2024-08-15T07:27:15.767Z
Size : 6 mm plate
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40141600
