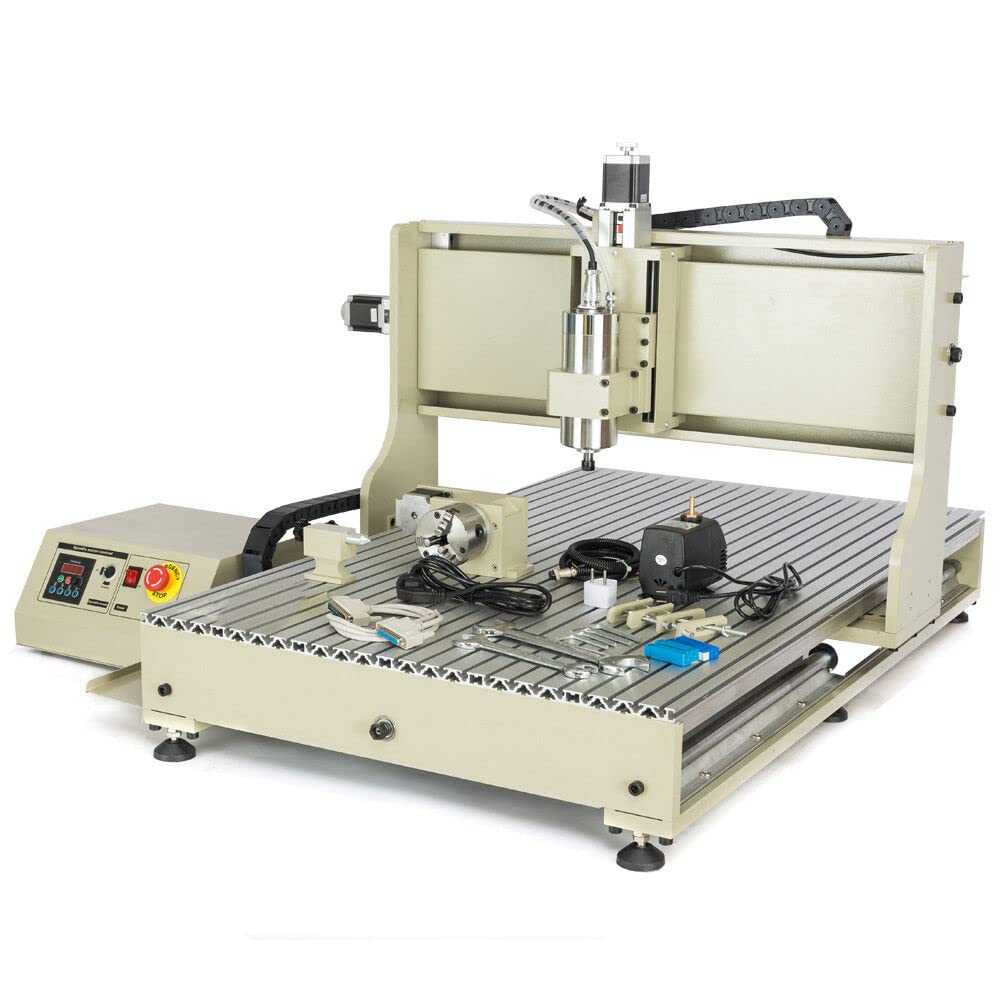

CNC Router Machine 2.2KW 4 Axis 6090 USB CNC Router Kit 3D Engraving Machine + VFD Water-Cooling Spindle Motor +Control Box + Handwheel, Ball Screw, with Limit Switch, US STOCK

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 371500/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
AgeRangeDescription : Adult
BaseType : Fixed
Brand : OCASAMI
BulletPoint1 : ✅ [Powerful Performance] Spindle Speed: 24000RPM. Spindle motor: 2200Whigh-speed variable frequency spindle motor, ER20 chuck, matching 6mm collet. Working Speed :50-1500mm/min. Drive of Stepping motor: 0-3.5A adjustable four-axis drive. Variable-frequency Drive(VFD): AC110V, 0-400Hz(built-in Control box ) (Tips: The spindle motor must connect with the VFD. It cannot directly connect with the supply voltage (AC110V).)
BulletPoint2 : ✅ [ROUTER 6090 Parameters] Model: CNC6090GZ. X,Y,Z Working Area: 900(Y) x 600(X) x 140mm(Z). Outside dimension: 1150x970x650mm(LxWxH). Working platform size: 1045x720mm(LxW). Frame Material:The whole machine used 6061 aluminum profiles. Max. Feeding height: ≤140mm(From base of Z axis to platform). X/Y/Z axis--- Ball Screws. Stepping motor: 57 Two-phase 3A 150N.cm.
BulletPoint3 : ✅ [High Quality and Durable] Water Cooled Spindle Motor Can Work Longer Time Than Air Cooled Motor. Has Higher Stability And Better Concentricity Than Air Cooled Motor. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle. (Note: Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)
BulletPoint4 : ✅ [DIY&Wide Application] It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal .like aluminum, copper and silver to engrave them into 3D/2D works etc.
BulletPoint5 : ✅ [Pre-Purchase Note] The control software used by the engraving machine is MACH3. The recognition is G-code, so you need to convert the map to be processed into G-code, the machine can recognize and process. Carving Instructions: G code / TAB files / nc file / NCC files. 32-bit versions of Windows 2000, Windows XP, Windows Vista or Windows 7 are supported (64-bit versions are not compatible and cannot be used).
Color : Wrinkle Black Paint Finish & Ground Finish
ExternallyAssignedProductIdentifier : 6903036849961
ExternallyAssignedProductIdentifier1 : 0723508196845
ExternallyAssignedProductIdentifier2 : 723508196845
FinishType : Chrome
IncludedComponents : USB CNC Router Kit
ItemName : CNC Router Machine 2.2KW 4 Axis 6090 USB CNC Router Kit 3D Engraving Machine + VFD Water-Cooling Spindle Motor +Control Box + Handwheel, Ball Screw, with Limit Switch, US STOCK
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 18 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : power-milling-machines
Manufacturer : OCASAMI
Material : 2.2KW 4 Axis 6090
MaximumRotationalSpeed : 24000 rpm
ModelName : USB CNC Router Kit
ModelNumber : 6040 6090
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 2
PartNumber : Does not apply
PowerSourceType : ac
ProductDescription :

Attention.

1. If you have any questions. Please leave a message and contact us, we will be happy to help you and get back to you within 24 hours.

2.We only sell the machine, not include the software.



CNC Parameters:

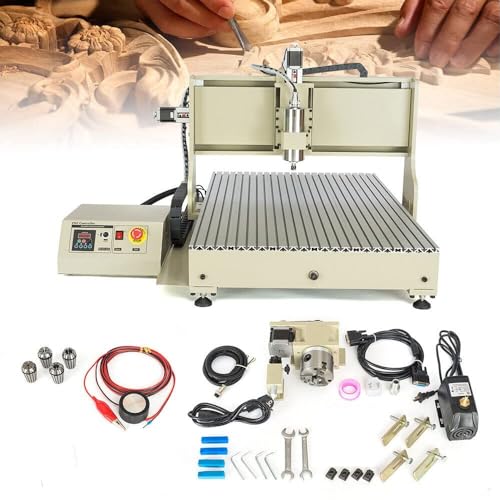

Package list:

1X main unit (Frame)

1X main unit (working base)

2X Fence baffle

1X control box

1X A axis

1X Sinal cable for A axis

1X pump

1X USB cable

2X cutter 2x6mm

2X cutter 3x6mm

10X 4x7mm round head

6X 4x10mm black Inner six angle screw with nut

8X 5x20mm black Inner six angle screw

4X 5x8mm Flat Philip's head screw with nut and gasket

8X 6x24mm BALCK FLAT Inner six angle screw

12X Aluminium fastener

1X 13-15# Wrench

1X 14-17# Wrench

2X six angle Wrench(3mm)

 2X six angle Wrench(4mm)

1X Teflon tape

2X Fuse (5A)

1X Power cable

1X Manual

1x Tools Setting Auto-Check Instrument


Drive unit

X axis: ø20 High intensity round rail

Y axis: SBR ø20 high-strength aluminum base rails

Z axis: ø12 high-strength round rail



Stepping motor:

Driving Power for Stepping motor:AC110,240W, Output DC24V 10A

Maximum Idle speed:1500mm/min

Working Speed:50-1500mm/min (different material with different speed settings)

Drive of Stepping motor0-3.5A adjustable four-axis drive(TB6560AHQchip, 24V power supply, 2,4,8,16Subdivision settings, Factory setting:8subdivided)

Repositioning precision:≤0.05mm

Speed:0-24000r/min

Cooling method:Water cooling,Matching heat dissipation water pump

Spindle precision:Radial runout≤0.03mm



Control box parameters:

Protection:Emergency stop button

Communication interface:through USB PORT connect with computer

Update function: with limit switch




ProductSiteLaunchDate : 2022-11-17T09:32:17.126Z
Size : Medium
Style : fashion
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 110 volts
