SpecificationBaseType : Fixed
Brand : Banfluxion
BulletPoint1 : [Material] This milling and drilling machine adopts an integrated spindle and brass gear, which is enduring.
BulletPoint2 : [1100W Brushless Motor] This milling and drilling machine has a strong brushless motor with low noise and long service life, which is easy to maintenance.
BulletPoint3 : [Worktable] The worktable of this milling and drilling machine has high precision positioning adjustment scale and can be moved back and forth and left and right. The head of this machine can tilt up to 90° both right and left.
BulletPoint4 : [Variable Speed] The spindle speed of this milling drilling machine is variable from 50-2250rpm, which can meet your different needs. This lathe machine just has a metric scale.
BulletPoint5 : [Application] This milling and drilling machine has multi-functions, which can be used for metal and wood processing, popular in machinery manufacturing, woodworking and home DIY.
Color : Bt30 1500w 6000rpm
DrillType : drill_press
ExternallyAssignedProductIdentifier1 : 840403795376
ExternallyAssignedProductIdentifier2 : 0840403795376
IncludedComponents : RCOG-25V drilling and milling machine, Drill chuck, Drill chuck retaining pin, English instruction manual, Parallel-jaw vice, Fork wrench (x2), Drill chuck wrench, Oil can, Cross screwdriver, Word screwdriver, Hexagon wrench (x5)
IncludedComponents1 : 400W Spindle motor*1
IncludedComponents2 : Speed controller*1
IncludedComponents3 : 52mm Spindle mount*1
IsElectric : 1

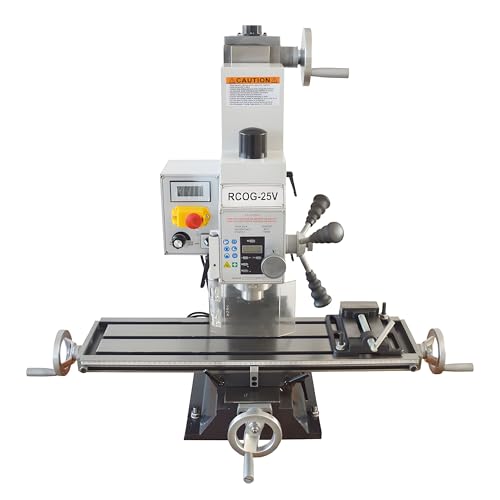

ItemName : BANFLUXION 110V RCOG-25V Milling and Drilling Machine Lathe, R8 Spindle Taper 1100W Brushless Motor Milling Drilling Machine 50-2250rpm for Metal, Wood and Plastic Processing Home DIY

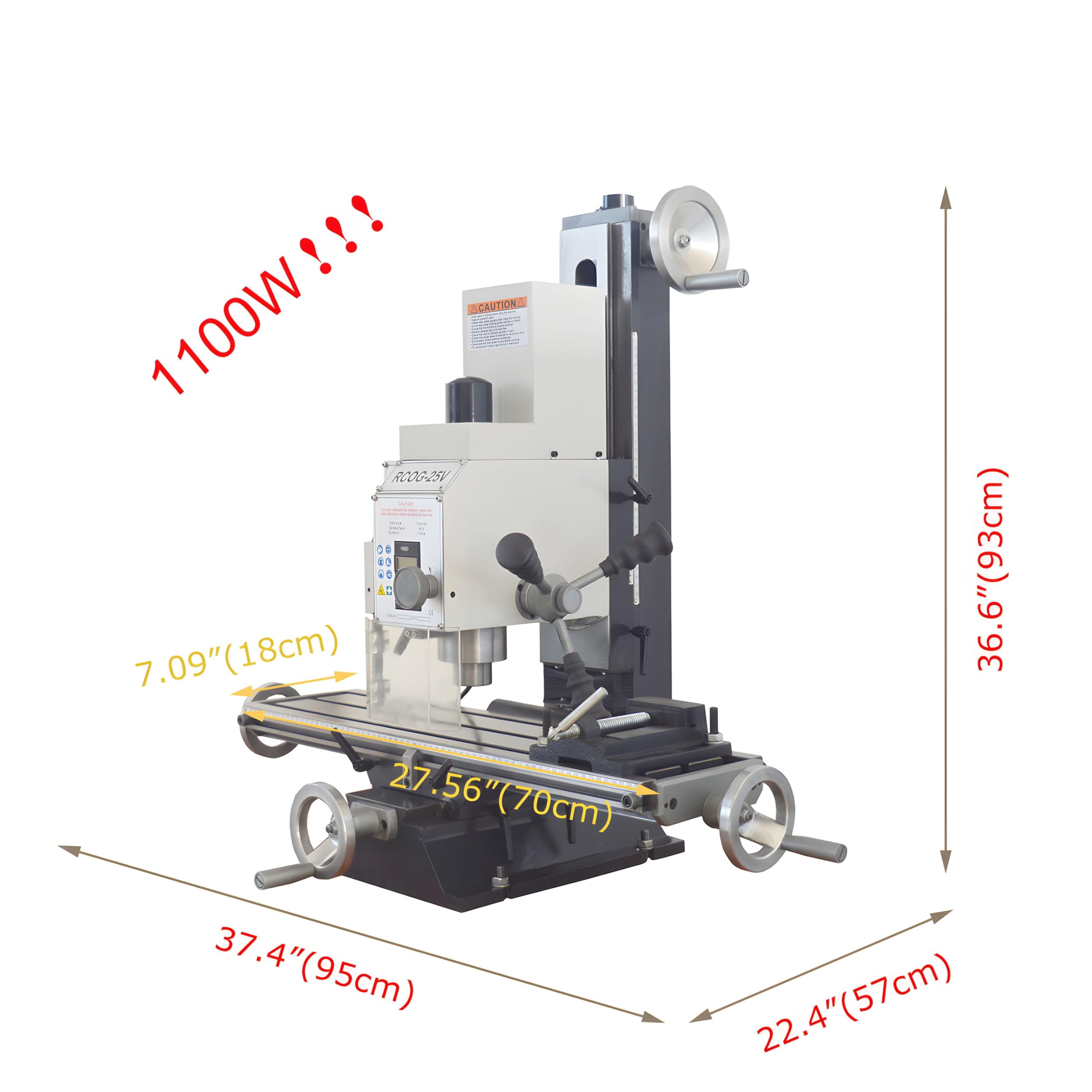

ItemPackageDimensions_Height : 37.4 inches
ItemPackageDimensions_Length : 35.43 inches
ItemPackageDimensions_Width : 22.44 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : Banfluxion
Material : Metal
MaximumChuckSize : 0.9 inches
MaximumPower : 1100 watts
MaximumRotationalSpeed : 2250 rpm
ModelName : QUALITY TILTIN
ModelNumber : RC 25
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfSpeeds : 2200
PartNumber : CB028334
PowerSourceType : Manual
ProductDescription :
This drilling and milling machine has rich functions, which can meet the metal, wood, plastic, Buddha beads and other finishing. It has features of all copper brushless motor, strong power, simple operation, durable and high processing accuracy and is the necessary machine of home DIY processing of various parts.
Product Parameters
Model: RCOG-25V
Voltage: AC110V/60Hz
Spindle taper: R8
Motor power: 1100W brushless motor
X axis stroke: 18.9"(480mm)
Y axis stroke: 6.9"(175mm)
Z axis stroke: 11"(280mm)
Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)
Max. drilling diameter: 0.9"(25mm)
Max. Face screening capacity: 2.5"(63mm)
Max. vertical milling capacity: 0.79"(20mm)
Distance from spindle to table: 13.8"(350mm)
Spindle stroke: 2"(52mm)
The Range of spindle speeds: 20-2250rpm
Table size: 27.5"*7.1"(700mm*180mm)
T groove width: 0.47"(12mm)
Gross weight: 312.4lb(142kg)
Item Included:
RCOG-25V drilling and milling machine *1
Drill chuck *1
Drill chuck retaining pin *1
English instruction manual *1
Parallel-jaw vice *1
Fork wrench *2
Drill chuck wrench *1
Oil can * 1
Cross screwdriver *1
Word screwdriver *1
Hexagon wrench *5
ProductSiteLaunchDate : 2024-04-18T05:33:49.757Z
Size : 4030Pro
Speed : 2250 rpm
Style : 400W-ER16
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
Voltage : 110 volts_of_alternating_current
Wattage : 1100 watts
