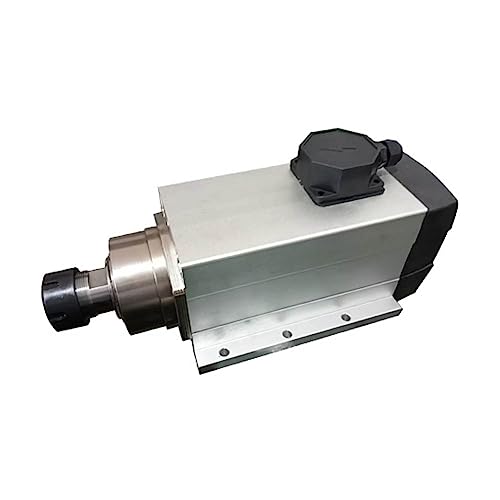

ATO CNC Spindle Motor 3 phase 380V Air Cooled CNC Spindle Motor, 7kW, 18000rpm 400Hz Spindle Motor, for CNC Router Machine (7.5kW, 18000rpm)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 195200/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : ATO.COM
BulletPoint1 : 【Parameters】ATO 7.5kW Air Cooled CNC Spindle Motor, 18000rpm Speed, Frequency 400Hz, Cooling Type: Air-cooled, Phase&Voltage: 3-phase 380V±10% AC
BulletPoint2 : 【Feature】Spindle motor with air cooling fan and ER32 collet ensures smooth running; fast response, strong overload capacity, low noise and high mechanical precision; Lubricated with grease, which is resistant to 200 degrees high temperature;Tight sealing and two-layer dustproof design
BulletPoint3 : 【Long Service Life】ATO cnc spindle motor, with P4 grade ceramic ball bearings used as spindle bearing, which improves the service life under high speed revolution
BulletPoint4 : 【Wide Application】This series air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, CNC router machine, and used for high speed profiling, drilling, cutting, engraving and groove milling of wood, metal, plastics, foam, rubber and other materials
BulletPoint5 : 【Installation Method】Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)
Color : Blue
ExternallyAssignedProductIdentifier1 : 0785869979499
ExternallyAssignedProductIdentifier2 : 785869979499
Horsepower : 7.5 kilowatts
IncludedComponents : 1*CNC Spindle Motor, 1*User Manual
ItemName : ATO CNC Spindle Motor 3 phase 380V Air Cooled CNC Spindle Motor, 7kW, 18000rpm 400Hz Spindle Motor, for CNC Router Machine (7.5kW, 18000rpm)
ItemPackageQuantity : 1
ItemTypeKeyword : power-milling-machines
Manufacturer : ATO
Material : 7.5kW, 18000rpm
ModelName : SPINDLE
ModelNumber : ATO-SPINDLE
NumberOfItems : 1
PartNumber : E239549
PowerSourceType : hydraulic_powered
ProductDescription :

ATO 18000 rpm/24000 rpm high speed spindle motor with ER11/ER20/ER25 collet, 800W/1500W/6kW/7.5kW power , works at 3 phase 220V/380V AC 400Hz power system. Air-cooled spindle motor is designed for wood carving CNC machine.


Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.


ATO Electric CNC Spindle Motors Specification:

Power: 800W/1.5 kW/2.2 kW/3.5 kW/4.5 kW/6 kW/7.5 kW(Optional)

Phase: Three phase

Speed: 24000 rpm/18000 rpm

Voltage: 3-phase 220V/380V±10% AC

Frequency: 400Hz

Number of Pole: 2 poles

Cooling Type: Air-cooled

Installation Method: Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.)

Certification: CE

Application: Woodworking & Plastic

Weight: 3 kg


ProductSiteLaunchDate : 2023-03-03T07:21:01.894Z
Size : 6 mm plate
Speed : 18000 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26101200
Voltage : 380 volts
