Specification
Amperage : 2.7 amps
BaseType : Fixed
Brand : AnoleX
BulletPoint1 : [Upgraded Φ65mm Trim Router] 800W trim router & Er11-1/8" collet with 6-speed settings (8000-24000 RPM). Can easily cut metals such as aluminum, copper, etc. Software-controlled run/stop functionality, with speed adjustment requiring manual dial control.

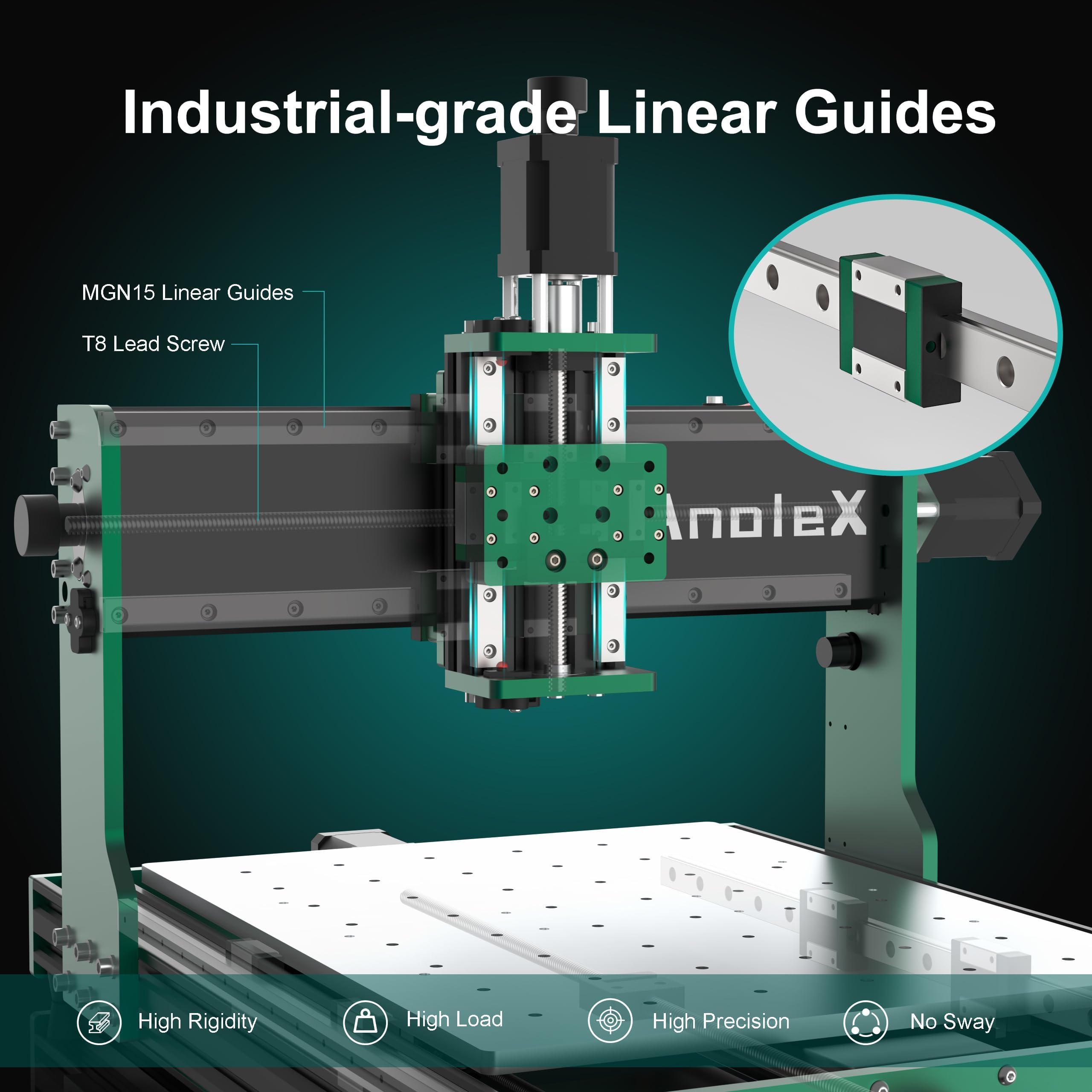

BulletPoint2 : [Dual Linear Guides & Upgradeable Ball Screws] Each axis (X, Y, Z) is equipped with MGN-15 dual linear guides and T8 lead screws. It has high precision, high rigidity and high load for metal cutting, and improved dust protection for X and Y axes. Especially upgradeable 1204 ball screw kit (Coming soon).
BulletPoint3 : [Grbl_ESP32 Firmware (GRBL 1.3a)] Optimized control board, runs on the latest GRBL 1.3a firmware, supporting advanced features such as laser engraving, 4th axis (Coming soon), M07/M08 coolant control, closed-loop stepper motor(Coming soon), and 3-pin touch probe.
BulletPoint4 : [Higher Torque Nema17 Stepper] The 3030-Evo Max employs a higher-torque 650mN·m motor compared to the common Nema17 motor (420mN·m), significantly enhancing its capability to process metallic materials. This increased torque output allows the ball screw and linear guide systems to fully realize their performance potential.
BulletPoint5 : [Customizable Macro Buttons & WiFi] Built-in 32-bit MCU with ESP3D Web UI, enabling control via PC, smartphone, or tablet without USB cable. Macro button defaul is homing, reprogrammable for tasks like pause/stop/reset or executing G-code from an SD card.
BulletPoint6 : [Software & Fully Functional] Compatible with Windows, Linux, and Mac, supporting GRBL-compatible software such as UGS, Fusion360, VCarve, Easel, and Lightburn etc.. Includes XYZ dual limit switches, home switch, emergency stop switch, Z probe tool.
BulletPoint7 : [Easy Assembly and User Support] Major components pre-assembled with clear cable management, accompanied by a detailed paper user manual and assembly/demo video for quick setup.
Color : Blue
DrillType : basic_drill
ExternallyAssignedProductIdentifier : 9010491800295
ExternallyAssignedProductIdentifier1 : 740170095696
ExternallyAssignedProductIdentifier2 : 0740170095696
GpsrSafetyAttestation : 1
IncludedComponents : CNC Router Machine
IncludedComponents1 : Cnc Router Machine
IncludedComponents2 : 500w Spindle
IncludedComponents3 : 3axis Grbl Conrol
IncludedComponents4 : Controller
IsElectric : 1
ItemName : AnoleX CNC Router Machine 3030-Evo Max, All-Metal XYZ Axis Dual Steel Linear Guides with 800W Trimmer Router, ideal for Cutting Aluminum, Brass, Stainless steel, Wood, Acrylic, MDF, Plastics
ItemPackageDimensions_Height : 55.88 centimeters
ItemPackageDimensions_Length : 25.654 centimeters
ItemPackageDimensions_Width : 45.466 centimeters
ItemPackageQuantity : 1
ItemShape : Circular
ItemTypeKeyword : power-milling-machines
Manufacturer : AnoleX
Material : Aluminum
Material1 : Aluminum
Material2 : Carbon steel
MaximumChuckSize : 16 millimeters
MaximumPower : 600 watts
MaximumRotationalSpeed : 11000 rpm
ModelName : 3030-Evo Max
ModelNumber : 3030-Evo Max
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfSpeeds : 1
PackageLevel : unit
PartNumber : 3030-Evo Max
Pattern : with Touchscreen offline controller
PowerSourceType : ac/dc
ProductDescription :

3030-Evo Max CNC Router Kit with a spindle speed of 24000RPM and a working area of 11.3*11.81*2.87inch (287*300*73mm), this machine has perfect function and rigidity, making it an ideal choice for CNC hobbyists looking to explore the world of CNC routing.

Work Area: 287x300x73mm
Overall Dimensions(LxWxH): 500x596x412mm
Firmware: Grbl 1.3a
Driver: TB67S109AFTG
Max Speed: 2000mm/min
Spindle: 800w Φ65mm Trim Router, 8000-24000RPM
Stepper: Nema 17

ProductSiteLaunchDate : 2024-01-01T08:00:00.000Z
Size : M3-M16 universal
Speed : 312 rpm
Style : rotary table hv6 with dividing indexing plate
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 27112700
Voltage : 110 volts
Wattage : 500 watts
