Specification
Brand : Agatige
BulletPoint : Microphone noise decibel sound sensor measurement modules 3p / 4p Interface for Arduino
BulletPoint1 : MICROPHONE BREAKOUT BOARD: The I2S is a small, low cost MEMS mic with a range of about 50Hz - 15KHz, good for just about all general audio recording / detection
BulletPoint2 : WIDE USE: This breakout is best used for projects such as voice changers, audio recording/sampling, and audio-reactive projects that use FFT, Purely digital, No analog conversion required
BulletPoint3 : FEATURES: Mics can detect sound and convert it to voltage, but they don't need a bias resistor or amplifier, its all in one
BulletPoint4 : THREE DIGITAL PINS: Instead of an analog output, there are three digital pins: Clock, Data and Left-Right (Word Select) Clock
BulletPoint5 : SINGLE MONO ELEMENT: The microphone is a single mono element. You can select whether you want it to be on the Left or Right channel by connecting the Select pin to power or ground
Color : #759
IncludedComponents : No

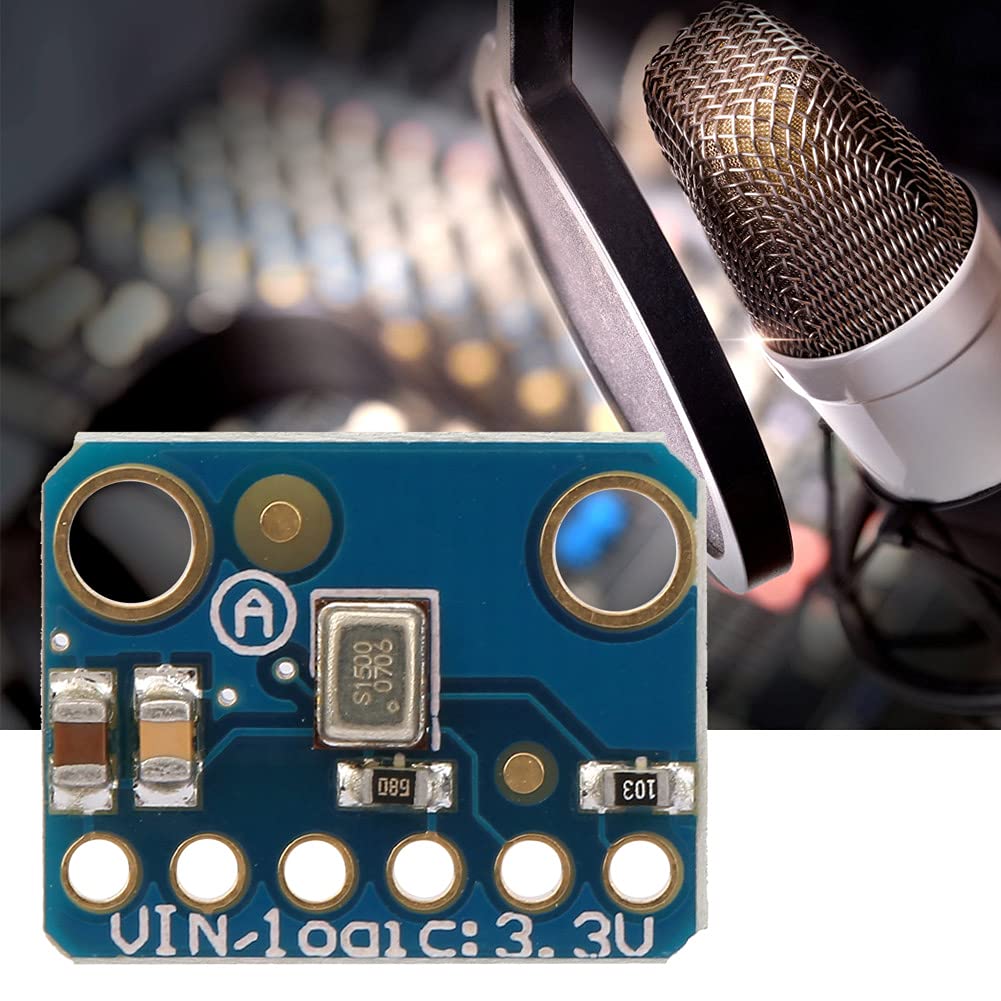

ItemName : Microphone Breakout Board, SPH0645 I2S MEMS Microphone Breakout, 50Hz-15KHz Microphone Breakout Module for All General Audio Recording Detection
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : microphone-elements
Manufacturer : Agatige
Material : Copper
ModelName : Agatigewbx4gurmt9
ModelNumber : Agatigewbx4gurmt9
NumberOfItems : 1
PartNumber : Agatigewbx4gurmt9
ProductDescription : Features:
The I2S is a small, low cost MEMS mic with a range of about 50Hz - 15KHz, good for just about all general audio recording / detection.
Instead of an analog output, there are three digital pins: Clock, Data and Left-Right (Word Select) Clock.
When connected to your microcontroller/computer, the 'I2S Master' will drive the clock and word-select pins at a high frequency and read out the data from the microphone.
The microphone is a single mono element. You can select whether you want it to be on the Left or Right channel by connecting the Select pin to power or ground.

Specification:
Condition: 100% brand new
VIN/logic: 3.3V

Package List:

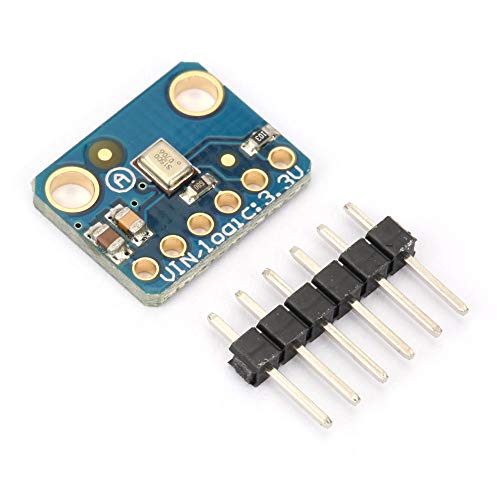

1 x Microphone Breakout Board

Note:
This I2S MEMS microphone is bottom ported, so make sure you have the hole in the bottom facing out towards the sounds you want to read. It's a 1.6-3.6V max device only, so not for use with 5V logic (its really unlikely you'd have a 5V-logic device with I2S anyways). Many beginner microcontroller boards don't have I2S, so make sure its a supported interface before you try to wire it up! This microphone is best used with Cortex M-series chips like the Zero, M0, or single-board computers.

ProductSiteLaunchDate : 2024-08-22T13:15:45.635Z
UnspscCode : 52161520
