Specification
Brand : Baomain
BulletPoint1 : Actuator Action : Momentary；Actuator Type: Hinge Lever;
BulletPoint2 : Contact Type : SPDT 1NO 1NC 1 Com; Termination Type: 3 Screw Terminals;
BulletPoint3 : Mounting Type: Panel Mount; Ui: AC 250V; Ith: 15A；
BulletPoint4 : Switch Body Size: 49 x 17 x 24mm / 1.93" x 0.67" x 0.95" (L*W*H);
BulletPoint5 : Fixing Holes Dia. : 4mm / 0.16“; Distance Between Centers of Fixing Holes : 25.4mm / 1";
BulletPoint6 : Material: Plastic,Metal; Protection Level: IP 40; Weight : 35g；
BulletPoint7 : Package Contect: 1 x Micro Switch;
CircuitType : 1-way
Color : Black
ConnectivityProtocol : X-10
ConnectorType : Plug In
ControllerType : Push Button
CurrentRating : 15 amps
ExternallyAssignedProductIdentifier1 : 0753525835878
ExternallyAssignedProductIdentifier2 : 753525835878
InternationalProtectionRating : IP40

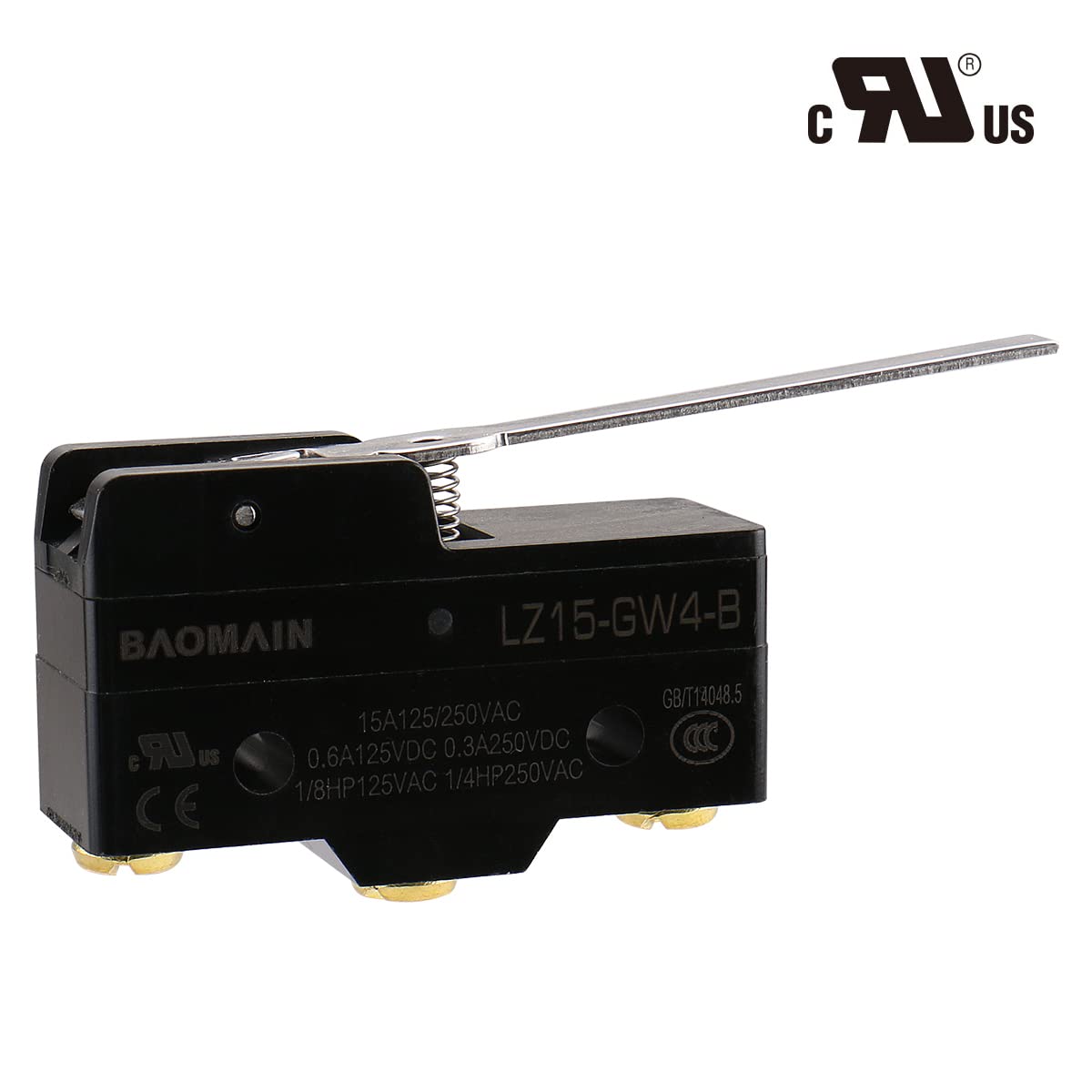

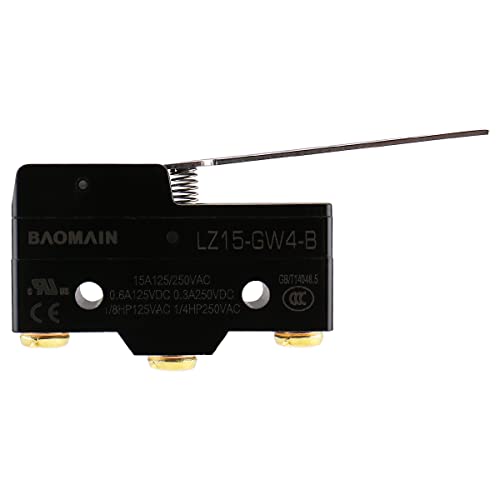

ItemName : Baomain Micro Switch Long Hinge Lever 15A 250VAC SPDT 1NO 1NC Z15-GW4-B Momentary Micro Push Button Switch UL CE Listed
ItemPackageDimensions_Height : 32 millimeters
ItemPackageDimensions_Length : 52 millimeters
ItemPackageDimensions_Width : 18 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : micro-switches
LightType : Non-Illuminated
LowerTemperatureRating : -25 degrees_celsius
Manufacturer : Baomain
Material : Copper
Material1 : Plastic
Material2 : Metal
MountingType : Panel Mount
NumberOfItems : 1
NumberOfPositions : 1
OperatingVoltage : 250 volts
OperationMode : ON-OFF
PartNumber : Z15-GW4-B
ProductDescription :
PRODUCT FEATURES

3 screws terminals for wires fixing use, can be applicable to both AC control circuits and DC control circuits.

This Micro Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.

It can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection.

Safe and reliable, small installation size ,the products are for general use.

Application: They are widely used in Machinery,production line,elevator equipment.

PRODUCT PARAMETERS

【Operating speed】0.01mm-1m/s.

【Operating frequency】Mechanical: 240 operations/min, Electrical: 20 operations/min.

【Initial insulation resistance】 100MΩmin.(at 500VDC).

【Initial contact resistance】 25MΩ Max.

【Dielectric Strength】

Between non-consecutive terminals: 1,000Vrms, 50/60Hz for 1 min.

Between non-current carrying metal parts and each terminal: 2,000Vrms, 50/60Hz for 1 min.

Between ground and each terminal：2,000Vrms, 50/60Hz for 1 min.

【Vibration resistance】10-55Hz,1.5mm double amplitude.

【Max.shock resistance】Destruction: 1000m/s2, Malfunction: 300m/s2

【Operating Mechanical life】 2,000,000 operations min.

【Operating Electrical life】100,000 operations min.

ProductSiteLaunchDate : 2015-04-10T07:00:00.000Z
SpecificationMet : RoHS
SpecificationMet1 : UL
SpecificationMet2 : CE
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Micro Switch
TerminalType : Screw
UnitCount : 1
UnspscCode : 39122216
UpperTemperatureRating : 85 degrees_celsius
