Specification
Brand : WYDDDARY
BulletPoint1 : 【Dual Chuck System】 The WM210V bench lathe features a dual chuck system with a 4.92" chuck on the right and a 3.54" chuck on the left. This allows for simultaneous machining and enhanced processing accuracy, making it ideal for precision metalworking projects.
BulletPoint2 : 【Variable Speed Control】 With an infinitely variable speed range of 50-2500 RPM, this benchtop lathe offers flexibility for different materials and projects. Easily adjust the speed to meet your specific needs, whether you're turning, facing, drilling, boring, or thread cutting.
BulletPoint3 : 【Large Spindle Through Hole】 The WM210V bench lathe is equipped with a 1.26" spindle hole, enabling convenient processing of longer parts. Insert and work on shafts and pipes with ease, enhancing overall operational efficiency and expanding the scope of your projects.
BulletPoint4 : 【Scale and Precision】 This precision metal lathe comes with a telescopic handle that includes a built-in scale. This allows for precise and standardized length measurements, ensuring accuracy and consistency in your turning, facing, drilling, and thread cutting tasks.
BulletPoint5 : 【Durable Construction】 Built with all-metal gears, a metal shell, and a metal handwheel, the bench lathe guarantees durability and longevity. The high-frequency quenching process further enhances the quality of the cast iron bed, ensuring reliable performance over time.
BulletPoint6 : 【Enhanced Power and Capacity】Its 8"(210mm) swing over bed.Boasting a robust 1100W(1.5HP) motor,This metal processing lathe can handle various medium to large projects.This metal lathe has a 32"(800mm) centre length for a larger workspace.
ExternallyAssignedProductIdentifier1 : 0840403773060
ExternallyAssignedProductIdentifier2 : 840403773060

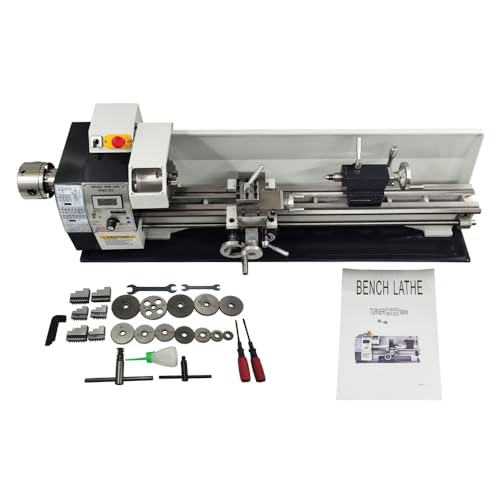

ItemName : WYDDDARY Double Head Double Chuck 8"x32" MINI Precision Metal Bench Lathe Spindle taper MT5 Benchtop Lathe Bench 1100W DIY Brushless Motor Variable Speed Mini Lathe WM210V 110V
ItemPackageDimensions_Height : 20.08 inches
ItemPackageDimensions_Length : 55.12 inches
ItemPackageDimensions_Width : 18.5 inches
ItemTypeKeyword : power-metal-lathes
Manufacturer : WYDDDARY
PartNumber : CD028348
ProductDescription : Product Overview
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread.

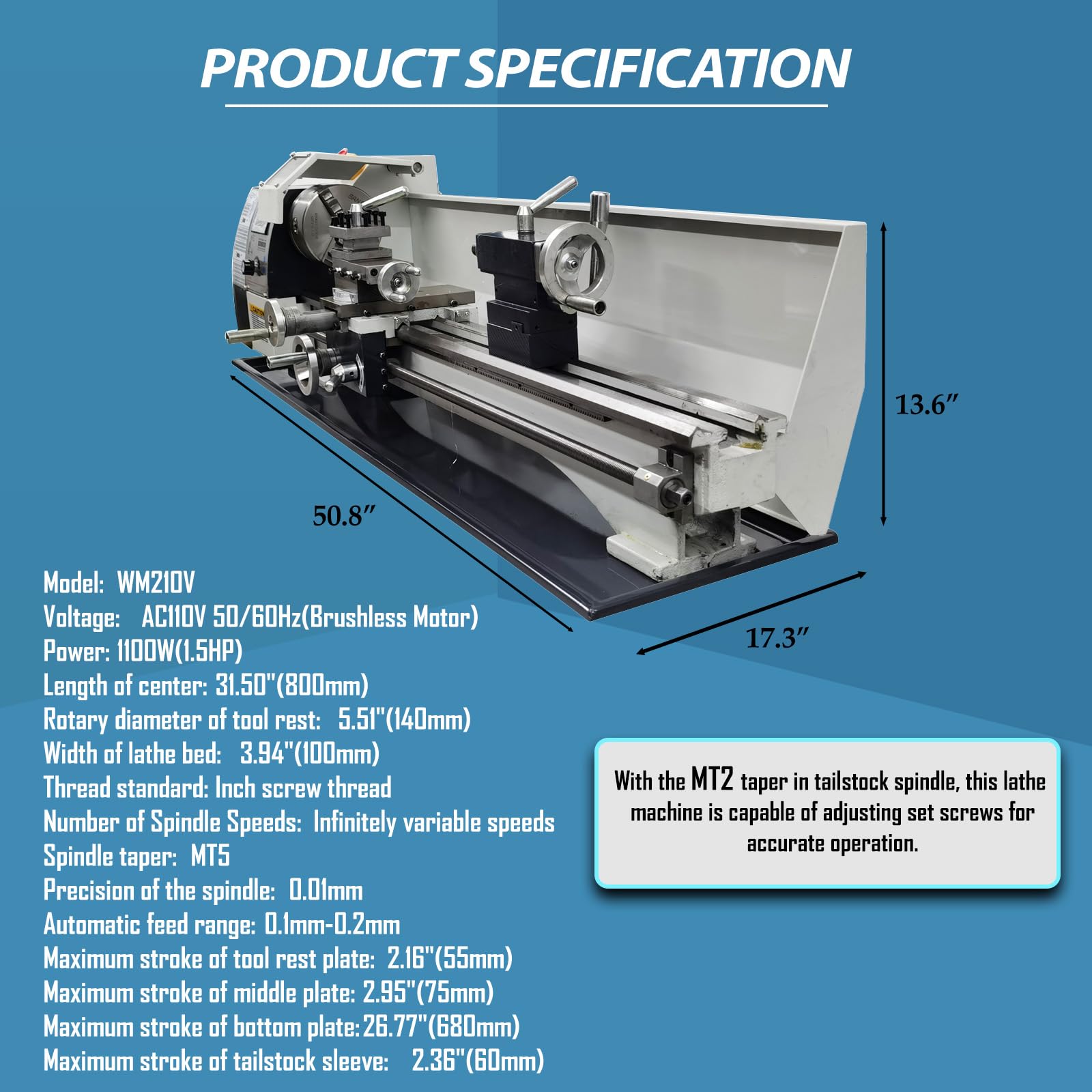

Product Parameters
Model: WM210V
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.54"(90mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Inch screw thread
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.3mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)
Net weight/Gross weight: 172.0LB(78kg)/220.5LB(100kg)

ProductSiteLaunchDate : 2023-12-25T02:58:56.117Z
Size : Double Chuck 8"x32"
