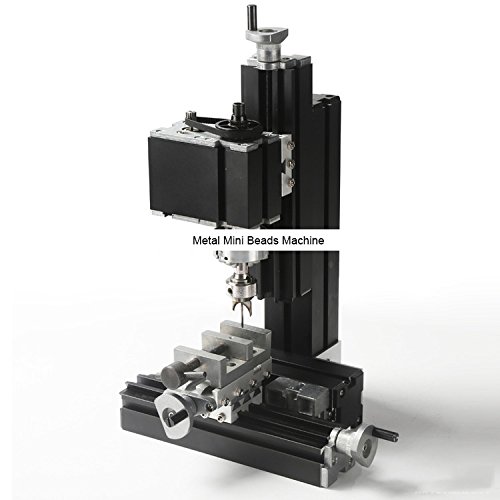

Specification Amperage : 5 amps Brand : MUCHENTEC BulletPoint : TZ20005MF 60W Metal Mini Beads Machine/60W,12000rpm Powerful Mini Beads lathe ExternallyAssignedProductIdentifier1 : 0758762766091 ExternallyAssignedProductIdentifier2 : 758762766091 ItemName : TZ20005MF 60W Metal Mini Beads Machine/60W,12000rpm Powerful Mini Beads lathe ItemPackageDimensions_Height : 35 centimeters ItemPackageDimensions_Length : 20 centimeters ItemPackageDimensions_Width : 25 centimeters ItemTypeKeyword : power-metal-lathes Manufacturer : MUCHENTEC MaximumPower : 60 watts ModelNumber : TZ10002M PartNumber : MCT-L17190 ProductDescription : TZ20005MF 60W Big Power Metal Beads Machine
Features: 1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. It can process beads. 2. Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blade, gear, connection piece, vice etc.
All of the parts are made of metal.
Technical parameters: 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min) 2.Input voltage/current/power:12VDC/5A/60W 3. Working material: wood, lignin plastic 4.Maximum working material size clamped by three-jaw chuck:50mm 5.The transformer has over-current protection ,over-voltage protection, over-heating protection . 6.With 0.02mm scale line ,the handwheel increases the precision when processing. 7.Motor power :144W 8.Maximum working material diameter clamped by vice:50mm 9.Between slider space ,there is plastic elastic material to adjust the precision. 10. Axis Y travel:30mm, Axis X /Z travel :145mm 11. Working material: wood, plastic, acrylic, soft metal(gold, silver, copper, aluminum etc.) 12.Maximum beads diameter:20mm 13. The flank and front of the beads blade are dangerous ,so people need to be guided by the professional when using it.
