Specification
Brand : TECHTONGDA
BulletPoint1 : 【Professional & Versatile Use】: This gearless electronic lathe features automatic switch between metric and inch threads for efficient operation, ideal for all kinds of machining including wood and metal working, turning, drilling, and threading.
BulletPoint2 : 【High-Powered Brushless Motor】: Equipped with a newly upgraded 1100W brushless motor, delivering more power while eliminating the need for brush replacement, designed for long-lasting and uninterrupted use.
BulletPoint3 : 【Double Chuck】: Available with 4.9 "size chuck and 3.54" size chuck. The concentricity is up to 0.03-0.05mm. Designed for the processing of longer objects, such as cue stick, especially in the processing of shafts and pipe fittings with high precision.
BulletPoint4 : 【Topmost Safety Standards】: The lathe is designed with an emergency stop switch and an overload protection device, prioritizing the safety of the operator in the event of emergencies. Built with all metal gears supported by precision taper roller bearing, ensuring high-quality, durable and efficient operation.
BulletPoint5 : 【Variable Speed & Direction Control】: Features a spindle speed adjustment ranging from 50-2500rpm and both forward and reverse motion, allowing you the flexibility to process the workpiece as per your need.
ExternallyAssignedProductIdentifier1 : 0840403725540
ExternallyAssignedProductIdentifier2 : 840403725540
IncludedComponents : Wrench

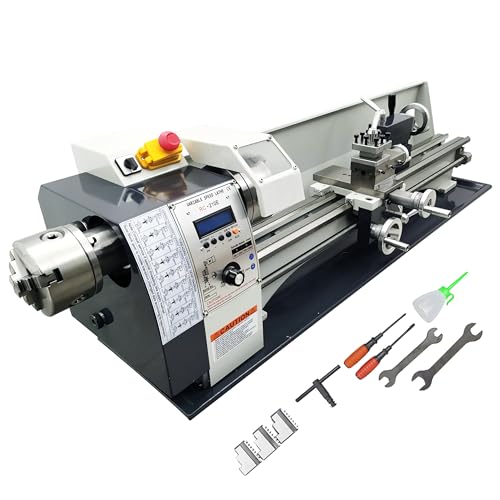

ItemName : TECHTONGDA Metal Lathe Precision Double Chuck Bench Lathe 8X31” Gearless Lathe Machine Electronic Leadscrew Automatic Thread 1100W Brushless Motor DIY Mini Lathe for Cue Stick
ItemPackageDimensions_Height : 20.1 inches
ItemPackageDimensions_Length : 55.1 inches
ItemPackageDimensions_Width : 18.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-metal-lathes
Manufacturer : TECHTONGDA
Material : Metal
ModelNumber : L028364
PartNumber : L28364
PowerSourceType : ac
ProductDescription : This is a new type of double chuck lathe, equipped with two high concentricity chuck, so that it is more competent for the processing of long rod material, such as Cue Stick, popular among DIY enthusiasts.
Parameter:
Voltage: 110V 60Hz
Power: 1100W Brushless Motor
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm) and 1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.54"(90mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 55.1*18.5*20.1"(140*47*51cm)
Shipping weight: 220.5LB(100kg)
ProductSiteLaunchDate : 2024-04-20T01:43:56.645Z
Voltage : 110 volts
Wattage : 1100 watts
