Features:
Suitable for DIY use or teaching use, not suitable for commercial use and large-scale production
Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.

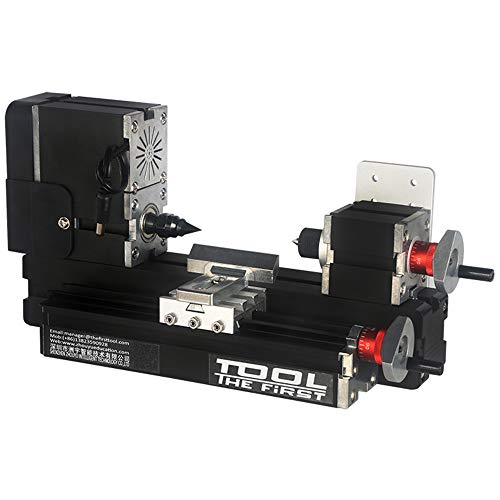

Main parts: headstock, motor blade, tailstock, long machine bed, big slider, woodturning chisel base, connection piece, gear, drive belt cover etc. All of the parts are made of metal except drive belt cover.
Softwood, hardwood can be processed.
Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center- 135mm.
Parameters:
Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
Input voltage/current/power:12VDC/5A/60W
Maximum working material diameter: 45mm
Working material length:135mm
Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.).
The transformer has over-current protection, over-voltage protection, over heating protection.
With 0.02mm scale line ,the hand wheel increases the precision when processing.
Motor power : 144W
Package Including:
1 x DIY Milling machine
1 x Power supply
ProductSiteLaunchDate : 2020-01-03T08:00:00.000Z
Speed : 12000 rpm
Wattage : 60 watts
