Feature:
Suitable for DIY use, teaching use; not suitable for large-scale production and commercial use, mainly for model manufacturing
Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.
Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blades, connection piece, radial arm, drilling table, gear etc. All of the parts are made of metal.
Working material: wood, soft metal(copper, aluminum etc.),acrylic, plastic etc.
Parameter:
Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
Input voltage/current/power:12VDC/5A/60W
Axis Y /Z travel :32mm
Axis X travel :145mm
Collects: 1-6mm
Working table size: 123*100mm
Working material: lignin plastic, soft metal(gold, silver, copper, aluminum etc.)
With 0.02mm scale line ,the hand wheel increases the precision when processing.
Accuracy: 0.07mm
Motor power :144W
Weight:6.0kg
Package Including:

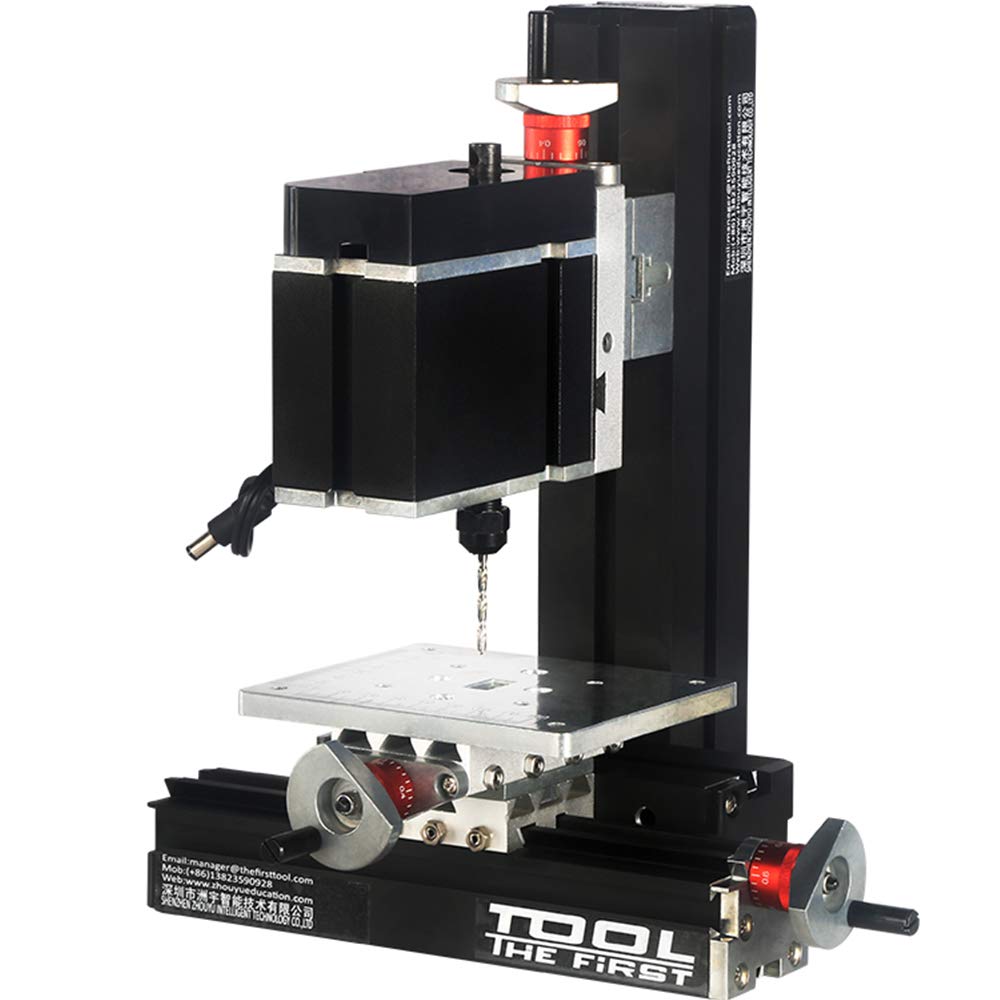

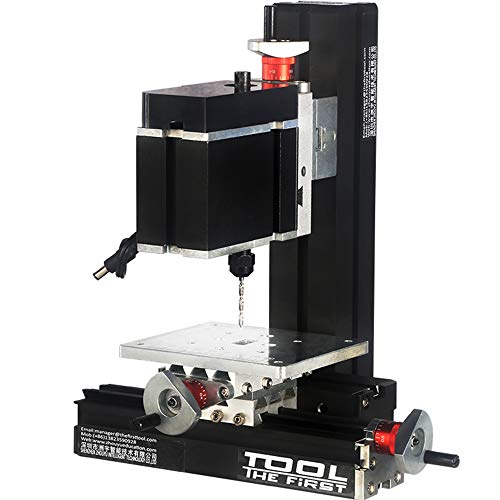

1 x DIY Micro Drilling Machine
1 x Power line
ProductSiteLaunchDate : 2020-01-03T08:00:00.000Z
Wattage : 60 watts
