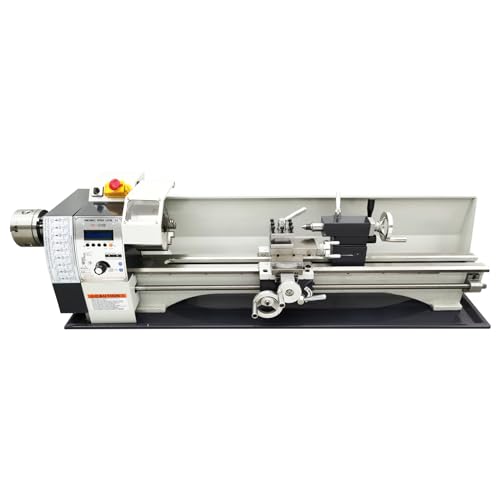

HayWHNKN Metal Lathe 8x32” Double Chuck Precision Metal Bench Lathe Gearless Electronic Lathe Automatic Feed Power Metal Lathe DIY Lathe 1100W Brushless Motor 110V

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 376800/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : HayWHNKN
BulletPoint1 : [Self-acting Feed]Self-acting feed design enables automatic feed speed adjustment from 0.01mm to 0.4mm, and can set self-acting feed speed through the panel, greatly improve the machining accuracy and efficiency.
BulletPoint2 : [Gearless Electronic Lathe]Equipped with two chucks on the left side, with a concentricity of 0.03-0.05mm, this lathe in the Gearless Electronic Lathe category is ideal for processing longer objects with higher precision required, especially in shaft and pipe part processing.
BulletPoint3 : [Accurate Tailstock]The movable and fixed Tailstock features a maximum center distance of 31.5", with a MT#2 taper in the tailstock spindle for precise adjustment using set screws in the Automatic Feed Power Metal Lathe category.
BulletPoint4 : [Variable Speed]Spindle rotation speed is divided into two adjustable gears: 50-1250 rpm and 1250-2500rpm. Panel can observe the rotation speed in real time,which is convenient and flexible.
BulletPoint5 : [High Precision]The saddle handle, tailstock handle, and movable center feature precise metric scales for accurate and professional work in the Precision Metal Bench Lathe category.
CompatibleDevices : Vacuum Cleaner
CutType1 : Center Cutting
CutType2 : Taper
EndCutType : Center
ExternallyAssignedProductIdentifier : 7637949616158
ExternallyAssignedProductIdentifier1 : 0840403747078
ExternallyAssignedProductIdentifier2 : 840403747078
FinishType : Finish
IncludedComponents : RC-210E lathe *1, Base oil pan *1, English manual *1, Oil can *1, Hexagon wrench *5, Open spanner *2, The screwdriver *2, Chuck jaw *3, Chuck spanner *1
IncludedComponents1 : WM210V lathe * 1
IncludedComponents2 : Chuck jaw * 3, Open spanner *2, Gear *4 (40/50/60/72)
IncludedComponents3 : The screwdriver * 2, The fuse * 1, Hexagon wrench *5
IncludedComponents4 : Oil can * 1, Chuck spanner *1
ItemName : HayWHNKN Metal Lathe 8x32” Double Chuck Precision Metal Bench Lathe Gearless Electronic Lathe Automatic Feed Power Metal Lathe DIY Lathe 1100W Brushless Motor 110V
ItemPackageDimensions_Height : 21 inches
ItemPackageDimensions_Length : 56 inches
ItemPackageDimensions_Width : 19 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : power-metal-lathes
Manufacturer : HayWHNKN
Material : Polyurethane (PU)
ModelNumber : S028364
NumberOfItems : 1
PartNumber : S028364
PowerSourceType : PowerSource
ProductDescription : Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 31.50"(800mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: Right side: 1.50"(38mm)
Left side: 1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.54"(90mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)
Net weight/Gross weight: 178.5LB(81kg)/220.5LB(100kg)
ProductSiteLaunchDate : 2024-04-26T06:23:38.381Z
Size : 8"x 24"
SupplierDeclaredDgHzRegulation : not_applicable
ToleranceHeld : Precision
UnitCount : 1
Voltage : 110 volts
Wattage : 1100 watts
