Specification
AgeRangeDescription : adult
Brand : Emoshayoga
BulletPoint1 : FOR AIR PUMPS: Air coupler fast connector is used for compressors, air pumps and some machines, etc., very practical
BulletPoint2 : GOOD AIR TIGHTNESS: Pneumatic manifold air distribution block is easy to install, no air leakage, possess good air tightness
BulletPoint3 : WIDELY USED IN ENGINEERING PROJECTS: Widely used in engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering
BulletPoint4 : HIGH PRESSURE : Working pressure from 0~0.9Mpa(0~0.92kfg/cm²), pressure is 1.0MPA (10kgf/cm²), possess high pressure
BulletPoint5 : Made of good quality aluminum material, resistant, no , with good strength
Color : 4 Way 6 Port
ExternallyAssignedProductIdentifier : 7634417809210

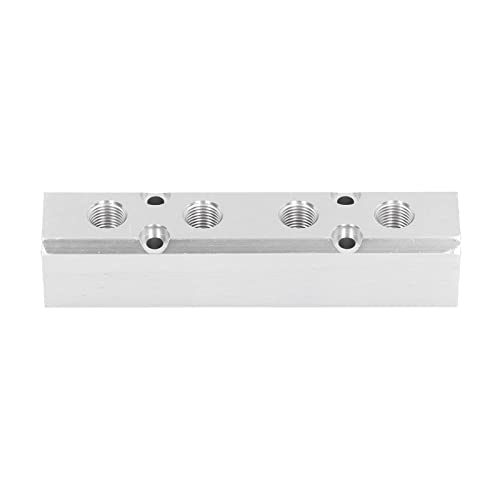

ItemName : Manifold Air Distribution Block, G1/2 Input G1/4 Output Quick Plug Non Manifold Block Splitter for Pumps (SY30-02-4F)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : manifold-fittings
Manufacturer : Emoshayoga
ModelName : Emoshayogag0g6qwe5ya-12
ModelNumber : Emoshayogag0g6qwe5ya-12
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Emoshayogag0g6qwe5ya-12
ProductDescription : 1. Made of good quality aluminum material, resistant, no , with good strength
2. GOOD AIR TIGHTNESS: Pneumatic manifold air distribution block is easy to install, no air leakage, possess good air tightness
3. WIDELY USED IN ENGINEERING PROJECTS: Widely used in engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering
4. HIGH PRESSURE : Working pressure from 0~0.9Mpa(0~0.92kfg/cm²), pressure is 1.0MPA (10kgf/cm²), possess high pressure
5. FOR AIR PUMPS: Air coupler fast connector is used for compressors, air pumps and some machines, etc., very practical

Specification:
Item Type: Pneumatic Manifold Air Distribution Block
Material: Aluminum
Pressure : 1.0MPA(10kgf/cm²)
Working Pressure: 0~0.9Mpa(0~0.92kfg/cm²)
Adaptation Temperature: 0~60℃
Model Total Length(approx.) Positions/Holes Length x Width(approx.) Main Air Pipe Branch Branch Center Hole Diameter Mounting Hole Diameter Vertical Mounting Hole Center Spacing Horizontal Mounting Hole Center Spacing
SY30-02-3F 106mm / 4.17in 3 Position 5 hole 30 x 30mm / 1.18 x 1.18in G1/2 (approx.20mm / 0.79in) G1/4 (approx. 12mm / 0.47in) Approx.32mm / 1.26in Approx.5.2mm / 0.2in Approx.20.5mm / 0.81in Approx.32mm / 1.26in
SY30-02-4F 138mm / 5.43in 4 Position 6 hole Approx.64mm / 2.52in
SY30-02-5F 170mm / 6.69in 5 Position 7 hole Approx.96mm / 3.78in

PackageList:
1 x Pneumatic Manifold Air Distribution Block

Notice:
1. Do not unplug and insert the air pipe frequently during the use of the connector, which will affect the service life of the connector and air pipe.
2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage.
3. When pulling out the air pipe, first confirm that there is no pressure in the tube, press the end cap of the joint to the end
ProductSiteLaunchDate : 2024-10-21T10:50:53.924Z
Size : SY30-02-4F
UnitCount : 1
UnspscCode : 53120000
