AgeRangeDescription : Adult
Brand : Agatige
BulletPoint : Pack Of 4
BulletPoint1 : Manifold block: This 40 x 40mm air manifold block has G1/2 inlet and G1/4 outlet, which can effectively distribute air.
BulletPoint2 : Tight sealing: The pneumatic block of the air manifold ensures a secure sealing without leakage and stable operation within the range of 0 to 0.9Mpa. Pressure resistance: 1.0MPA, suitable temperature: 0-60 ℃.
BulletPoint3 : Pure aluminum material: The air manifold is made of pure aluminum material, which is not easy to rust, corrosion-resistant, and has a long service life. The pipeline inserted into the joint needs to be inserted into the bottom of the joint to avoid the possibility of air leakage.
BulletPoint4 : Easy to install: The air manifold is lightweight and compact in size, making it easy to install in just a few minutes. Efficient and durable, stable performance, easy installation, and sustainable use.
BulletPoint5 : Widely used: Air manifolds are widely used in factories, automation equipment, automotive repairs, electronics, electrical engineering, and more.
Color : default
ExteriorFinish : Aluminum
ItemName : Air Manifold, Manifold Block Large Flow Aluminium Pneumatic Block Air Distribution Block Air Hose Manifold Pneumatic Block 40x40mm G1/2 Inlet G1/4 Outlet (SY40-02-3F)
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 4 inches
ItemPackageDimensions_Width : 2 inches
ItemPackageQuantity : 1
ItemTypeKeyword : manifold-fittings
Manufacturer : Agatige
Material : Aluminum
ModelName : Hyuduor5k1hunsf6-11
ModelNumber : KANDAM250723001900102
NumberOfItems : 1
NumberOfPieces : 4
PartNumber : Agatigeuost9xq6iy-11
ProductDescription : Specification:

Item Type: Air Manifold
Material: Aluminium
Pressure Resistance: 1.0MPA (10kgf/cm)
Working Pressure: 0~0.9Mpa(0~0.92kfg/cm²)

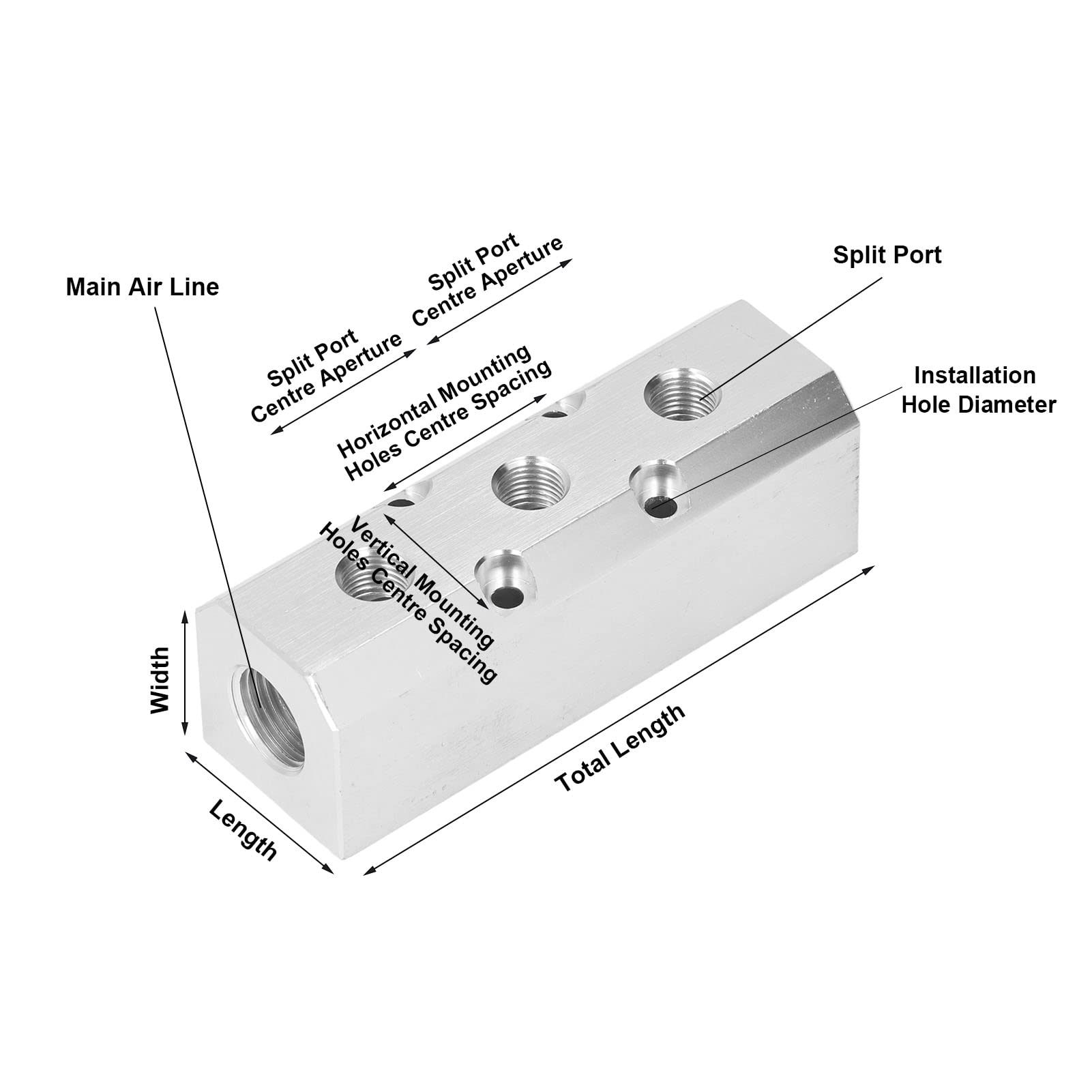

Adaptive Temperature: 0~60℃ModelTotal Length(Approx.)Way and PortLength x Width(Approx.)Main Air Line(Approx.)Split Port(Approx.)Split Port Centre Aperture(Approx.)Mounting Hole Diameter(Approx.)Vertical Mounting Holes Centre Spacing(Approx.)Horizontal Mounting Holes Centre Spacing(Approx.)SY40-02-3F120mm / 4.72in3 Way 5 Port40 x 40mm / 1.57 x 1.57inG1/2
(20mm / 0.79in)G1/4
(12mm / 0.47in)35mm / 1.38in5.5mm / 0.22in29mm / 1.14in35mm / 1.38inSY40-02-4F155mm / 6.1in4 Way 6 Port70mm / 2.76in


Package List:1 x Air Manifold
Note:1. Do not unplug and insert the air tube frequently during the use of the connector, which will affect the service life of the connector and air tube.2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage.3. When pulling out the air tube, first confirm that there is no pressure in the tube, then press the end caps of the joint to the end and pull out the air tube.
ProductSiteLaunchDate : 2023-08-03T11:00:50.412Z
Size : SY40-02-3F
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 4
UnspscCode : 25170000
