Specification
Brand : Consfly

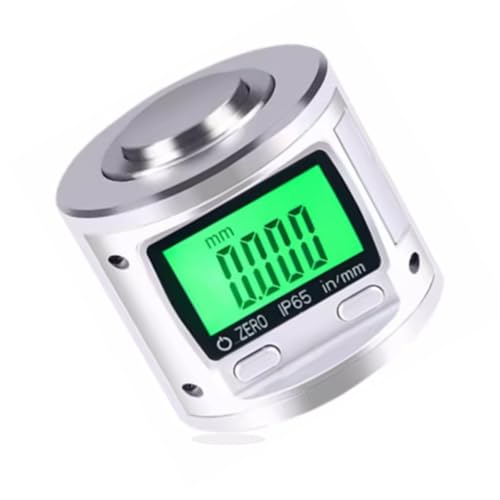

BulletPoint1 : Digital Screen: Compared with traditional tool setting methods, the z axis zero setter has a digital screen with light for stable performance. It has a conversion button so that you can select the appropriate counting unit as required. It is easy to read and can be accurate to 0.00001inch. It can reduce manual error and ensure the consistency of measurement results.
BulletPoint2 : Large Measuring Surface: The measuring height of the z axis tool setter is 2 inches and the diameter of the measuring surface is 0.98 inches, which is suitable for testing tools with a diameter of up to 0.98 inches. It is very flexible and can meet your various processing needs.
BulletPoint3 : Safe Work: The measuring surface of the cnc tool setter is spring-loaded with low elasticity. It can protect the tool and effectively prevent it from being damaged or broken. There are 4 strong magnets on the bottom of the machine, so you can fix it on the metal workpiece to prevent sliding.
BulletPoint4 : With Calibration Bar: This z axis tool setter comes with a 1.97 inches metal calibration bar. Before tool setting, you can use it to press the measuring surface. Then rotate the outer ring of the dial to return the needle to zero, which is very convenient.
BulletPoint5 : With Storage Case: The z axis zero setter is equipped with a shock-resistant storage case, which makes it easy to store and move the machine. It can prevent damage to the machine and avoid inaccuracies.
BulletPoint6 : Wide Application: The cnc gauge setter can be used to measure and correct the height of the z-axis. It is not limited by the material of the workpiece, which makes it highly applicable. Suitable for horizontal CNC lathe, milling machine and other high-precision processing equipment tools.
IncludedComponents : Z axis setter*1 (no battery); Calibration bar*1; Storage case*1; Screwdriver*1
ItemName : Consfly Digital Z Axis Zero Setter CNC Tool Setter with Calibration Bar, CNC Gauge Setter for CNC Lathe Milling Machine 0.0005” Accuracy 2” Height
ItemPackageDimensions_Height : 3.15 inches
ItemPackageDimensions_Length : 3.54 inches
ItemPackageDimensions_Width : 3.54 inches
ItemPackageQuantity : 1
ItemTypeKeyword : magnetic-bases
Manufacturer : Consfly
MeasurementAccuracy : 0.01mm
ModelName : FILFEEL3xt6hbke18
ModelNumber : LLW-002
NumberOfItems : 1
PartNumber : LLW-002
ProductDescription : Specifications

Product Name: Z axis zero setter
Height: 2 inches（50mm）
Accuracy: 0.0005 inches（0.01mm）
Resolution: 0.00001 inches / 0.001mm
Measuring Surface Diameter: 0.98 inches(25mm）
Working Temperature: 0-104 ℉
Number of Bottom Magnets: 4
Product Weight: 0.93 pounds
Product Size: 2.17 * 2.17 * 2.05 inches
Packaging Weight: 4.4 pounds
Packaging Size: 3.54 * 3.54 * 3.15 inches
Application: Tool diameter ≤ 0.98 inches；Horizontal lathe, milling machine and other equipment


Usage

1. ZERO button: Short press the button can control the machine on and off, long press the button can return the machine to zero.
2. Short press the ZERO button to turn on the machine.
3. Press the calibration bar onto the standard surface of the machine and press on the ZERO button for 3 seconds to return the machine to zero. At the same time, the screen light will be on. If it does not light up, the machine has not returned to zero.
4. Remove the calibration bar and place the machine on the workpiece.
5. Adjust the tool to contact the measuring surface of the z axis zero setter.
6. Slowly move the tool until the display reads “0”, then the distance between the tool and the workpiece is 2 inches(50mm).


Notes

1. You need to use the machine with your own CR2032 battery.
2. The z axis setter can only be used in the horizontal plane, not side suction or reverse suction.
3. Please should not disassemble the machine to avoid inaccurate measurement.
4. The machine will automatically power off if it is not operated for about 5 minutes.
5. If you do not use the z axis setter for a long time, please take out your battery.
6. Please avoid exposing the machine to sunlight.
7. Please avoid water ingress into the machine.


Packaging List

Z axis zero setter * 1 (no battery)
Calibration bar * 1
Storage case * 1
Screwdriver * 1
