Product Information
Editorial Review
Features:Constant voltage mode power supplyUniversal AC input/Full rangeEpoxy encapsulated with IP67 levelWithstand 300VAC surge input for 5 secondsProtections: Short circuit/Over current/Over voltageFully isolated plastic caseCooling by free air convectionSmall and compact sizeUL1310 ass LPS100% full load burn-in testLow cost, high reliabilitySuitable for LED lighting and moving sign applications2 years warrantySpecification:MODEL:LPV-20-12DC VOLTAGE:12VCURRENT RANGE:0~1.67ARATED CURRENT:1.67ARATED POWER:20WRIPPLE & NOISE (max.)Note.2:120mVp-pVOLTAGE TOLERANCE Note.3:5.0%LINE REGULATION:1.0%LOAD REGULATION:2.0%SETUP, RISE TIME NOTE.6:500ms, 20ms/230VAC 500ms, 20ms/115VAC at full loadHOLD UP TIME (Typ.):50ms/230VAC 16ms/115VAC at full loadVOLTAGE RANGE:90~264VAC 127~370VDCFREQUENCY RANGE:47~63HzEFFICIENCY (Typ.):81%AC CURRENT (Typ.):0.55A/115VAC 0.35A/230VACINRUSH CURRENT(Typ.):COLD START 35A/115VAC 70A/230VACLEAKAGE CURRENT:0.25mA/ 240VACOVER CURRENT:110~150% rated output powerProtection type : Hiccup mode, recovers automatically after fault condition is removedOVER VOLTAGE:13.8~16VProtection type : Shut off o/p voltage, clamping by zener diodeWORKING TEMP:-30 ~ +70 (Refer to output load derating curve)WORKING HUMIDITY:20~90% RH non-condensingSTORAGE TEMP., HUMIDITY:-40 ~ +80 , 10 ~ 95% RHTEMP. COEFFICIENT:0.03%/(0~50 )VIBRATION:10~500Hz, 2G 12min./1cycle, period for 60min. each along X, Y, Z axesSAFETY STANDARDS:UL879, UL1310 Class 2, CAN/CSA C22.2 No. 223-M91, IP67 approved ; design refer to TUV EN60950-1, EN61347-2-13WITHSTAND VOLTAGE:I/P-O/P:3KVACISOLATION RESISTANCE:I/P-O/P:>100M Ohms/500VDC/25/70% RHEMI CONDUCTION & RADIATION:Compliance to EN55022 (CISPR22) Class BHARMONIC CURRENT:Compliance to EN61000-3-2 Class A,EN61000-3-3
Features
1) Constant voltage mode power supply
2) Universal AC input , Full range
3) Epoxy encapsulated with IP67 level
4) Withstand 300VAC surge input for 5 seconds
5) 100% full load burn-in test
Specification
Brand : MEAN WELL
EAN : 6959687377636
ProductGroup : Home Improvement
ProductTypeName : HOME_LIGHTING_ACCESSORY
Size : 118x35x26mm

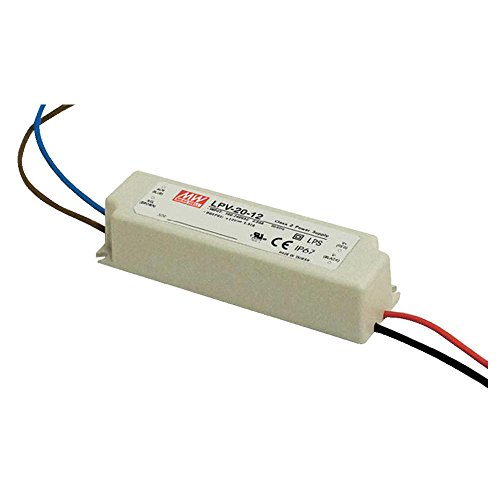

Title : MW Mean Well LPV-20-12 LED Driver 20W 12V IP67 Power Supply Waterproof
