Specification
Brand : GODIYMODULES
BulletPoint : Type:other
BulletPoint1 : Virtual Oscilloscope Logic Analyzer I2C SPI CAN Uart Full-featured Signal Generator 16MHz
BulletPoint2 : Supported Protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, for Asynchronous, 1-Wite, PS/2
BulletPoint3 : Input voltage: 0V-5.3V
BulletPoint4 : USB2.0 high speed 480Mbps
BulletPoint5 : 8-bit digital channel + 1-bit analog channel logic analyzer, supporting multiple protocols
Color : Black
IncludedComponents : 1pcs module
ItemName : Virtual Oscilloscope Logic Analyzer I2C SPI CAN Uart Full-Featured Signal Generator 16MHz
ItemPackageDimensions_Height : 17.9 centimeters
ItemPackageDimensions_Length : 4 centimeters
ItemPackageDimensions_Width : 10.4 centimeters
ItemTypeKeyword : logic-analyzers
Manufacturer : GODIYMODULES
MeasurementAccuracy : 1
ModelName : Wisoquagbpgeun3q
ModelNumber : WALFRONTt4qio1cgux
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LHT00SU1-001
ProductDescription :

Features:

Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)

8-Channel Logic Analyzer

data logger

Dual Channel Voltmeter

Mixed Signal Oscilloscopes and Logic Analyzers

frequency meter

remote control

PWM controller

frequency generator

I2C controller

Pulse/Edge Counter

8-bit digital channel + 1-bit analog channel logic analyzer, supporting multiple protocols



Numeric parameters:

Number of channels: 8

Input voltage: 0V-5.3V

Input low level: <0.8V

Input high level: > 1.4V

Supported Protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, for Asynchronous, 1-Wite, PS/2



Simulation parameters:

Number of input channels: 2 channels

Sampling channel: 1 channel

Maximum sampling frequency: 16MHz

Maximum analog bandwidth: 3MHz

Input Voltage Range: -10V to +10V

Sensitivity: 78mV

Maximum vertical resolution: 256 levels

Communication interface parameters:

USB parameters: USB2.0 high speed 480Mbps



System Requirements:

Supported OS for Win2000/XP/Vista/WIN7(32bit)

for Celeron 4 2.0G or Pentium 4 1.8G processor

Requires USB2.0 high-speed interface, does not support full-speed USB2.0 or USB1.1

Memory requirements 128M or higher

2G or more hard drive required

You need to install for Framework 3.5 SP1



Note: If your system is WINDOWS XP, please check if your computer has this component for ".NET 3.5 SP1", if not, please go to Microsoft website to download and install it.

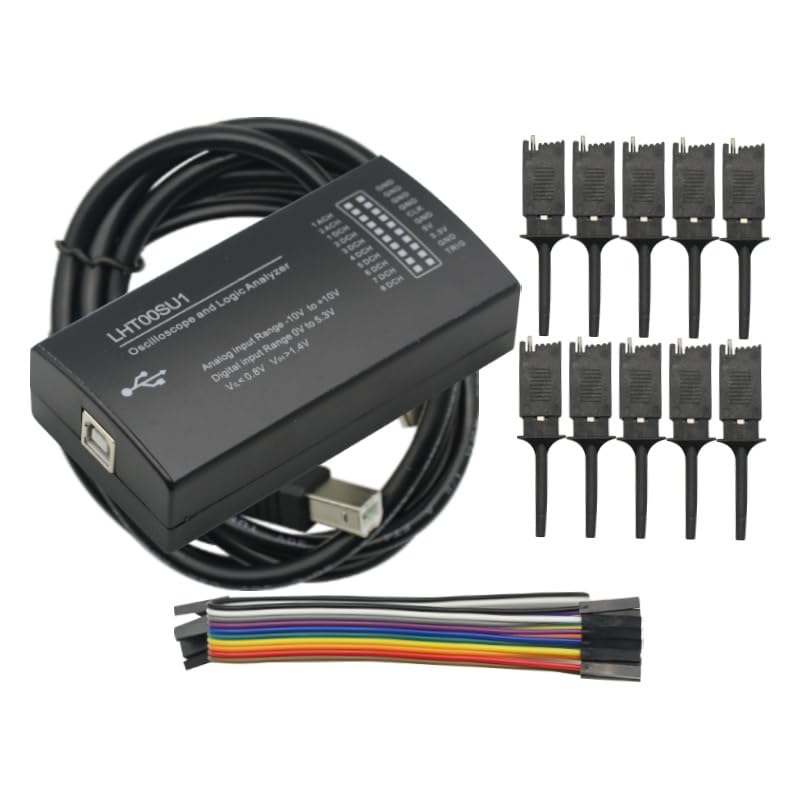

Package Included:

1 x machine

1 x Test Clip Wire (with 10 Test Clips)

1 USB cable
