Specification
Brand : Yanmis
BulletPoint1 : 16G Sample Depth:Sample depth up to 16G in transmission mode, support 3 channels 100MHz, 6 channels 50MHz, 12 channels 25MHz and 16 channels 20MHz.
BulletPoint2 : Buffer mode: 256 Mbits built-in SDRAM memory, supports the following buffer modes, 400 MHz 4 channels, 200 MHz 8 channels, 100 MHz 16 channels.
BulletPoint3 : Operating system compatibility: The logic analyzer supports , OS X, and Linux, and DSView supports nearly 100 protocol decoders.
BulletPoint4 : Adjustable Threshold: USB 2.0 C type interface with adjustable threshold (0.1 step), coupled with a shielded flying cable and one-piece aluminum shell, can get better and cleaner waveforms.

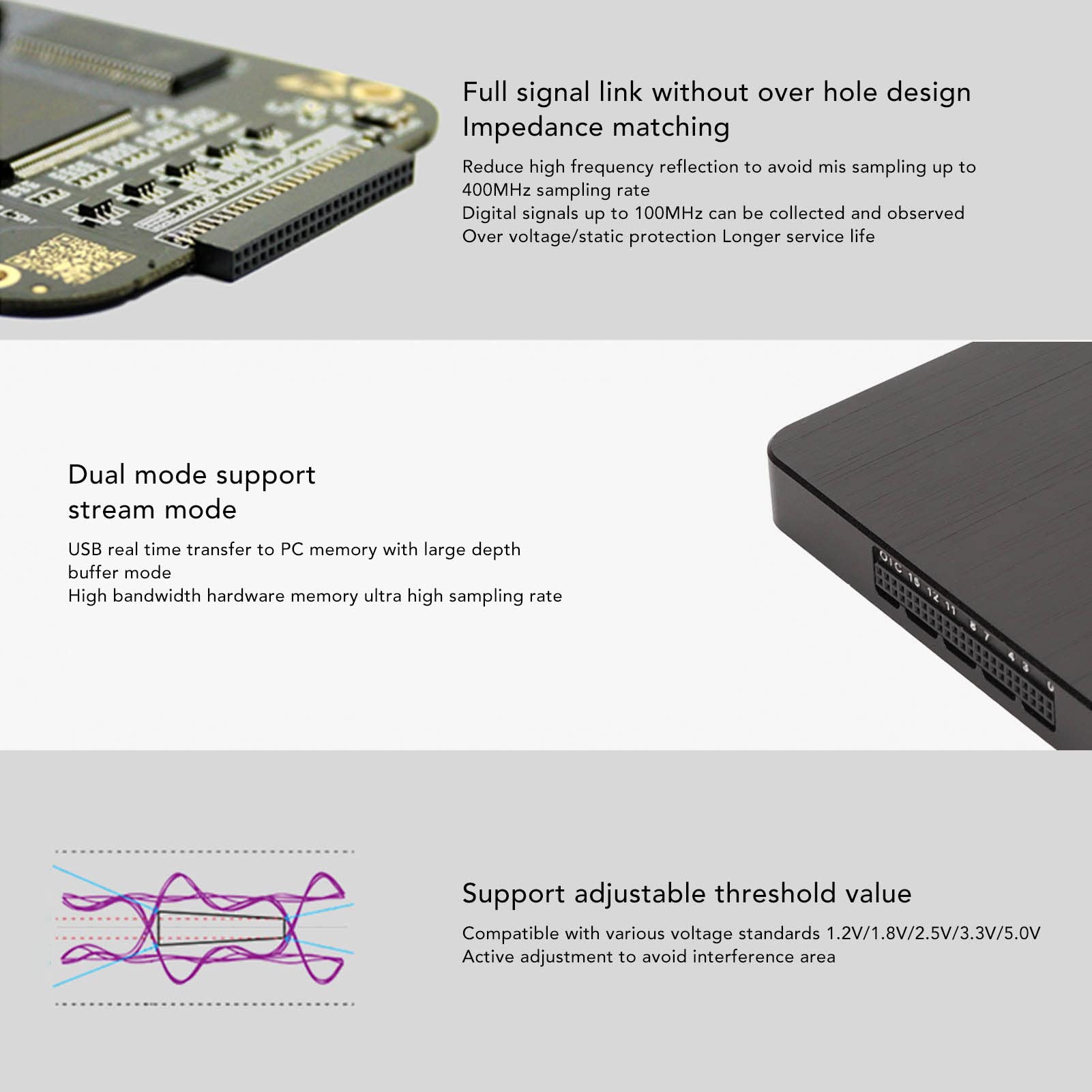

BulletPoint5 : Dual mode support: in transmission mode, data is captured in real time and transferred to PC memory, where long-time samples are obtained; In buffer mode, data is captured and temporarily stored in the integrated memory, where high sampling rates are obtained.
IncludedComponents : DDS Signal Generator
ItemName : USB Logic Analyzer Device, Sample Depth 16G Logic Analyzer 16 Channels 256 Mbits on SDRAM Memory Board Compatible with, for OS X
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 19 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemTypeKeyword : logic-analyzers analizadores-lógicos
Manufacturer : Yanmis
MeasurementAccuracy : 0.5%
ModelNumber : Yanmisqh3nc6doai
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Yanmisqh3nc6doai
ProductDescription : 1. Dual mode support: In transmission mode, data is captured in real time and transferred to PC memory, where long-life samples are obtained; in buffer mode, data is captured and temporarily stored in the integrated memory, where high sample rates are obtained.
2. 16G Sample Depth: Up to 16G sample depth in transmission mode, support 3 channels 100MHz, 6 channels 50MHz, 12 channels 25MHz, 16 channels 20MHz.
3. Buffer mode: 256 Mbits built-in SDRAM memory, supports the following buffer modes, 400 MHz 4 channels, 200 MHz 8 channels, 100 MHz 16 channels.
4. Adjustable Threshold: USB 2.0 C type interface with adjustable threshold (0.1 step), coupled with a shielded flying cable and one-piece aluminum shell, can get better and cleaner waveforms.
5. Operating system compatibility: The logic analyzer supports , OS X, and Linux, and DSView supports nearly 100 protocol decoders.

Specification:
Item Type: 16 Channel USB Logic Analyzer
Material: metal.
Mode: Stream, Buffer
Maximum Sampling Rate:
Buffer mode: 400M 4 channels, 200M 8 channels, 100M 1 6 channels
Stream mode: 100M 3 channels/50M 6 channels, 25M 12 channels, 20M 1 6 channels
Maximum depth: 16G flow, 256M buffer
Hardware memory: 256 Mbits
Host interface: Type-C
Input Supported Voltage: -30V-30V
Threshold Voltage: 0-5V
Support: For , for OS X, for Linux

How to use:
Plug and play

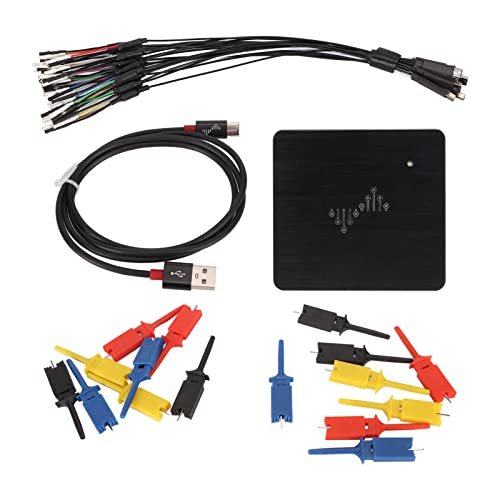

Packing list:
1 x Logic Analyzer
1 x Type C Cable
6 x Cable
16 x Signal Clip
1 x user manual (English language not guaranteed).
>
