Specification
Brand : GODIYMODULES
BulletPoint1 : Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz
BulletPoint2 : Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
BulletPoint3 : The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
BulletPoint4 : Input Impedance: 1Mohm || 10pF (typical, approximate)
BulletPoint5 : More powerful and better than oscilloscope in digital analysis.

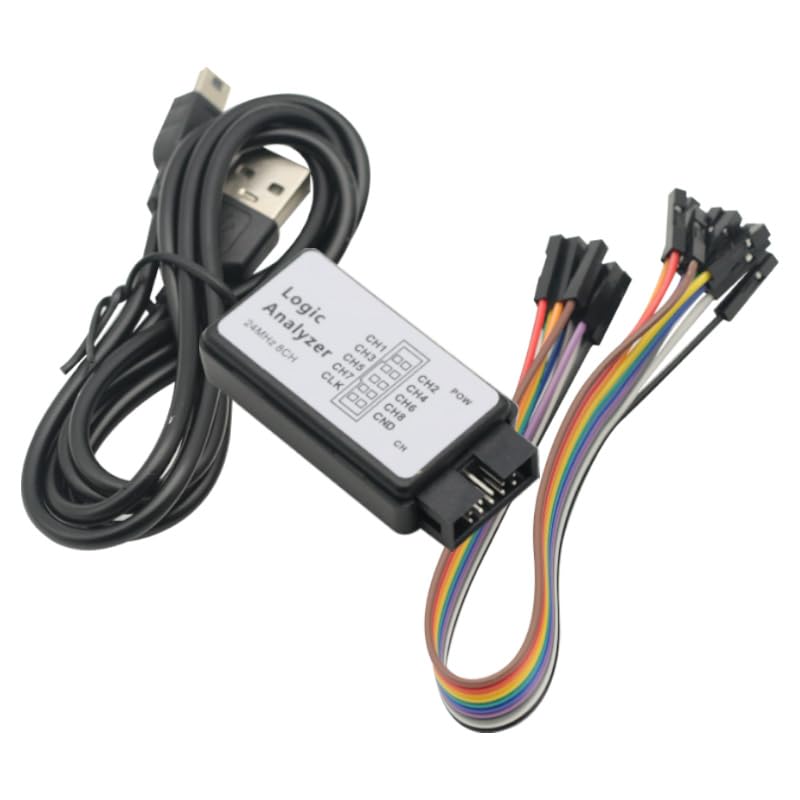

IncludedComponents : 1X Analyser Device, 1X USB Cable, 10X Dupont Line
ItemName : USB Logic Analyzer 24MHz 8 Channel 24M/Seconds Logic Analyzer Debugger for ARM FPGA Logic Analyzer Logic 24M 8CH Module
ItemPackageDimensions_Height : 14.4 centimeters
ItemPackageDimensions_Length : 2.4 centimeters
ItemPackageDimensions_Width : 9.6 centimeters
ItemTypeKeyword : logic-analyzers
Manufacturer : GODIYMODULES
ModelNumber : Genericbtwg6u5z7y
PartNumber : Genericbtwg6u5z7y
ProductDescription : Descriptions:
Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
8-channel;
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).

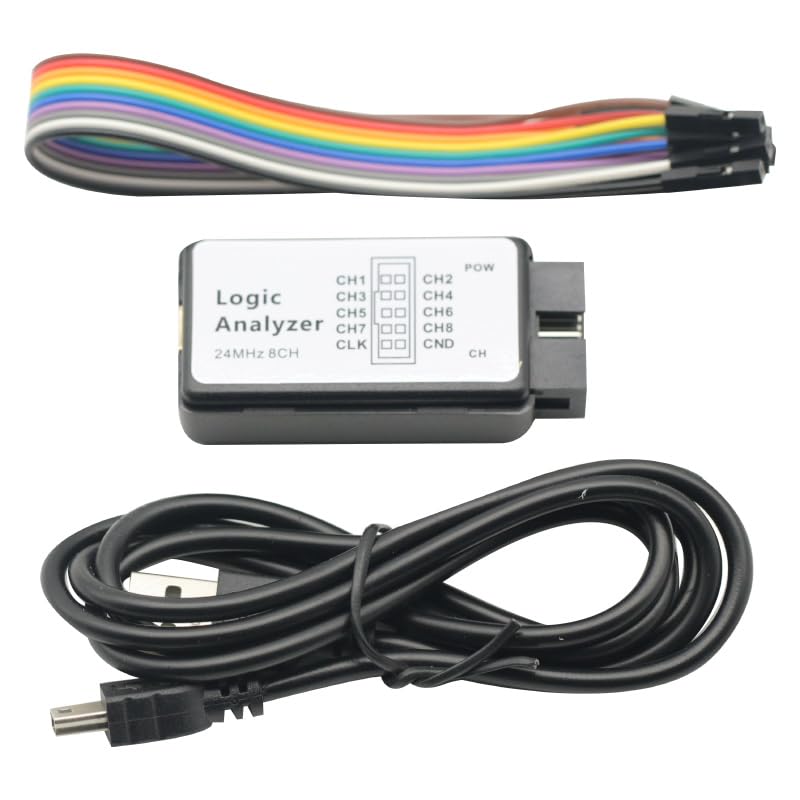

Package included： Analyser Device*1
USB Cable*1
Dupont Line*1

ProductSiteLaunchDate : 2024-07-14T00:50:19.265Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
WarrantyDescription : 2 Year Manufacturer
