Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : PROVA

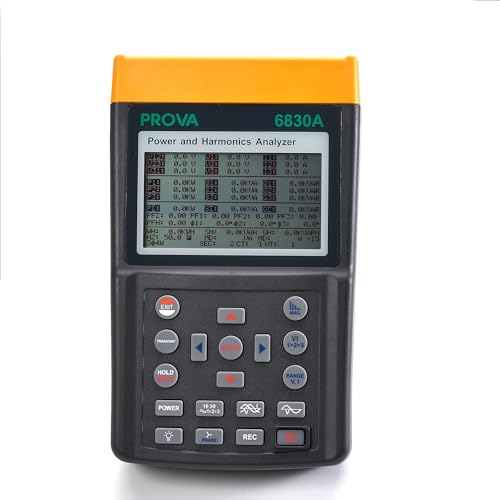

BulletPoint1 : ■PROVA 6830A+6801 Power & Harmonics Analyzer is a Power Quality Analyzers (3-Phase)
BulletPoint2 : ■Power Analysis for Active Power Apparent Reactive Power Power Factor (PF) Phase Angle (Φ) Energy
BulletPoint3 : ■ AC Current (0.04A to 100A) and Voltage measurement: True RMS, Auto Range.
BulletPoint4 : ■ Display of 35 Parameters in One Screen ■Harmonic Analysis to the 99th Order
BulletPoint5 : ■Calculated Unbalanced Current through Neutral Line■Software with PC via RS-232C
Color : Grey
Hazmat1 : UN1993

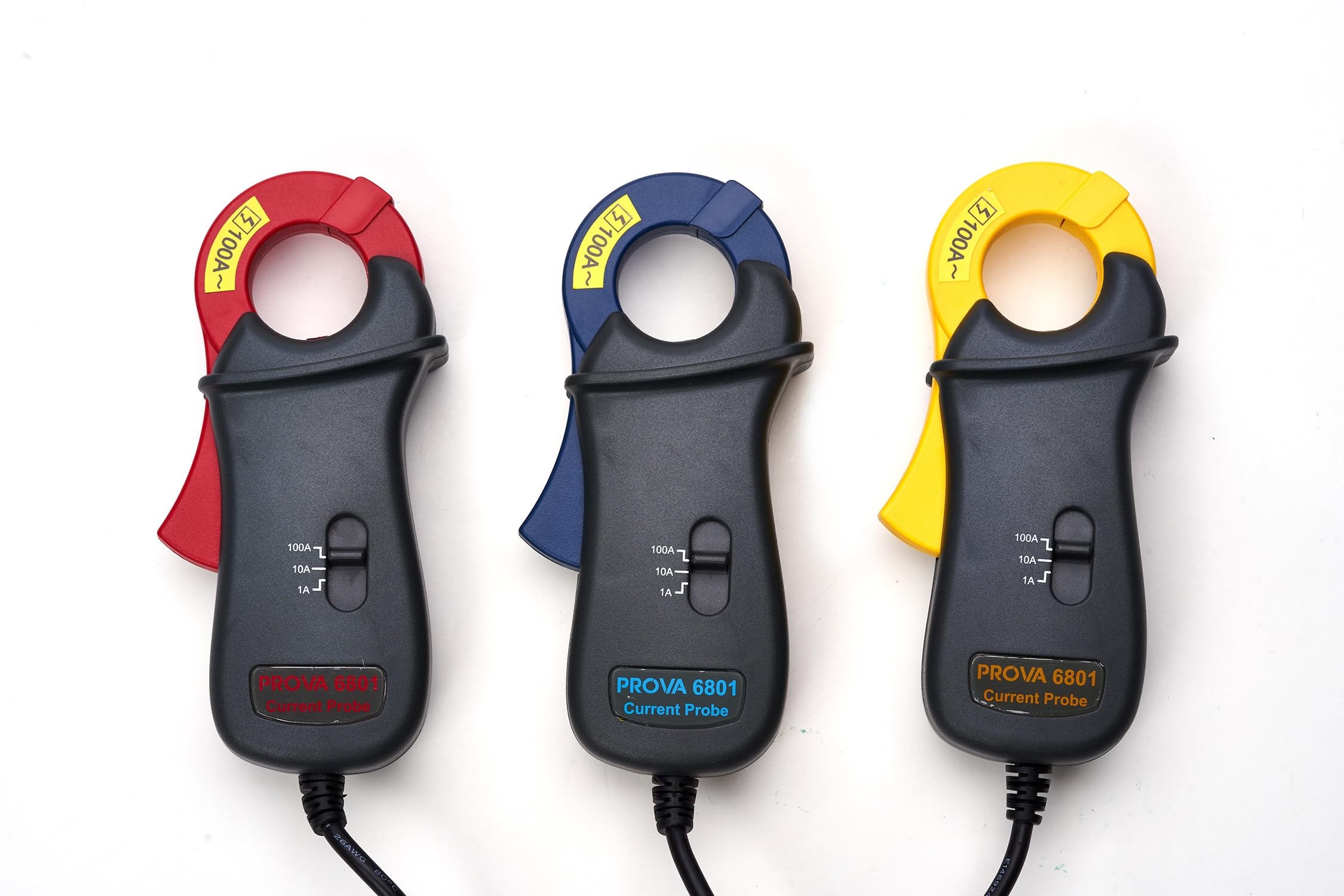

IncludedComponents : PROVA-6830A+6801
ItemName : Taiwan Quality PROVA 6830A Power & Harmonics Analyzer 100A High Accuracy True RMS Active Reactive and Apparent Power Harmonic Detector Harmonic Analysis Auto Range RS-232C Interface(6830A+6801)
ItemPackageDimensions_Height : 16 centimeters
ItemPackageDimensions_Length : 21 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : logic-analyzers
LowerTemperatureRating : -15 degrees_celsius
Manufacturer : PROVA INSTRUMENTS INC.
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : 0.1%
ModelName : Hilitandd19yi24w5t
ModelNumber : PROVA-6830A+6801
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : PROVA-6830A+6801
PowerSourceType : Battery Powered
ProductDescription : Taiwan Quality PROVA 6830A Power & Harmonics Analyzer 100A High Accuracy True RMS Active reactive and apparent power harmonic detector harmonic analysis Auto Range RS-232C interface
■ Power Analysis for 3P4W, 3P3W, 1P2W, 1P3W
■ True RMS value (V123 and I123)
■ Active Power (W, KW, MW, GW)
■ Apparent and Reactive Power (KVA, KVAR)
■ Power Factor (PF), Phase Angle (Φ)
■ Energy (WH, KWH, KVARH, PFH)
■ AC Current (0.04A to 100A) and Voltage measurement: True RMS, Auto Range
■ Capable of analyzing IT standby power consumption to the maximum demand of a factory
■ Display of 35 Parameters in One Screen (3P4W)
■ Programmable CT (1 to 600) and PT (1 to 3000) Ratios
■ Display of Overlapped Voltage and Current Waveform
■ Average Demand (AD in W, KW, MW)
■ Maximum Demand (MD in KW, MW, KVA, MVA) with Programmable Period
■ Harmonic Analysis to the 99th Order
■ Display of 50 Harmonics in one Screen with Waveform
■ Display of Waveform with Peak Values (1024 Samples / Period)
■ Analysis of Total Harmonic Distortion (THD-F)
■ Graphic Phasor Diagram with 3 Phase System Parameters
■ Capture 28 Transient Events (Time + Cycles) with Programmable Threshold (%)
■ DIP, SWELL, and OUTAGE are included in transient events.
■ 3 Phase Voltage or Current Unbalance Ratio (VUR, IUR)
■ 3 Phase Voltage or Current Unbalance Factor (d0%, d2%)
■ Calculated Unbalanced Current through Neutral Line (In)
■ 512K Memory with Programmable Interval (Sampling time from 2 to 3000 seconds, 17,000 records for 3P4W system)
■ Output of Waveform, Power Parameters and Harmonics at Command
■ Large Dot Matrix LCD Display with Backlight
■ Software to work with PC via Optical Isolated RS-232C to USB Interface
ProductSiteLaunchDate : 2024-05-30T06:55:08.685Z
Size : PROVA-6830A+6801
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : ISO 9001
SpecificationMet4 : UL
SupplierDeclaredDgHzRegulation : transportation
UnitCount : 1
UnspscCode : 43222600
UpperTemperatureRating : 55 degrees_celsius
Wattage : 9 watts
